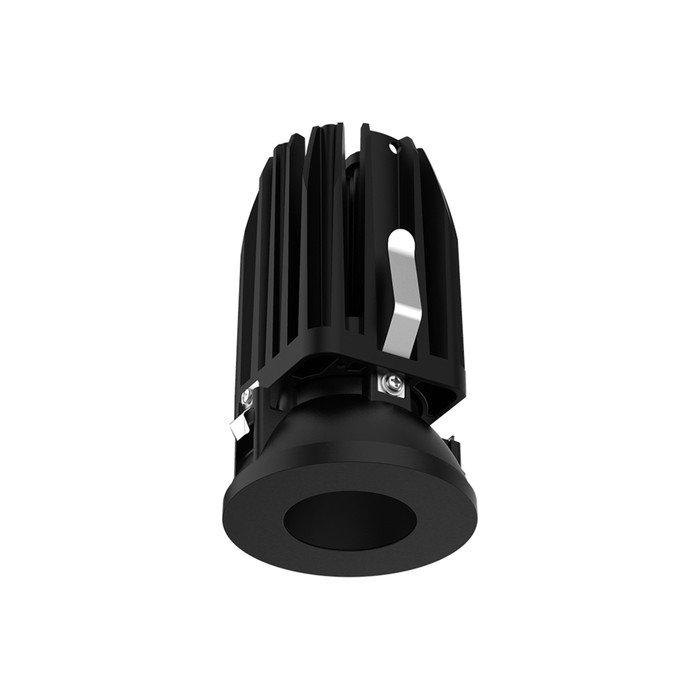

WAC Lighting R2FRP 2" Round Pinhole Trim with LED Light Engine
The WAC Lighting R2FRP is a 2" round pinhole trim from the FQ Recessed series, pairing a durable die-cast aluminum trim and heat sink with a field-replaceable LED light engine. Delivering 25W of output at 120-240-277V with a 90 CRI and a 50,000 hour average rated life, this trim features 30° glare-control shielding, 35° vertical tilting, and 360° horizontal rotation for precise aiming. It is ETL & cETL rated for Wet locations and Title 24 compliant, making it suited for both residential and commercial recessed lighting projects.
Key Features
- Trade Size: 2" round pinhole trim for compact recessed LED applications.
- Durable Construction: Die-cast aluminum trim with an integrated aluminum heat sink for strength and heat dissipation.
- Field-Replaceable Light Engine: LED light engine is spring-mounted directly to the trim for easy servicing and replacement.
- Glare Control & Adjustability: 30° shielding with 35° vertical tilting and 360° horizontal rotation for uniform floor-to-ceiling wall washing.
- Field-Changeable Beam Angle: Includes reflectors for adjustable beam control, with a 23° beam spread.
- Electrical Rating: 25W LED module operating at 120-240-277V, dimmable via 0-10V, ELV, or TRIAC controls.
- Color Rendering: 90 CRI light engine for accurate, true-to-life color rendering.
- Rated Life: 50,000 hour average rated life for long-term, low-maintenance operation.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Rated for Wet Locations
- Title 24 Compliant
Technical Specifications
- Bulb Base: LED Module - Universal Driver
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Collection: FQ
- Dimmable: 0-10V,ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Product Type: Recessed Trims
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: 2" LED
- Avg Rated Hours: 50000
- CRI: 90
- Beam Spread: 23
- Voltage: 120-240-277
- Country of Origin: China
- Location Rating: Wet
- Total Wattage: 25
- Style: Modern; Transitional
Typical Applications
- Residential and Commercial Recessed Lighting
- Wet-Location Installations, including Bathrooms and Covered Outdoor Areas
- Accent and Floor-to-Ceiling Wall Wash Lighting
- Modern and Transitional Interior Design
- New Construction and Recessed Downlighting Retrofits
Why WAC Lighting?
WAC Lighting builds the FQ Recessed series around a die-cast aluminum trim and heat sink, a spring-mounted light engine for straightforward servicing, and ETL & cETL Wet location ratings backed by Title 24 compliance. With a 5 Year Functional and 2 Year Finish warranty, the R2FRP delivers code-compliant, long-lasting performance for professional lighting installations.
Manufacturer Resources
Specification Sheet
Product Specs
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- FQ
- Dimmable:
- 0-10V,ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Product Type:
- Recessed Trim
- Safety Rating:
- ETL;cETL
- Subcategory:
- 2" LED
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- 23
- Product Voltage:
- 120-240-277
- Product Material:
- Die-Cast Aluminum
- Location Rating:
- Wet
- Total Wattage:
- 25
- Product Style:
- Modern; Transitional
- Department:
- Electrical
- Product Group:
- Lighting
- Product Subgroup:
- Recessed Lighting
WAC Lighting R2FRPL-927-BK – Frequently Asked Questions
1) Can the WAC Lighting R2FRP 2-inch pinhole trim be used in a shower or under a covered patio?
Yes. The R2FRP carries a Wet location rating and is ETL and cETL listed, so it can go in shower and tub areas or under a covered exterior soffit. Note it is hardwired, not a plug-in fixture, so it needs a branch circuit run to the housing.
2) Will the R2FRP pinhole trim run on a 277V commercial circuit?
It will. The LED module is a universal driver type rated 120-240-277V, so the same trim works on residential 120V and on 277V lighting branch circuits in commercial buildings. That lets a spec writer standardize one trim across a mixed-voltage project.
3) What dimmer types work with the WAC R2FRP LED trim?
The driver accepts 0-10V, ELV, and TRIAC dimming. On a residential job a forward/reverse-phase TRIAC or ELV wall dimmer will do it; on a controls-based commercial system use the 0-10V input. Match the dimmer to the control scheme you already have rather than adding a second protocol.
4) What is the difference between the trimmed and trimless versions of the R2FRP?
Both are the same 2-inch round pinhole aperture with the same 25W light engine. The trimmed version lands a visible flange on the ceiling surface, which covers a rough or oversized cut. The trimless version is meant to be mudded into the ceiling for a flush, flangeless aperture, so it needs a clean drywall finish and plaster work at the opening. If the ceiling is already finished or you are retrofitting, the trimmed option is the easier install.
5) Which color temperatures does the R2FRP pinhole trim come in, and what does the 3000-1800 option do?
Five choices: 2700K, 3000K, 3500K, 4000K, and a 3000-1800 warm-dim option that shifts from 3000K down toward 1800K as it is dimmed, the way an incandescent lamp warms up. For hospitality and residential spaces where guests dim the lights low, the warm-dim option reads more natural. For retail or healthcare where color consistency matters, pick a fixed CCT. All five come in Black, Dark Bronze, and White.
6) Is the 23 degree beam on this 2-inch pinhole trim right for wall washing or for accent?
23 degrees is a narrow-to-medium spread, which suits accent work on art, millwork, and architectural features. For floor-to-ceiling wall wash the trim relies on its 35 degree vertical tilt and 360 degree horizontal rotation to aim the beam down the wall, and field-changeable reflectors are included if you need to alter the beam control. The 30 degree shielding keeps the source out of sight lines at normal viewing angles.
7) Do I need to buy LED lamps separately for the WAC R2FRP trim?
No lamps to order. The LED light engine ships with the trim and is spring-mounted directly to it, and because it is field-replaceable a maintenance tech can swap the engine later without pulling the trim assembly out of the ceiling. For an MRO stockroom that means one spare engine covers the fleet instead of a lamp SKU per fixture.
8) Does the WAC R2FRP meet California Title 24 for recessed lighting?
Yes, the R2FRP is Title 24 compliant, which matters on California jobs where recessed luminaires have to be listed for the application and dimmable. It is not Energy Star rated, so if a rebate program specifically requires Energy Star certification this trim will not qualify for it.
9) Will the R2FRP match other 2-inch trims I already have in the building?
The R2FRP is part of WAC Lighting's FQ Recessed series in the 2-inch LED aperture size, so it shares the FQ platform with the other trim styles in that family and comes in Black, Dark Bronze, and White to match existing apertures. If your existing openings are a different trade size, the 2-inch aperture will not drop into them.
10) Is the R2FRP trim durable enough for high-use commercial ceilings, and how long will it last?
The trim and heat sink are die-cast aluminum rather than stamped steel or plastic, so the housing carries heat away from the diodes instead of trapping it. Rated life is 50,000 hours average, which at 12 hours a day is over 11 years of service. The 90 CRI engine is high enough for retail, gallery, and hospitality spaces where skin tones and finishes need to read correctly.
11) How much load does each R2FRP pinhole trim put on the circuit?
Each trim draws 25W total. That figure is what you use to size the branch circuit and, more often, to check the minimum and maximum load on the dimmer you are pairing it with, since low-load LED counts on a phase-cut dimmer are where flicker shows up.
