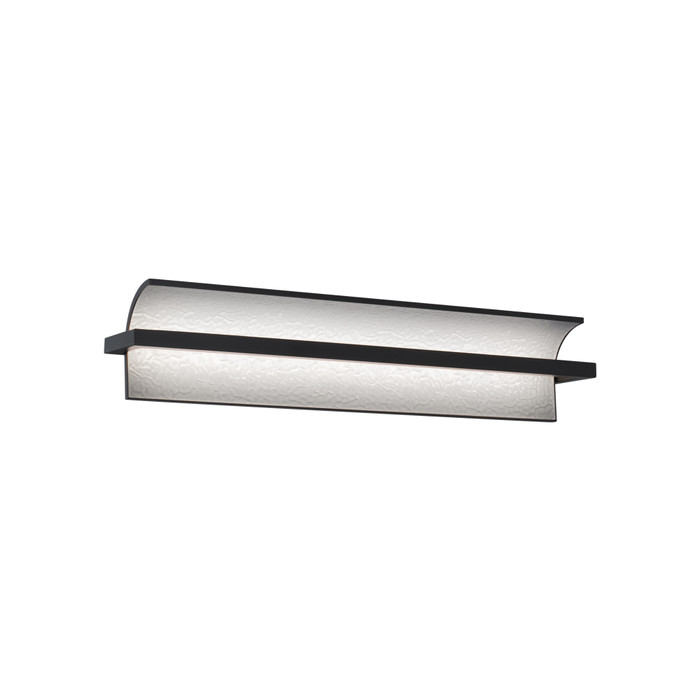

WAC Lighting WS-795 Shard 4-CCT LED Bath Vanity & Wall Light
The WAC Lighting WS-795 Shard 4-CCT LED Bath Vanity & Wall Light pairs a slim aluminum bar with a curved, patterned acrylic reflective panel for a soft, translucent glow ideal for bath vanity and wall applications. Built-in 4-CCT color temperature adjustability lets you select or field-switch between 2700K, 3000K, 3500K, and 4000K, while the concealed universal voltage driver (120V-220V-277V) and included decorative conversion plate simplify installation on a standard 4" junction box. ETL and cETL listed for damp locations, this fixture delivers smooth ELV/TRIAC dimming and a high-CRI, long-life LED module suited to professional installations.
Key Features
- Selectable Color Temperature: Built-in 4-CCT adjustability spans 2700K/3000K/3500K/4000K, with the option to pre-select or adjust color temperature in the field.
- Universal Voltage Driver: A 120V-220V-277V driver is concealed in the backplate; a decorative conversion plate is included to accommodate a standard 4" junction box.
- Smooth Dimming: Compatible with electronic low voltage (ELV) or TRIAC dimmer options for continuous, flicker-free dimming.
- High-Performance LED Module: Replaceable module delivers 90 CRI and a 50000-hour rated life with selectable 2700-3000-3500-4000K color temperature.
- Durable Construction: Aluminum hardware frames a patterned, textured acrylic reflective surface for a warm, diffused glow.
- Flood Beam Spread: Broad, even light distribution suited to vanity and wall-wash applications.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Rated for Damp Locations
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - Universal Driver
- Bulbs Included: Yes
- Collection: Shard
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Product Type: Indoor Wall Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 2 Years Finish
- Subcategory: Bath Vanity & Wall Light
- CRI: 90
- Beam Spread: Flood
- Voltage: 120-240-277
- Country of Origin: China
- Style: Modern;Transitional
- Mounting: Wall;Any
Typical Applications
- Bathroom Vanity Lighting
- Interior Wall Sconce Installations
- Damp-Location Residential and Commercial Spaces
- Modern and Transitional Interior Design
- Hospitality and Multifamily Bath Lighting
Why WAC Lighting?
WAC Lighting builds the Shard Bath Vanity & Wall Light around a concealed universal voltage driver, a replaceable high-CRI LED module rated for 50000 hours, and ETL/cETL damp-location listing, giving specifiers a durable, code-compliant fixture backed by a 5-year functional and 2-year finish warranty for reliable, long-term performance.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - Universal Driver
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Shard
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Product Type:
- Indoor Wall Lighting
- Safety Rating:
- ETL;cETL
- Subcategory:
- Bath Vanity & Wall Light
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120-240-277
- Product Material:
- Aluminum
- Location Rating:
- Damp
- Product Style:
- Modern;Transitional
- Mounting Method:
- Wall;Any
- Department:
- Electrical
WAC Lighting WS-79524-27-BK – Frequently Asked Questions
1) Can the WAC Shard WS-795 vanity light be installed over a shower or in a wet location?
No. The Shard WS-795 carries a damp location rating only, so it works over a vanity, in a powder room, or on an interior wall where it sees humidity but not direct water. A shower or tub enclosure spray zone needs a wet-rated fixture instead.
2) Will the WS-795 Shard mount to a standard 4 inch junction box?
Yes. The driver is concealed in the backplate and a decorative conversion plate ships with the fixture to cover and adapt a standard 4 inch junction box. It is a hardwired fixture, so you need a box and supply in the wall, not a cord and plug.
3) Do I have to pick a color temperature when I order the Shard WS-795, or can it be changed later?
Both. Orderable color temperatures are 2700K, 3000K, 3500K, and 4000K, and the built-in 4-CCT switch lets you pre-select or change the setting in the field after it is up. For a multifamily or hotel bath package that means one fixture can be set warm in guest baths and cooler in back-of-house without a separate SKU.
4) Can I run the WAC Shard on 277 volts in a commercial building?
Yes. The Shard uses a universal voltage driver rated 120V, 240V, and 277V, so the same fixture goes into a 277V commercial lighting circuit or a 120V residential bath without a separate part number.
5) What dimmer works with the WS-795 Shard LED vanity light?
Use an electronic low voltage (ELV) or TRIAC dimmer. A standard incandescent leading-edge dimmer that is not TRIAC-compatible, or a 0-10V control, is the wrong pairing and is where flicker and drop-out complaints come from. Specify the dimmer family before rough-in so the control wiring matches.
6) Is the WAC Shard WS-795 ADA compliant for a commercial restroom?
No, the Shard WS-795 is not ADA compliant, so it should not be specified where a wall fixture has to meet ADA protrusion limits in a corridor or accessible restroom. It is ETL and cETL listed, which covers the US and Canadian safety listing a specifier typically needs.
7) What lengths and finishes does the Shard WS-795 come in for a double vanity?
Two lengths, 24.25 inches and 34.25 inches, each in Black or Brushed Nickel. For a wide double-sink vanity the 34.25 inch bar is the usual single-fixture choice; two 24.25 inch bars, one over each sink, is the other common layout.
8) Can the LED in the WAC Shard be replaced, or is the whole fixture disposable at end of life?
The LED module is replaceable rather than sealed in, and it is rated 50,000 hours. For an MRO or hotel buyer that matters: the bar, backplate, and acrylic panel stay on the wall and only the module gets swapped. Lamps are included with the fixture, so nothing extra is needed at install.
9) Is the light from the Shard good enough for makeup and shaving at a vanity?
It renders at 90 CRI with a flood distribution through a patterned, textured acrylic panel, so the output is broad and diffused rather than a hot spot. 90 CRI is the level specifiers ask for in bath and grooming spaces for accurate skin tone. Set it to 3000K or 3500K if you want neutral-looking skin and finishes.
10) Can the Shard WS-795 be mounted horizontally and vertically, like flanking a mirror?
Yes. The Shard is listed for wall mounting in any orientation, so a single bar above the mirror or a matched pair run vertically on each side both work. The aluminum frame and concealed backplate driver look the same either way.
11) Is there an installation guide for the WAC Shard WS-795?
Yes, WAC publishes an installation guide for the Shard, available as a PDF on the product record. Worth pulling before rough-in to confirm backplate hole spacing against the junction box you already have in the wall.
