WAC Lighting Vertical Hood Gla...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$48.00
$26.95

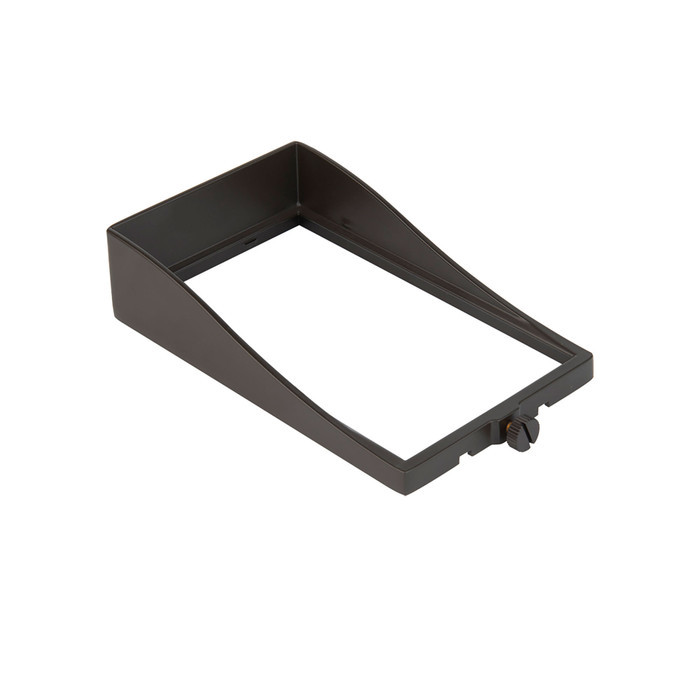

WAC Lighting Vertical Hood Glare Control for WAC Landscape Lighting Adjustable Wall Wash

WAC Lighting Vertical Hood Glare Control for WAC Landscape Lighting Adjustable Wall Wash

(No reviews yet) Write a Review

Model: 5220-VSHR-BK
From the Adjustable Wall Wash Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$48.00
$26.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Modern Forms WS-82006 Double Bubble 1-Light LED Wall Sconce

Sleek, minimal, abstract. Designed like a larger orb possessing a smaller sphere, elegant luminosity is diffused through a laser etched crystal ball. Mount upwards or downwards depending on your desired look and application.
  • Metal body available in a one light (WS-82006) or two light (WS-82015) option. The light evenly diffuses through a laser etched crystal ball.
  • Double Bubble is damp location listed - can be used indoor or in a covered damp area. Can be mounted up or down, providing clean ambient light.
  • Universal Input Voltage Driver (120V-240V-277V) concealed in fixture.
  • Smooth and continuous dimming with an electronic low voltage (ELV) or TRIAC dimmer.
  • High Powered Replaceable LED Module CRI: 90, Rated Hours: 50,000, Color Temp: 3000K
  • Standards: ETL & cETL UL 1598 listed for damp locations. CEC Title 24 Compliant.

Manufacturer Resources

Product Specs

ADA Compliant:
Yes
Collection:
Adjustable Wall Wash
Energy Star:
Yes
Included Components:
Glare Hood, Set Screw
Product Type:
Vertical Hood Glare Control
Safety Rating:
UL, cUL, IP65
Subcategory:
Landscape Accessories
Warranty:
10 Years Functional, Lifetime Warranty on Finish
Product Group:
Outdoor Lighting
Product Subgroup:
Accessories
Hardwired or Portable:
Plugin
Brand Family:
WAC Landscape
Location Rating:
Wet
Base Material:
Brass
Location Indoor/ Outdoor:
Outdoor
Reversible Mounting:
No
Title 24 Compliant:
Yes
Segment:
Lighting
Product Voltage:
12V
Product Length:
3.38"
Product Style:
Functional
Product Height:
1"
Product Category:
Landscape Lighting
Product Width:
3.38"
Department:
Electrical

WAC Lighting 5220-VSHR-BK – Frequently Asked Questions

1) What does the WAC 5220-VSHR vertical hood actually do on a landscape wall wash light?
It's a glare control hood for WAC Landscape Adjustable Wall Wash fixtures. The hood shields the LED source from direct view so people walking past a washed wall see the lit surface, not the lamp. It ships with a set screw to lock it in place on the fixture.
2) Will the 5220-VSHR glare hood fit any landscape light, or only certain WAC fixtures?
It is built for the WAC Landscape Adjustable Wall Wash fixtures, running on 12V low voltage. It is not a universal shroud, so don't plan on it clamping onto another brand's bullet or well light.
3) Can this WAC glare hood stay outside year round in rain and sprinklers?
Yes. The hood is an outdoor part with a wet location rating and is UL, cUL and IP65 rated, so direct rain and irrigation spray are within its rating. The body is brass, which is why it holds up in planting beds and coastal exposure better than painted steel.
4) How much does the vertical hood add to the size of the fixture?
The hood measures 3.38 x 3.38 x 1 inch, with the 1 inch being its height. That matters if the wall wash sits tight against a wall or inside a planter edge, since the hood adds projection to the front of the fixture.
5) What finishes does the WAC 5220-VSHR hood come in, and can I match the fixtures already in my landscape?
Three finishes: Black (5220-VSHR-BK), Bronze (5220-VSHR-BZ) and Bronzed Brass (5220-VSHR-BBR). For a property where the wall wash fixtures are already installed, order the hood in the same finish code as the fixture so the accessory doesn't read as a mismatched part.
6) Can the vertical hood be flipped to shield the other direction?
No. The 5220-VSHR is not reversible mounting, so it installs in one orientation only. If you need the cutoff on a different axis, aim the wall wash fixture head itself rather than trying to invert the hood.
7) Do I need extra hardware or tools to install the 5220-VSHR hood?
The set screw comes with it, so no separate fastener kit is needed. You'll want the hex key that matches that set screw and, depending on the install, nothing else. The hood is a mechanical accessory, so there is no wiring change to the 12V run.
8) Does adding this hood affect Title 24 or ADA compliance on a commercial landscape job?
The 5220-VSHR is listed Title 24 compliant, ADA compliant and Energy Star, so it won't undermine those line items on a spec. It is a passive brass shroud, so it adds no load to the low voltage circuit.
