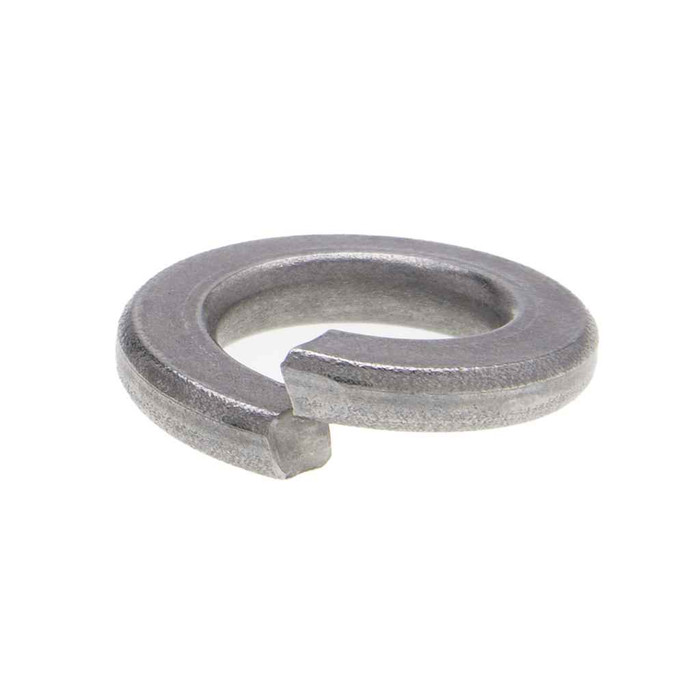

Washers 1/4 Split Lock SS (Jar 50)
Manufacturer Resources
Product Specs
- Ansi:
- ANSI
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Washer Type:
- Lock Washer
- Department:
- Electrical
- Product Subgroup:
- Washers
- Product Length:
- 3 in
- Product Height:
- 2.15 in
- Product Material:
- Stainless Steel
- Product Weight:
- 0.18 lbs
- Product Width:
- 3 in
Metallics JSLW7L – Frequently Asked Questions
1) What bolt size does the Metallics JSLW7L split lock washer fit?
The JSLW7L is a 1/4 inch split lock washer, so it goes under a nut or screw head on 1/4-20 or 1/4-28 hardware. Match the washer size to the bolt diameter, not the wrench size.
2) Are these lock washers stainless steel, and can I use them outdoors or in a damp location?
Stainless steel is the material, which is why electricians reach for these on exterior strut runs, rooftop equipment, wet-location enclosures and coastal work where a plain or zinc washer would rust and seize. Pair them with stainless bolts and nuts so you are not mixing metals in the joint.
3) How many 1/4 inch stainless split lock washers come in a jar of the Metallics JSLW7L?
Fifty washers per jar, packed in a screw-top jar rather than a bag, so it stays closed in a van drawer or on a cart. The filled jar weighs 0.18 lbs and measures 3 x 2.15 x 3 inches.
4) Split lock washer or flat washer for a 1/4 inch bolt in a panel or strut connection?
They do different jobs. The JSLW7L is a split lock washer, a single coil with a gap that springs against the nut to resist loosening from vibration, which is what you want on equipment mounts, strut and anything that shakes. A flat washer spreads load and protects the surface but does nothing about back-off. On soft or oversized holes, plenty of installers run a flat washer against the material and the split lock between it and the nut.
5) Will the JSLW7L washer fit through standard 1/4 inch strut and channel hardware, or do I need the larger-OD version?
It is sized to the bolt, 1/4 inch nominal, so it seats on the bolt shank and bears under a standard 1/4-20 strut nut or hex nut. It is not an oversized or fender-style washer, so if the hole in the material is slotted or larger than the washer OD, add a flat washer to span it.
