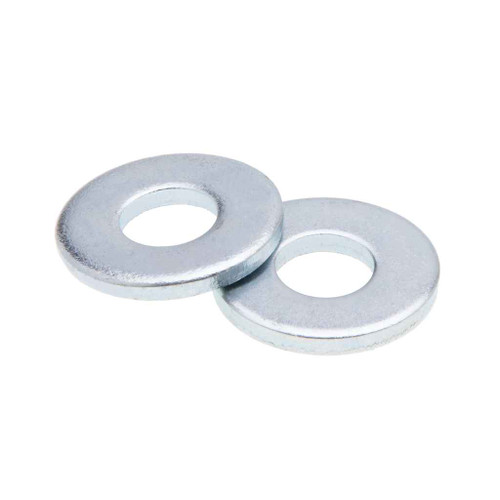

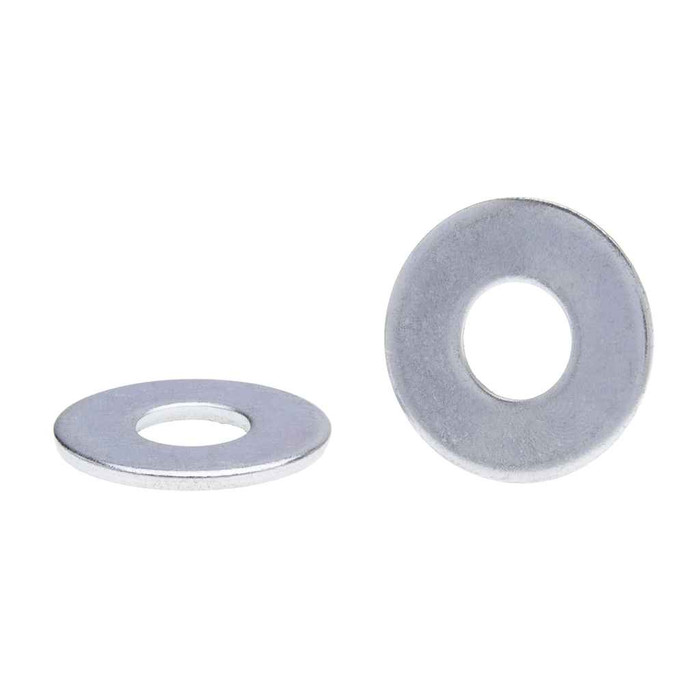

Washers 1/4 USS Flat SS (Jar 100)
Manufacturer Resources
Product Specs
- Ansi:
- ANSI
- Division:
- Electrical H1
- Field Application:
- USS Washers used to improve stress distribution.
- Fits Bolt Size:
- 4-Jan IN
- Inside Diameter:
- 0.327-0.307 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Washer Thickness:
- 0.080-0.051 IN
- Washer Type:
- USS Flat Washer
- Department:
- Electrical
- Product Subgroup:
- Washers
- Product Finish:
- Stainless Steel
- Product Length:
- 3 in
- Product Color:
- Stainless Steel
- Product Height:
- 2.15 in
- Product Material:
- Stainless Steel
- Product Weight:
- 0.34 lbs
- Product Width:
- 3 in
- Product Depth:
- 0.080-0.051 in
Metallics JWW80SS – Frequently Asked Questions
1) Are these 1/4 inch washers stainless steel, or just stainless plated?
Solid stainless steel. Material, finish, and color on the JWW80SS are all stainless, not a plating over carbon steel, so they hold up outdoors and in wet or washdown areas without the rust bleed you get from zinc-plated washers.
2) What is the difference between a USS flat washer and an SAE washer for 1/4 inch hardware?
USS washers, like the JWW80SS, have a larger outside diameter than SAE washers of the same bolt size, so they spread load over more surface. That is the point of them: USS pattern washers are used to improve stress distribution. If you are bolting into sheet metal, strut, wood, or any soft or slotted material, the USS pattern is the one you want. If the washer has to sit inside a tight counterbore or under a small flange, an SAE washer is the better fit.
3) How many washers come in a jar of Metallics JWW80SS?
100 pieces per jar. The jar packaging is the practical part for a service van or a job box, since it keeps the count contained instead of loose in a tray. Jar weight is 0.34 lbs.
4) Will a flat washer alone keep a 1/4 inch bolt from backing out under vibration?
No. A flat washer like the JWW80SS distributes load across the clamped surface, it does not resist loosening. On vibrating equipment, fan housings, or motor mounts you still need a lock washer, a nylon-insert lock nut, or thread locker in addition to the flat washer.
5) How thick is the Metallics JWW80SS washer?
Thickness runs 0.051 to 0.080 inch. Worth knowing if you are stacking washers under a nut and counting thread engagement, or if the fastener has to seat in a shallow recess.
