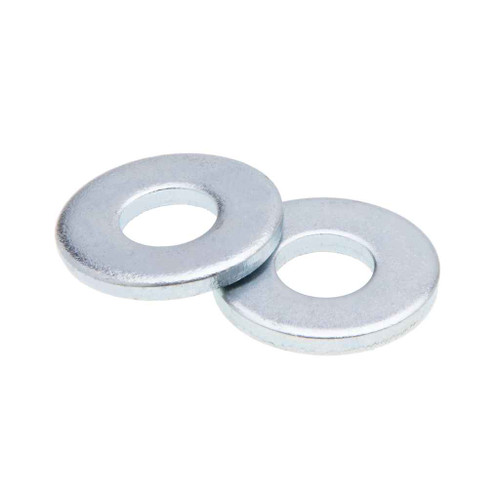

Washers 1/4 USS Flat St-zn (Jar 1000)
Manufacturer Resources
Product Specs
- Ansi:
- ANSI
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Washers
- Product Length:
- 4.5 in
- Product Height:
- 7.25 in
- Product Material:
- Steel Zinc
- Product Weight:
- 6.15 lbs
- Product Width:
- 4.5 in
Metallics JWW80M – Frequently Asked Questions
1) What size bolt does the Metallics JWW80M flat washer fit?
The JWW80M is a 1/4 inch USS flat washer, so it pairs with 1/4-20 bolts, screws, and threaded rod. USS pattern means a wider outside diameter and a larger hole than the SAE pattern in the same nominal size, which is what you want when you are spreading load across sheet metal, strut, or wood rather than seating against a machined surface.
2) Are these washers plated for corrosion resistance?
Yes, the material is zinc plated steel. That handles dry indoor and protected electrical work, panel and strut mounting, device boxes, and general MRO fastening. For sustained outdoor exposure, washdown areas, or coastal sites, step up to a hot dip galvanized or stainless washer instead.
3) Should I use a 1/4 USS flat washer or an SAE washer for strut and channel work?
Go USS for strut, channel, sheet metal, and wood. The larger outside diameter bridges the slot or oversized hole and keeps the nut from pulling through. SAE washers are smaller in OD and are the right call when the washer has to fit inside a counterbore or sit on a narrow machined land. The JWW80M is the USS pattern in 1/4 inch.
4) Can I use these flat washers under a nut on 1/4 inch threaded rod hanging conduit or pipe?
Yes. A 1/4 inch USS flat washer under the nut on 1/4-20 rod spreads the clamp load across the hanger or clip and stops the nut digging in. For a vibration prone run, add a split lock washer between the nut and the flat washer; the flat washer alone does not provide locking.
