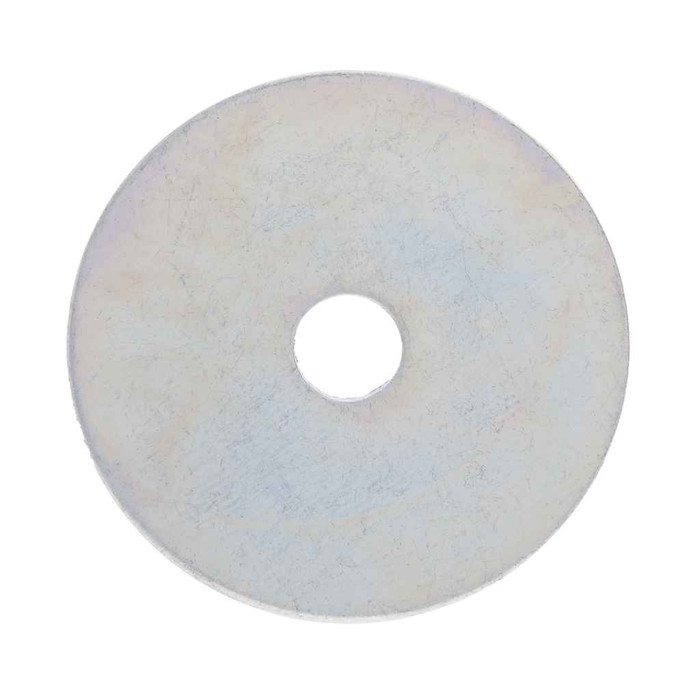

Washers 3/8 x 2 Fender St-zn (Box 1000)
Manufacturer Resources
Product Specs
- Ansi:
- ANSI
- Division:
- Electrical H1
- Pack Type:
- Box
- Product Group:
- Washers
- Sub Division:
- Electrical-E H2
- Department:
- Fasteners
- Product Subgroup:
- Washers
- Product Length:
- 9 in
- Product Height:
- 6.13 in
- Product Material:
- Steel Zinc
- Product Weight:
- 46.35 lbs
- Product Width:
- 9 in
- Product Type:
- Fender Washer
Metallics W123M – Frequently Asked Questions
1) What bolt size does the Metallics W123M fender washer fit?
The W123M is a 3/8 inch fender washer, so it takes a 3/8 inch bolt or threaded rod. The 2 inch outside diameter spreads the load far wider than a standard 3/8 flat washer, which is why it gets used over oversized holes, slotted strut, sheet metal, and soft or hollow substrates where a small washer would pull through.
2) Will a 3/8 x 2 fender washer work on 3/8 threaded rod hanging pipe or conduit?
Yes. The bore is sized for 3/8 inch fasteners, which covers 3/8-16 threaded rod used for conduit and pipe hangers. The 2 inch outside diameter is the usual choice when you are bearing against strut, a channel slot, or an oversized hole and need the load spread out.
3) Are these fender washers plated for outdoor or damp use?
They are steel with a zinc finish. Zinc plating handles indoor, damp, and sheltered exterior work fine, but it is not stainless. For direct weather exposure, coastal air, or chemical contact, step up to a stainless or hot dip galvanized washer instead.
4) How many washers come in a box of the Metallics W123M?
One box holds 1,000 washers. It ships as a box, not a bag or a carded pack, which is the format maintenance shops and electrical contractors stock for repeat use rather than a single job.
5) What is the difference between a fender washer and a standard flat washer in 3/8?
Same bore, much bigger face. A standard 3/8 flat washer has an outside diameter around 1 inch; this one is 2 inches. Use the fender when the hole is oversized or slotted, the material is thin or soft, or you need to clamp against strut without the washer dropping into the channel. Use a standard flat washer when you just need a bearing surface under a nut and a 2 inch disc would be in the way.
6) How much does a box of 1000 of these 3/8 fender washers weigh?
The box comes in at 46.35 lbs, with carton dimensions of 9 x 9 x 6.13 inches. Worth knowing if you are planning shelf space or a one man carry up a ladder, since it is a dense, heavy box for its size.
