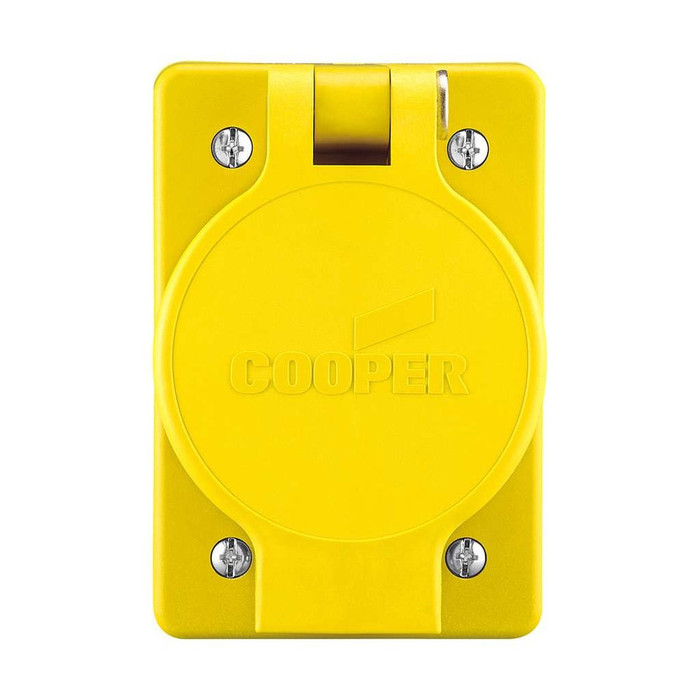

Cooper Wiring Devices Watertight Single Receptacle, 15A 125V NEMA 5-15R

Cooper Wiring Devices Watertight Single Receptacle, 15A 125V NEMA 5-15R

(No reviews yet) Write a Review

Model: 60W47

In Stock (leaves warehouse same day if ordered before 3pm ET)

$129.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Cooper Wiring Devices Watertight Single Receptacle, 15A 125V NEMA 5-15R

The Cooper Wiring Devices Watertight Single Receptacle is a two-pole, three-wire grounding device engineered for demanding electrical installations that require reliable protection against moisture. Rated 15A at 125V with a NEMA 5-15R configuration, this receptacle features a glass-filled nylon housing, nickel-plated brass contacts, and a watertight design suited to wet or damp environments. Back-wire terminals accept #18 - #10 AWG conductors, making it a durable choice for professional electricians and facility maintenance crews alike.

Key Features

  • Electrical Rating: 15A, 125V rating supports standard two-pole, three-wire grounding circuits.
  • NEMA Configuration: 5-15R configuration accepts standard 15A, 125V grounding plugs.
  • Durable Construction: Glass-filled nylon housing resists impact and heat for long-term reliability.
  • Contact Material: Nickel-plated brass contacts deliver a secure, low-resistance connection.
  • Wiring Method: Back Wire terminals accept #18 - #10 AWG wire for a fast, secure termination.
  • Special Features: Watertight construction protects internal components in wet or damp locations.
  • Design Type: Single-style receptacle with a two-pole, three-wire grounding design.
  • Color: Yellow housing improves job-site visibility and identification.

Technical Specifications

  • Contact Material: Nickel-plated brass
  • Receptacle Type: Two-pole, three-wire, grounding
  • Material: Glass-filled nylon
  • Voltage Rating: 125V
  • Number Of Poles: Two-pole
  • Wiring Method: Back Wire
  • Allowable Wire Size: #18 - #10 AWG
  • Amperage Rating: 15A
  • Special Features: Watertight
  • Nema Configuration: 5-15R
  • Style Type: Single
  • Color: Yellow
  • Number Of Wires: Three-wire
  • Design Type: Receptacle
  • list_batch: COOPER-20260730

Typical Applications

  • Residential and Commercial Electrical Wiring
  • Wet and Damp Location Receptacle Installations
  • Outdoor Receptacle Replacement Projects
  • Renovation and New Construction Wiring
  • Watertight Grounding Receptacle Applications

Why Cooper Wiring Devices?

Cooper Wiring Devices builds this watertight single receptacle with a glass-filled nylon housing and nickel-plated brass contacts to withstand the rigors of wet-location electrical work. The two-pole, three-wire grounding design and 15A, 125V, NEMA 5-15R rating make it a dependable, code-appropriate choice for electricians who need consistent performance in moisture-prone environments. Back-wire terminals simplify installation while maintaining a secure, long-lasting connection.

Manufacturer Resources

Product Specs

Contact Material:
Nickel-plated brass
Receptacle Type:
Two-pole, three-wire, grounding
Voltage Rating:
125V
Number Of Poles:
Two-pole
Wiring Method:
Back Wire
Allowable Wire Size:
#18 - #10 AWG
Amperage Rating:
15A
Special Features:
Watertight
Nema Configuration:
5-15R
Style Type:
Single
Number Of Wires:
Three-wire
Design Type:
Receptacle
Product Type:
Single Receptacle
Connection Type:
Back Wire
Product Material:
Glass-Filled Nylon
Product Color:
Yellow
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Receptacles & Outlets

Cooper Wiring Devices 60W47 – Frequently Asked Questions

1) Will the Cooper 60W47 receptacle accept a standard household 15 amp plug?
Yes. The Cooper Wiring Devices 60W47 is a NEMA 5-15R configuration rated 15A at 125V, so it takes the standard three-prong 15A grounding plug used on most 120V cord-connected tools and appliances. It is a two-pole, three-wire grounding device, so the ground pin lands on a real equipment ground.
2) Can I use this Cooper watertight receptacle outdoors or in a wash-down area?
It is built for it. The 60W47 is a watertight single receptacle with a glass-filled nylon housing, intended for wet and damp location work such as outdoor receptacle replacement and moisture-prone industrial spaces. It is a single outlet rather than a duplex, so one device serves one cord.
3) What wire gauge can I land on the Cooper 60W47 terminals?
Back-wire terminals on the 60W47 take #18 through #10 AWG conductors. That covers the 14 and 12 AWG branch circuit wire you will normally be pulling for a 15A, 125V circuit, and it also accepts smaller control-type conductors down to 18 AWG. Termination is back wire, not side screws only.
4) What is the closest 15A 125V single receptacle to the Cooper 60W47 if the opening is a dry indoor location?
The Eaton 816W-BOX is a commercial specification grade single receptacle rated 15A. It is a single-outlet device like the Cooper 60W47, which is a 15A 125V NEMA 5-15R single-style receptacle, but the Cooper part adds watertight construction for wet or damp locations. For a dry interior wall box where moisture protection is not needed, the Eaton single receptacle covers the same single-outlet, 15A duty.
5) What should I specify instead of the Cooper 60W47 for a hazardous or explosionproof area?
The Cooper 60W47 is a watertight 15A 125V NEMA 5-15R receptacle intended for wet or damp locations, which is not the same as a hazardous-location rating. For classified areas, the Appleton FSQC Series interlocked explosionproof receptacle is the device built for that duty, and the Appleton U-Line ECS factory-sealed 15 and 20 amp plug and receptacle set is a 3-pole factory-sealed option.
6) My drawing calls for a 277V device - is the Cooper 60W47 usable?
No. The Cooper 60W47 is rated 125V with a NEMA 5-15R configuration. For 277V work, the Pass & Seymour 5762 is a 15A 277V duplex self-grounding specification receptacle, and the Bryant 430R9W is a 2-pole 3-wire 277V motor-duty receptacle.
7) I need a duplex outlet, not a single. What else does ZenSupply carry in 15A 125V?
The 60W47 is a single-outlet device, so if you need two outlets in one yoke look at the Eaton Arrow Hart heavy-duty industrial duplex receptacle, 15A 125V, 5-15R in gray. Bear in mind that Eaton device is an industrial specification grade duplex, not a watertight device, so it is for dry or protected locations rather than the wet-location work the Cooper unit is built for.
8) What do I use instead of the Cooper 60W47 where sensitive equipment needs an isolated ground?
The Cooper 60W47 is a two-pole, three-wire grounding receptacle, not an isolated-ground device. The Pass & Seymour IG5362-I is a heavy-duty spec-grade isolated ground duplex rated 20A 125V, and the Bryant 21254IGO is a quad straight-blade NEMA 5-20R receptacle rated 20A. Both are 20A devices, so confirm the branch circuit before substituting.
9) Can I use the Bryant 5362B in place of the Cooper 60W47?
Not as a direct swap. The Bryant 5362B is a heavy-duty 20A/125V duplex receptacle, so it is a 20A two-outlet device, while the Cooper 60W47 is a 15A 125V single-style receptacle with a NEMA 5-15R face. Different amperage rating and a different outlet configuration, and the Bryant is not a watertight device.
10) Is the Pass & Seymour Turnlok 3330 an alternative to the Cooper 60W47 for outdoor equipment?
They are different connection systems. The Cooper 60W47 takes a straight-blade NEMA 5-15R plug at 15A 125V. The Pass & Seymour Turnlok 3330 is a 30A non-NEMA single receptacle, so cords must be fitted with the matching twist-lock plug and the amperage is higher. Choose by what the equipment cord already carries.
11) Does the Eaton 6450W single receptacle take the same wire as the Cooper 60W47?
Close but not identical. The Eaton 6450W is a heavy-duty industrial specification grade decorator single receptacle accepting #14-10 AWG. The Cooper 60W47 accepts #18 - #10 AWG on back wire terminals, so it takes smaller conductors as well. The Eaton is also a decorator-style single rather than the Cooper's watertight design.
12) Why is this receptacle yellow, and does the color matter on a job site?
The housing is yellow, which is commonly used to flag a device as different from the standard white or ivory outlets on a wall, handy for temporary power, wet-location circuits, or anything you want crews to spot quickly. Electrically it changes nothing: still 15A, 125V, 5-15R.
13) How durable are the contacts on the Cooper 60W47 for repeated plug cycles?
Contacts are nickel-plated brass, which holds a low-resistance connection and resists corrosion, which matters in the damp locations this device is made for. The body is glass-filled nylon, so it takes impact and heat better than a plain thermoplastic face.
14) What is the exact part number for this Cooper watertight single receptacle?
Order it as Cooper Wiring Devices 60W47. That single model covers the yellow, 15A 125V, NEMA 5-15R watertight single receptacle with back-wire terminals, so there are no finish or configuration choices to specify.
15) Is the Eaton 7379 locking receptacle a substitute for the Cooper 60W47?
No. The Eaton 7379 is an extra heavy duty industrial locking receptacle rated 50A, 600V/250V AC/DC in black. The Cooper 60W47 is a 15A 125V straight-blade NEMA 5-15R single receptacle. The amperage, voltage and plug interface are all different.
16) Is there a receptacle like the Cooper 60W47 that shuts the outlet off on a schedule?
The Cooper 60W47 is a straightforward 15A 125V watertight single receptacle with no control function. If the application needs automatic shutoff, the Pass & Seymour PLT26351 is a heavy duty spec grade plug load timer receptacle rated 20A 125V - note it is a 20A device and does not carry the Cooper's watertight construction.
17) The Cooper 60W47 is yellow - what is a comparable receptacle in a neutral color?
The Cooper 60W47 has a yellow glass-filled nylon housing for job-site visibility. If a less conspicuous device suits the space, the Eaton 5262W heavy-duty industrial duplex is gray and rated 15A 125V with a 5-15R face, and the Bryant 5362BI is a 20A/125V heavy-duty duplex. Neither is a watertight device.
