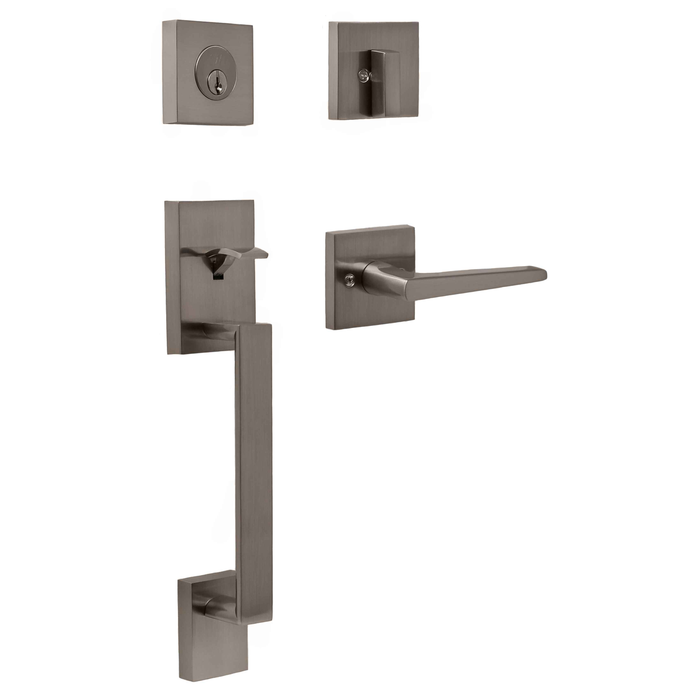

Weslock 2880 Brookside Single Cylinder Handleset with Philtower Lever

Weslock 2880 Brookside Single Cylinder Handleset with Philtower Lever

(No reviews yet) Write a Review

Model: 02880-N7NFR2D
From the Transitional Collection
$234.80
$123.91
Selected Finish is
Selected Trim Design is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$234.80
$123.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WESLOCK BROOKESIDE SINGLE CYLINDER HANDLESET OVERVIEW

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.



Standard features

  • Exceeds ANSI Grade 3 lock standards
  • Weslock 5-pin cylinder Keyway
  • Half moon spindle tubular design
  • Adjustable latches 2-3/8” or 2-3/4” with radius faceplates and strikes
  • Adjusts to door thickness from 1-3/8” to 2-1/4"
  • Entry handle fits doors prepared with 2-1/8” top ( 1-5/8“ optional ) and 2-1/8” bottom cross hole and 1” edge holes
  • Knob/Lever fits door prepared with 2-1/8” cross hole and 1” edge hole
  • Deadbolt fits door prepared with 2-1/8” ( 1-5/8“ optional ) and 1” edge hole
  • Limited 25 Year Mechanical Warranty
  • Limited 5 Year Finish Warranty

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Transitional
Warranty:
Limited 25 Year Mechanical and Limited 5 Year Finish
Collection:
Transitional
Keyed:
Yes
Cross Bore:
2-1/8"
Product Subgroup:
Bored Locksets
Product Type:
Handlesets
Subcategory:
Residential Handlesets
Keyed Function:
Single Cylinder
Commercial/Residential:
Residential
Cylinder and Keyways:
5 Pin Cylinder, Weslock Keyway
Lock Function:
Entry
IMAP Policy:
Yes
Product Function:
Single Cylinder
Door Thickness Range:
1-3/8" to 2"
Product Dimension:
16.75" length x 2.6 width a 2.2" exterior handle set projection and a 2.6" interior rosette with a 2.7 projection interior
Door Strike:
Round Corner Full Lip Strike
Product Category:
Mechanical Locks
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Weslock 02880-N7NFR2D – Frequently Asked Questions

1) Will the Weslock 2880 handleset drop into my existing door prep, or do I have to re-bore?
In most cases it drops in. The 2880 Brookside uses a 2-1/8 inch cross bore, which is the standard residential bore, with 1 inch edge holes. The entry handle needs a 2-1/8 inch top hole (1-5/8 inch is an option) and a 2-1/8 inch bottom cross hole; the deadbolt takes the same 2-1/8 inch bore with a 1 inch edge hole. Latch backset is adjustable between 2-3/8 and 2-3/4 inches, so it covers either of the two standard residential backsets without ordering a different latch.
2) Can I key the Weslock 2880 handleset to match the other locks on my building?
Yes, within the Weslock keyway. The 2880 Brookside uses a Weslock 5-pin cylinder and can be ordered keyed alike (KA) instead of keyed different, and you can supply a key code on the order so new units cut to a code you already carry. That works for a landlord or property manager standardizing several doors on one key. It will not key into a Kwikset SmartKey or Schlage SC1 system, though, since those are different keyways.
3) Is the Weslock Brookside a complete entry set or just the exterior handle?
Complete. The 2880 Brookside is a keyed entry handleset with the Philtower lever as the interior trim, deadbolt, latch and strike, so one part number finishes the door. Some competing handlesets are sold exterior-only and need the interior trim ordered separately, the Kwikset 687AMD Amador and 687BW Belleview among them.
4) I need a handleset for a 1-3/4 inch commercial-thickness entry door - is the Weslock 2880 Brookside right or should I use something else?
The Brookside handles 1-3/4 inch fine, since its range runs 1-3/8 inch to 2 inch. If you want a peer sized specifically for 1-3/4 inch, the Kwikset 687BW Belleview single cylinder handleset and the Kwikset 687AMD Amador are both listed at 1-3/4 inch door thickness and Grade 3. The Baldwin Estates 6542 Tremont single cylinder entry mortise trim is also a 1-3/4 inch door product, but it is mortise trim rather than a bored lockset, so it needs a mortise pocket in the door rather than the 2-1/8 inch cross bore the Brookside uses.
5) What looks like a substitute for the Weslock 2880 Brookside handleset but will not key or function the same?
The Emtek 3002 Memphis, 3004 Hamilton, 3005 Melrose, and 3006 Manhattan brass mortise entrance handlesets read as entrance handlesets by name, but all four are dummy function - no cylinder, no latch operation. The Brookside is a keyed single cylinder entry lock on a 5 pin Weslock keyway. Likewise, the Schlage JE285 Barcelona with Seville lever is a non-keyed entry function handleset. If you are replacing a locking front door handleset, none of those five will do the job.
6) What is the closest equivalent to the Weslock 2880 Brookside handleset from another brand?
The Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is the nearest match in function and door prep. Both are single cylinder keyed entry handlesets with a lever interior trim, and both are residential-duty. The Schlage F60 Addison is from the F Series and is listed as Grade 2, while the Brookside is built to exceed ANSI Grade 3. Door thickness is where they part: the Brookside covers 1-3/8 inch to 2 inch, and the F60 Addison covers 1-3/8 inch to 1-3/4 inch, so on a 2 inch door the Weslock is the one that fits.
7) I need a higher grade than the Weslock 2880 Brookside for a multi-family entry door - what steps up?
The Master Lock HDLB Series HDLBA0615/4D single cylinder deadbolt handleset is listed at Grade 2 entrance function, as are the Schlage Residential F60 Addison and JE285 Barcelona, both Grade 2. The Brookside is built to exceed ANSI Grade 3 residential standards. For a common-area or high-traffic multi-family opening where the spec names Grade 2, those are the peers that carry the rating on paper.
8) Can I key the Weslock 2880 Brookside alike with Kwikset SmartKey handlesets on other doors?
No. The Brookside uses a 5 pin Weslock keyway and can be ordered keyed alike within Weslock hardware on the same key code. The Kwikset 687AMD Amador SMC is listed with the SC1 keyway and SmartKey, and the 687AMD SMT and 687BW Belleview are SmartKey as well - a different keyway family. To run one key across a property, standardize on one keyway rather than mixing; ordering the Brookside keyed alike covers the Weslock side.
9) What does single cylinder mean on the Weslock Brookside handleset, and is that allowed next to glass?
Single cylinder means the deadbolt is keyed on the outside and turns with a thumbturn on the inside. No key is needed to get out, which is what most residential entry doors want. If your door has sidelights or glass panels within reach of the interior thumbturn, many jurisdictions push you toward a double cylinder instead, keyed on both sides. The Baldwin Estates 6542 Tremont is sold in both, a single cylinder entry mortise trim and a double cylinder version, if you need the keyed-both-sides arrangement.
10) How much room does the Weslock 2880 Brookside handleset need on the door face?
The plate runs 16.75 inches in length by 2.6 wide, with a 2.2 inch exterior handle projection. Inside, the rosette is 2.6 with a 2.7 projection. The 16.75 inch length is the number that matters on a narrow-stile door or where a storm door closer arm or door light frame is close by, since the escutcheon spans both the deadbolt and the lower grip bore.
11) Is the Weslock 2880 handleset strong enough for an apartment or rental entry door?
It is a residential-rated entry lockset that exceeds ANSI Grade 3 standards, built on a zinc alloy substrate with a half moon spindle tubular design. Grade 3 is the residential tier, fine for single-family and light rental turnover. For a heavier-traffic multifamily entry, step up to a Grade 2 residential handleset such as the Schlage F60 Addison with Accent lever or the Master Lock HDLB Series single cylinder deadbolt handleset.
12) Does the Weslock 2880 handleset come with a strike, or do I need to buy one?
A strike is included. The 2880 Brookside ships with a round corner full lip strike, and the adjustable latches come with radius faceplates and strikes to match. Round corner is what most factory-prepped wood and steel doors are already routed for, so you usually will not need to chisel a square-corner mortise or order a separate strike plate.
13) Should I choose a mechanical handleset like the Weslock 2880 or go with an electronic keypad handleset?
Go mechanical when you want no batteries, no app, and a lock that keys into an existing system. The 2880 Brookside is a straight single cylinder entry set on a Weslock 5-pin keyway. If you need code access for tenants, cleaners, or short-term rentals, look at an electronic option instead: the Kwikset 815SCEHFL San Clemente handleset with a SmartCode keypad deadbolt, or Yale Real Living Assure Lock handlesets with Ridgefield trim, which come in standalone touchscreen and Wi-Fi/Bluetooth versions. Note the Yale Assure sets list a 1-3/4 to 2-1/4 inch door thickness range, so on a 1-3/8 inch door the Weslock is the one that fits.
14) Which Deltana handleset matches the Weslock 2880 Brookside door thickness range?
The Deltana 810871 Montego handleset carries the same 1-3/8 inch to 2 inch door thickness range as the Brookside, so it drops into the same door stock. For entry-function Deltana options, the 803871B Hanover, 815871 St. Ann, and 825871 Kingston are all entry handlesets in solid brass, against the Brookside's zinc alloy body. If a solid brass substrate is what the spec calls for, those are the Deltana series to look at.
15) Is there a simpler single cylinder handleset than the Weslock 2880 Brookside for a rental turn?
The Pamex FS7P31 Lexington single cylinder handleset in satin nickel is a straightforward entry-function handleset covering 1-3/8 inch to 1-3/4 inch doors. It comes in the one satin nickel finish, while the Brookside Philtower lever is offered in oil rubbed bronze, matte black, and satin nickel, so if you are matching several units to a house finish the Weslock gives you the three choices. The Kwikset 687AMD Amador and 687BW Belleview are also single cylinder keyed entry handlesets, but both are exterior only, so the interior lever trim is not part of them.
16) I want a knob interior instead of the Philtower lever - what handleset should I look at?
The Baldwin Wesley handleset comes with knob interior trim in two patterns: the 180WYHXATK with the Alcott knob and the 180WYHXCYK with the Carnaby knob. Both are entrance function, the same keyed-entry role as the Brookside, which is fitted with the Philtower lever. If ADA-friendly operation is a factor for the opening, the lever trim on the Weslock is the one that does not require grasping and twisting.
17) My door has a separate deadbolt bore and I want the lever and deadbolt to work together - does the Weslock 2880 Brookside do that?
The Brookside is a handleset with a single cylinder entry function and a 2-1/8 inch cross bore prep, with the deadbolt fitting a 2-1/8 inch bore (1-5/8 inch optional) and a 1 inch edge hole. If you want an interconnected lock where retracting the lever also throws the deadbolt, the Schlage Residential JI18/19 in the JI Series is an interconnected passage lock with a keyed deadbolt and Torino lever, Grade 2, for 1-3/8 inch to 1-3/4 inch doors. That is a different lock architecture from a handleset and it uses a passage lever rather than a keyed one.
18) What finishes does the Weslock 2880 Brookside with Philtower lever come in?
Three: Oil Rubbed Bronze, Satin Nickel, and Matte Black, all with the Philtower lever interior trim. Matte Black and Satin Nickel pair well with newer builds; Oil Rubbed Bronze is the one to pick when you are matching older bronze hinges and lighting already on the opening. All three are the same handleset underneath, so the fit and prep do not change with the finish.
