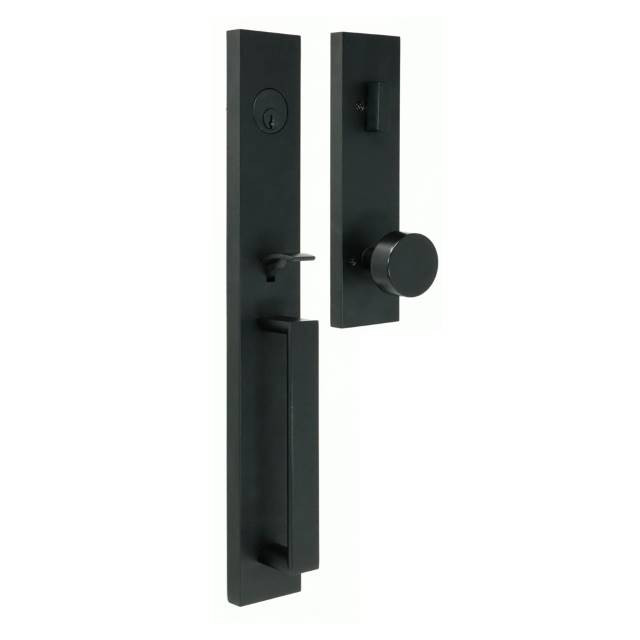

Weslock 2890 Xanthis Handleset with Mesa Knob - Deadbolt Keyed One Side in Matte Black

Weslock 2890 Xanthis Handleset with Mesa Knob - Deadbolt Keyed One Side

(No reviews yet) Write a Review

Model: 02890-N4NSL2D
From the Transitional Collection
$414.00
$219.25
Selected Finish is
Selected Lever/Knob Type is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$414.00
$219.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Weslock 2890 Xanthis Single Cylinder Handleset with Mesa Knob

The Weslock 2890 Xanthis Handleset delivers entry-grade security and a transitional aesthetic for residential front doors. The single-cylinder deadbolt is keyed one side; the Mesa knob interior trim operates without a key. Concealed installation screws keep the exterior profile clean. Available in Satin Nickel, Matte Black, and Oil Rubbed Bronze to coordinate with existing hardware.

Standard Features

  • Exceeds ANSI Grade 2 lock standards
  • 20-minute UL fire rating
  • Weslock 5-pin cylinder, Weslock keyway
  • Square spindle tubular design
  • Adjustable latch: 2-3/8" or 2-3/4" backset with radius faceplates and strikes
  • Door thickness range: 1-3/8" to 2-1/4"
  • Cross bore: 2-1/8" top and bottom (1-5/8" top optional); 1" edge hole
  • Concealed installation screws
  • Zinc alloy construction

Warranty

  • 25-Year Limited Mechanical Warranty
  • 5-Year Limited Finish Warranty

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Transitional
Warranty:
Limited 25 Year Mechanical and Limited 5 Year Finish
Collection:
Transitional
Keyed:
Yes
Cross Bore:
2-1/8"
Product Subgroup:
Bored Locksets
Product Type:
Handlesets
Subcategory:
Residential Handlesets
Keyed Function:
Single Cylinder
Commercial/Residential:
Residential
Cylinder and Keyways:
5-Pin Cylinder, Weslock Keyway
Lock Function:
Entry
IMAP Policy:
Yes
Product Function:
Single Cylinder
Door Thickness Range:
1-3/8" to 2"
Product Dimension:
Exterior: 17-3/8" L x 2.5" W x 2.5" projection; Interior: 10-5/16" L x 2.5" W x 2.5" projection
Door Strike:
Round and Square full lip & Round and Square no lip Deadbolt Strikes
Product Category:
Mechanical Locks
Product Substrate:
Zinc Alloy
Department:
Door Hardware

Weslock 02890-N4NSL2D – Frequently Asked Questions

1) Will the Weslock 2890 Xanthis handleset fit my existing door prep, or do I have to re-bore?
In most cases the 2890 Xanthis drops into a standard residential entry prep. The latch is adjustable for either a 2-3/8 inch or 2-3/4 inch backset, so you don't pick a backset when you order. Boring is 2-1/8 inch cross bore top and bottom (a 1-5/8 inch top bore is an option) with a 1 inch edge hole. If your door already has two 2-1/8 inch bores for a knob or lever plus a deadbolt, the prep matches. What you do need to check is the spacing between those two bores on the door, since a handleset plate is fixed at the manufacturer's center-to-center.
2) What door thickness does the Weslock 2890 Xanthis handleset work on?
The 2890 Xanthis covers 1-3/8 inch through 2 inch doors, which takes in the standard 1-3/4 inch entry door and the thicker solid and insulated slabs people run into on custom front entries. Thinner 1-3/8 inch doors are in range too, so an older interior-weight slab used as a front door still works.
3) Does the Weslock Xanthis handleset lock with a key from the inside too, or just outside?
Key outside only. It's a single cylinder deadbolt keyed one side, and the interior Mesa knob turns the bolt without a key. That's the configuration you want on a solid door where someone has to get out fast, and it's the one to avoid if the door has glass within reach of the thumbturn. If you need key operation from both faces, look at a double cylinder entry set such as the Baldwin Estates 6542 Tremont double cylinder trim.
4) Can I key the Weslock 2890 handleset to match the other locks on the house?
Yes, within the Weslock family. It runs a 5-pin cylinder on the Weslock keyway, and you order it either keyed different (the standard) or keyed alike, with a key code field if you already have a Weslock code on the property and want the new set cut to it. Keying alike only works against other Weslock keyway cylinders. If your other doors are on a Kwikset or Schlage keyway, this set won't join that system.
5) How does the Weslock 2890 Xanthis compare to a Grade 3 handleset like the Kwikset 687 Amador?
The Weslock 2890 Xanthis exceeds ANSI Grade 2 lock standards and carries a 20-minute UL fire rating. The Kwikset 687AMD Amador single cylinder handleset is Grade 3 entrance function and is supplied as exterior trim only, in both the SMT SmartKey version and the SC1 keyway SmartKey version; the Kwikset 687BW Belleview is the same Grade 3 exterior-only arrangement. Those Kwikset units are rated for 1-3/4 inch doors, while the Weslock 2890 accepts 1-3/8 inch to 2 inch. For institutional or multi-family standardization where a grade is written into the spec, that Grade 2 versus Grade 3 distinction is the deciding line.
6) Is the Weslock Xanthis handleset rated for a fire door?
It carries a 20-minute UL fire rating and exceeds ANSI Grade 2 lock standards. A 20-minute rating is the one that matters on an apartment entry or a house-to-garage door. It's built as a residential lock, so for a commercial opening on a higher-rated door assembly you want a commercial grade set instead.
7) What strikes come with the Weslock 2890 handleset, and will they cover my old mortised pockets?
The set ships with radius faceplates and strikes for the latch, and the deadbolt takes round or square strikes in full lip or no lip. That range is what lets you cover an existing strike mortise: if the frame was cut for a square-corner strike, use the square; if a previous full-lip strike left a wider cutout, the full lip version hides it. Round faceplates on the latch match the standard drive-in and face-bored prep.
8) How much room does the Weslock Xanthis handleset need on the door, and how far does it stick out?
The exterior plate measures 17-3/8 x 2.5 inches with a 2.5 inch projection; the interior trim is 10-5/16 x 2.5 inches, also 2.5 inches of projection. The 2.5 inch width is the number to check against a narrow stile or a door with glass or a panel edge close to the lock edge, and the 2.5 inch projection matters if a storm door or sidelite swings past the handle.
9) What's a good alternative to the Weslock Xanthis handleset if my door is thicker than 2 inches or I want a keypad?
For a thicker slab or a keyless entry, the Yale Real Living Assure Lock touchscreen deadbolt with Ridgefield handleset covers 1-3/4 to 2-1/4 inch doors and comes in a standalone version or a Wi-Fi and Bluetooth version. The Kwikset San Clemente handleset with Halifax lever pairs a SmartCode keypad deadbolt with a 1-3/4 inch door. Both replace the key-only function of the Xanthis with code entry, which is the usual move on rentals where you're changing tenants.
10) Do the Emtek Memphis or Hamilton handlesets work as a substitute for the Weslock 2890 Xanthis?
No, not for a locking front door. The Emtek 3002 Memphis, 3004 Hamilton, 3005 Melrose, and 3006 Manhattan brass mortise handlesets are dummy function, meaning fixed trim with no latch and no lock. They're for the inactive leaf of a pair or a door that doesn't need to secure. The Xanthis is a keyed entry set with a single cylinder deadbolt, so if you need the door to lock, a dummy set is not the swap.
11) What is a solid brass alternative to the zinc alloy Weslock 2890 Xanthis handleset?
The Weslock 2890 Xanthis is zinc alloy construction. For a solid brass entry handleset, the Deltana 803871B Hanover, 815871 St. Ann, and 825871 Kingston are all solid brass entry function handlesets. Brass and zinc alloy differ in weight and in how the base metal behaves under coastal or high-exposure conditions, which is the usual reason a specifier calls one over the other.
12) Is there a keypad handleset option instead of the keyed Weslock 2890 Xanthis?
Yes. The Kwikset 815SCEHFL-CP913CNT San Clemente handleset with Halifax lever pairs a Contemporary SmartCode keypad electronic deadbolt with the handleset and ships with RCAL latch and RCS strike, for 1-3/4 inch doors in the Signature Series. The Weslock 2890 Xanthis is a mechanical single cylinder lock with a 5-pin Weslock keyway, so it needs no batteries and can be keyed alike to other Weslock cylinders on the property; the Kwikset unit trades that for code entry.
13) What finishes does the Weslock 2890 Xanthis handleset come in for matching the rest of the building's hardware?
Three: Satin Nickel, Matte Black, and Oil Rubbed Bronze, each with the Mesa knob interior. Those are the three finishes property managers most often standardize on across a fleet of units, so a whole building can be brought onto one look and, with keyed alike ordering, one Weslock key.
14) Is the Weslock Xanthis handleset solid brass or cast metal?
Zinc alloy, with concealed installation screws so no fasteners show on the exterior plate. If a solid brass entry set is what the spec calls for, the Deltana Hanover 803871B, St. Ann 815871, and Kingston 825871 handlesets are solid brass entry function sets.
