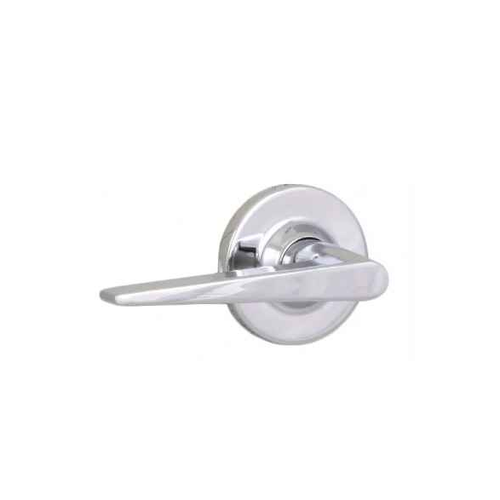

Weslock 3700 Urbana Lever Passage Lock with Adjustable Latch and Full Lip Strike

Weslock 3700 Urbana Lever Passage Lock with Adjustable Latch and Full Lip Strike

(No reviews yet) Write a Review

Model: 037002N2NSL20
From the Elegance Collection
$103.30
$58.41
Selected Finish is
Selected Lever Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$103.30
$58.41
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Weslock WOODWARD Passage Lock

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.

Passage: Passage door hardware has no Locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a Lock isn't needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.


Standard features

  • Cylindrical Door Locks
  • Meets ANSI A 156.2 Grade II Lock Standards
  • Removable Knobs/Levers Prevents Scratching During Installation
  • Zinc diecasted rosettes
  • Push Button Locking in Rosette
  • Adjustable latches 2-3/8” or 2-3/4” with removable faceplates
  • Ajusts to door thickness from 1-3/8” to 1-3/4”
  • Optional door thickness up to 2-1/4”
  • Fits doors prepared with 2-1/8” cross hole & 1” edge hole
  • Limited 10 Year Mechanical Warranty
  • Limited 5 Year Finish Warranty


Downloads and Resources

Weslock Catalog

Weslock General Specifications

Installation Instruction

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Elegance
Warranty:
Limited Lifetime Mechanical and Limited Lifetime Finish
Collection:
Elegance
Cross Bore:
2-1/8"
Keyed Function:
Non-Keyed
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Residential Door Levers
Keyed:
No
Commercial/Residential:
Residential
Lock Function:
Passage
Product Attribute:
Cylindrical Locks
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Passage/Hall/Closet
Door Thickness Range:
1-3/8" to 1-3/4"
Door Strike:
Round Corner Full Lip Strike
Product Style:
Woodward
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Weslock 037002N2NSL20 – Frequently Asked Questions

1) Will the Weslock 3700 Urbana passage lever fit a 1-3/8 inch interior door, or do I need a different latch?
It fits 1-3/8 inch through 1-3/4 inch doors as standard, so a typical older interior door and a standard commercial-thickness door both work off the same set. There's also a thicker-door option covering 1-3/4 inch up to 2-1/4 inch, which you pick when ordering. The door prep is a 2-1/8 inch cross bore with a 1 inch edge bore, the standard bored-lock prep.
2) Does the Weslock Urbana passage lever come with a 2-3/8 or 2-3/4 backset latch?
Both. The latch is adjustable between a 2-3/8 and 2-3/4 inch backset, so you don't have to measure the existing bore before ordering, and one part covers the two backsets you'll find on residential doors. Faceplates are removable for the swap.
3) Does a passage lever lock or does it just latch?
A passage set has no locking mechanism at all. Both levers stay free at all times, which is what you want on hallways, closets and pantry doors. The Weslock 3700 Urbana is non-keyed, so if you need to secure the opening you pair it with a separate deadbolt, which is common on a back door.
4) Is the Weslock 3700 passage lever rated for a commercial building or apartment corridor?
It's a residential product, ANSI A156.2 Grade 2. Fine for a house, a condo interior, or light traffic. For a corridor, a school, or anywhere with real cycle counts, go to a heavy duty Grade 1 passage set: the Falcon K101 is Grade 1 heavy duty, fire rated, and covers 1-3/8 to 2-1/4 inch doors, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage lever, also fire rated, for 1-3/4 to 2 inch doors.
5) Is a dummy lever the same as the Weslock 3700 Urbana passage lever?
No. The Weslock 3700 Urbana is a passage lever with a working latch - the lever retracts a latchbolt adjustable to a 2-3/8 or 2-3/4 inch backset, and it ships with a round corner full lip strike. A dummy lever has no latch and no mechanism at all; it is surface mounted trim for a pull. The Baldwin Estate 5103 Half Dummy comes handed left and right, the Emtek Arts and Crafts dummy is sold as a pair, and the BEST 7KC single dummy trim is a Grade 2 non-keyed dummy. None of those will latch a hall or closet door.
6) The bathroom door needs to lock - what replaces the Weslock 3700 Urbana passage lever there?
The Weslock 3700 Urbana is passage function with no locking mechanism, so both levers are always free. For a bed or bath opening that needs privacy locking, the Baldwin Estate 5103 Privacy Lever with 5048 rose is a privacy/bed/bath lever, the Kwikset 300BRNL Breton is a Grade 3 privacy lever for 1-3/8 inch to 1-3/4 inch doors, and the Hager 2540 with Withnell lever is a Grade 2 privacy cylindrical lock for 1-3/8 inch to 2 inch doors.
7) What is the closest commercial-grade equivalent to the Weslock 3700 Urbana passage lever for a hallway door?
The Weslock 3700 Urbana is a passage function cylindrical lever with no keying, and it is a residential product. Where a commercial-grade passage lever is wanted for the same hall or closet opening, the Accentra 5301LN Augusta is a Grade 2 passage/hall/closet cylindrical lever in the 5300 Series, and the Hager 2510 with Withnell lever is a Grade 2 passage cylindrical lever covering 1-3/8 inch to 2 inch doors. Both do the same job as the 3700 Urbana - both handles always free, no locking - with a commercial grade behind them.
8) The door is 2 inches thick - what passage lever works when the Weslock 3700 does not fit?
The Weslock 3700 Urbana covers 1-3/8 inch to 1-3/4 inch doors as standard, with an option up to 2-1/4 inch. For a straight 2 inch door out of the box, the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock rated 1-3/8 inch to 2-1/4 inch, and the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever built for 1-3/4 inch to 2 inch doors. The Hager 2510 Grade 2 passage lever also runs 1-3/8 inch to 2 inch.
9) Will the Weslock 3700 strike fit my existing strike cutout in the jamb?
It ships with a round corner full lip strike. If the jamb already has a radius-corner mortise, it drops straight in. On a frame cut for a square corner strike, or a T-strike, you'll be filing the mortise or filling and recutting it.
10) Is the Weslock Urbana lever handed? Does it matter which way my door swings?
No handing to specify. It's a bored cylindrical passage set with both levers free, so the same set works on a left or right hand door. The one thing you do specify is door thickness: standard 1-3/8 to 1-3/4 inch, or the 1-3/4 to 2-1/4 inch version.
11) I need to match passage levers across a whole building. What's a Grade 2 commercial alternative to the Weslock Urbana?
The Weslock is a residential Grade 2 set, so for a fleet standard on commercial openings look at the Hager 2510 Withnell passage lever, Grade 2, covering 1-3/8 to 2 inch doors, or the Accentra 5301LN Augusta from the 5300 Series, also Grade 2 passage. The Falcon B101 is another Grade 2 passage lever with a non-handed design. All three are stocked in matching functions across privacy, entry and storeroom, which is what makes standardizing a floor practical.
12) What keyed lever matches the Weslock 3700 Urbana passage lever on an entry or office door?
The Weslock 3700 Urbana is non-keyed, so it will not secure an entrance. For a keyed lever on the same kind of opening, the Hager 2525 is a Grade 2 commercial cylindrical entry lock with lever handle for 1-3/8 inch to 2 inch doors, the Falcon B511CP6D is a Grade 2 medium duty entry/office lever, and the Cal-Royal AG00 is a Grade 2 entrance lever with a 6-pin Schlage C keyway, keyed different, on a 2-3/8 inch backset for 1-3/8 inch to 1-3/4 inch doors.
13) For a high-traffic corridor, what heavier passage lever compares to the Weslock 3700 Urbana?
The Weslock 3700 Urbana is a residential Grade 2 passage lever with zinc diecast rosettes. Where the traffic warrants a heavier lever with the same passage function, the Falcon T101 is a Grade 1 heavy duty passage lever with pressure release technology, the Design Hardware X75 is a Grade 1 passage lever lockset with a flat lever for 1-3/4 inch doors, and the Falcon K101 is a Grade 1 heavy duty non-handed passage lock.
14) Can a storeroom or classroom lever be used in place of the Weslock 3700 Urbana?
Only if the function is meant to change. The Weslock 3700 Urbana is passage function - both levers always free, no key, no locking. A storeroom lever such as the Cal-Royal AG05, a Grade 2 storeroom lockset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, or the Hager 2580 Grade 2 storeroom lock with Withnell lever, keeps the outside lever locked at all times and needs a key. A classroom lever such as the Dexter C1000 Grade 1 clutching classroom lock is keyed from the outside. None of those are drop-in substitutes for an always-free hall or closet opening.
15) Will the installation screws show on the Weslock 3700 rose?
No. The rosettes are zinc die cast with concealed installation screws, so you get a clean face on both sides. The levers come off for installation too, which keeps you from scratching the finish while you're setting the rose.
16) What is the Weslock Urbana lever made of?
Brass is the substrate, with zinc die cast rosettes. It's part of Weslock's Elegance collection in the Woodward style, which is the residential decorative line rather than a commercial lockset.
17) Which passage levers have a different trim shape than the Weslock 3700 Urbana?
The Weslock 3700 Urbana is an Elegance collection lever in the Woodward style, offered in oil rubbed bronze and satin nickel. For a different trim look on the same passage function, the Bravura Tampa is a Grade 2 passage leverset with square trim, while the Bravura Atlanta, Orlando, and Miramar are Grade 2 passage leversets with round trim - the Miramar in US4 satin brass. The Accentra 4601LN carries the Augusta trim design on a Grade 2 passage lever.
