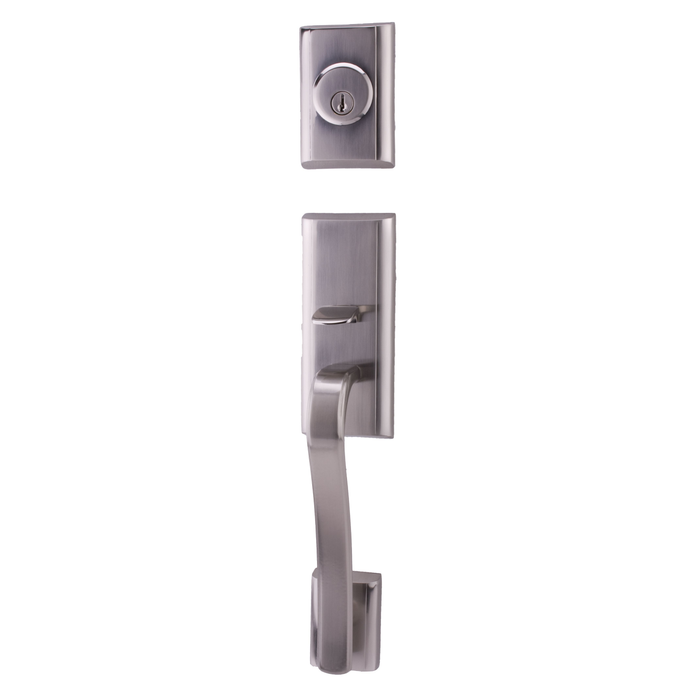

Weslock WOODWARD DUMMY HANDLESET OVERVIEW
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Standard features
- Exceeds ANSI A 156.2 Grade II lock standards
- Solid Molten Brass
- 1” Throw bolt with two hardened steel rollers prevent sawing
- Removable knob/lever prevents scratching during installation
- Fits doors prepared with 2-1/8” top (1-5/8“ optional) and 2-1/8” bottom cross holes and 1” edge hole
- 5-1/2” minimum center to center cross hole spacing
- Optional door thickness up to 2-1/4”
- Adjusts to door thickness from 1-3/4” - 2”
- Limited Lifetime Mechanical Warranty
- Limited 10 Year Finish Warranty
Manufacturer Resources
Product Specs
- Product Group:
- Mechanical Locks
- Series:
- Molten Bronze Series
- Warranty:
- Limited Lifetime Mechanical and Limited 10 Year Finish
- Collection:
- Molten Bronze
- Cross Bore:
- 2-1/8"
- Keyed Function:
- Non-Keyed
- Product Subgroup:
- Bored Locksets
- Product Type:
- Exterior Handle Only
- Subcategory:
- Residential Handlesets
- Keyed:
- No
- Commercial/Residential:
- Residential
- Lock Function:
- Dummy
- IMAP Policy:
- Yes
- Product Function:
- Dummy
- Door Thickness Range:
- 1-3/8" to 2"
- Product Style:
- Woodward
- Product Substrate:
- Brass
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Weslock 02165-N--002D – Frequently Asked Questions
1) Does the Weslock 6685 Woodward dummy handleset actually lock, or is it just trim?
It's trim only. The 6685 Woodward is a dummy handleset, non-keyed, with no latch and no cylinder, so nothing operates or secures. It surface-mounts as a pull on an inactive leaf of a double door, a French door slab, or a screen/storm door. If you need the door to latch and lock, you want an entrance handleset instead.
2) What door thickness does the Weslock Woodward 6685 handleset fit?
The stated range is 1-3/8 inch to 2 inch. Ordering asks you to pick a door thickness: 1-3/4 to 2 inch is the standard build, and there is a 2 to 2-1/4 inch option for thicker slabs. Pick the thicker option for heavy custom or double-thick doors, otherwise take standard.
3) Will the Weslock 6685 dummy handleset cover the holes from the handleset I'm removing?
It's built for a standard handleset prep: 2-1/8 inch top cross hole (1-5/8 inch optional), 2-1/8 inch bottom cross hole, 1 inch edge bore, and a minimum 5-1/2 inch center-to-center between the cross holes. If your existing prep matches that pattern it will cover. A dummy needs no latch, so the edge bore is not used, but the bore spacing still has to line up with the plate.
4) I need the door to actually lock, not just have a handle - what should I order instead of the Weslock 6685 Woodward?
The Weslock 6685 Woodward is a dummy function handle with no cylinder and no latch, so it will not secure an opening. For a working keyed entry, the Schlage Residential F58 Addison is an active entrance handleset with a C keyway and Grade 2 certification, covering doors 1-3/8 inch to 1-3/4 inch thick. The Schlage JH58 with Barcelona trim is another keyed entrance handleset, rated Grade 3, for the same 1-3/8 inch to 1-3/4 inch thickness range. Use the dummy only on a fixed leaf or a door that does not need to latch.
5) What is the closest equivalent to the Weslock 6685 Woodward dummy handleset from another brand?
The Schlage Residential F92 Custom Addison is also a dummy exterior handleset, so it serves the same purpose as the Weslock 6685 Woodward: a non-keyed, non-latching exterior trim for an inactive door leaf. The Schlage F92 Addison is part of the FC Series and lists a door thickness range of 1-3/8 inch to 1-3/4 inch, while the Weslock 6685 Woodward is a Molten Bronze Series handle with a solid brass substrate and a door thickness range of 1-3/8 inch to 2 inch. The visible difference is the trim design - Woodward versus Addison - so match whichever style is already on the adjacent doors.
6) My door is 2-1/4 inches thick - which handleset will fit?
The Weslock 6685 Woodward covers 1-3/8 inch to 2 inch doors and is ordered with a door thickness selection of either 1-3/4 inch to 2 inch standard or 2 inch to 2-1/4 inch, so the thicker option reaches 2-1/4 inch. If a keyed function is needed at that thickness, the Schlage Residential FCT58 Custom Addison keyed entry single cylinder handleset lists a door thickness range of 1-5/8 inch to 2-1/4 inch. The Schlage F58 Addison and JH58 Barcelona both stop at 1-3/4 inch.
7) What finishes does the Woodward 6685 dummy handleset come in?
Two: Oil-Rubbed Bronze and Satin Nickel. Both are Molten Bronze Series trim in solid brass, so if the rest of your openings are Weslock Molten Bronze in either of those finishes, the dummy leaf will match.
8) Is this Weslock handleset rated for commercial use?
No. The 6685 Woodward is a residential product. The Molten Bronze Series exceeds ANSI A156.2 Grade II lock standards, but for a school, hospital, or commercial entry you should be specifying Grade 1 commercial hardware, not residential handleset trim.
9) Does the Weslock 6685 come with an interior knob or lever, or just the exterior plate?
Exterior handle only. The 6685 Woodward is the outside half, paired with the Impresa knob design. Interior trim for the inactive leaf is ordered separately, so plan on a matching dummy interior piece if you want both faces dressed.
10) Is the Schlage F58 Addison a substitute for the Weslock 6685 Woodward dummy?
No - they are different functions. The Schlage F58 Addison is an active entrance handleset with a C keyway, meaning it includes a cylinder and latching hardware and requires full bored prep. The Weslock 6685 Woodward is a dummy exterior handle with no key and no latch, mounted as surface trim. The Schlage dummy counterpart in the Addison trim is the F92 Custom Addison. Order the dummy against a dummy, not against the keyed version of the same trim name.
11) Are the mounting screws visible on the Weslock Molten Bronze handleset?
No, installation screws are concealed on Molten Bronze Series handlesets, so the face of the plate stays clean. The knob also comes off during install, which keeps the finish from getting scratched while you set the plate.
