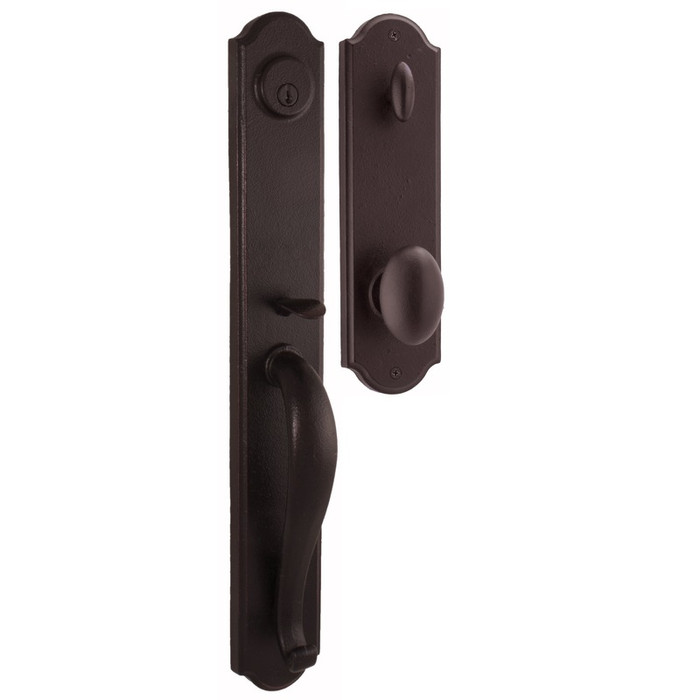

WESLOCK STONEBRIAR INTERCONNECTED SINGLE CYLINDER HANDLESET OVERVIEW
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Standard features
- 5-Pin Cylinder, Weslock keyway
- Exceeds ANSI A 156.2 Grade II lock standards
- Solid Molten Brass
- 1” Throw bolt with two hardened steel rollers prevent sawing
- Removable knob/lever prevents scratching during installation
- Heavy Duty Security Strikes with 3” screws
- Fits doors prepared with 2-1/8” top (1-5/8“ optional) and 2-1/8” bottom cross holes and 1” edge hole
- 5-1/2” minimum center to center cross hole spacing
- Adjustable latches 2-3/8” or 2-3/4” with removable faceplates
- Optional door thickness up to 2-1/4”
- Adjusts to door thickness from 1-3/4” - 2”
- Limited Lifetime Mechanical Warranty
- Limited 10 Year Finish Warranty
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Series:
- Molten Bronze
- Door Thickness:
- 1-3/4" to 2"
- Backset:
- 2-3/8" or 2-3/4"
- Strike:
- 2-1/4" full lip and 1" x 2-1/4", Radius & Square
- Warranty:
- Limited Lifetime Mechanical and Limited 10 Year Finish
- Function:
- Single Cylinder
- Latch Faceplate:
- 1" x 2-1/4"
- Collection:
- Molten Bronze
- Cross Bore:
- 2-1/8"
- Keyed:
- Yes
- Handing:
- Handing required when interior trim uses a Handed lever
- Product Subgroup:
- Bored Locksets
- Product Type:
- Handlesets
- Subcategory:
- Residential Handlesets
- Substrate:
- Brass
- Keyed Function:
- Single Cylinder
- Commercial/Residential:
- Residential
- Cylinder and Keyways:
- 5 Pin Cylinder, Weslock Keyway
- Style:
- Wiltshire
- Lock Function:
- Entry
