Weslock Weslock 7680 Wiltshire Keyed Entry Handle with Wexford Knob WES-7680

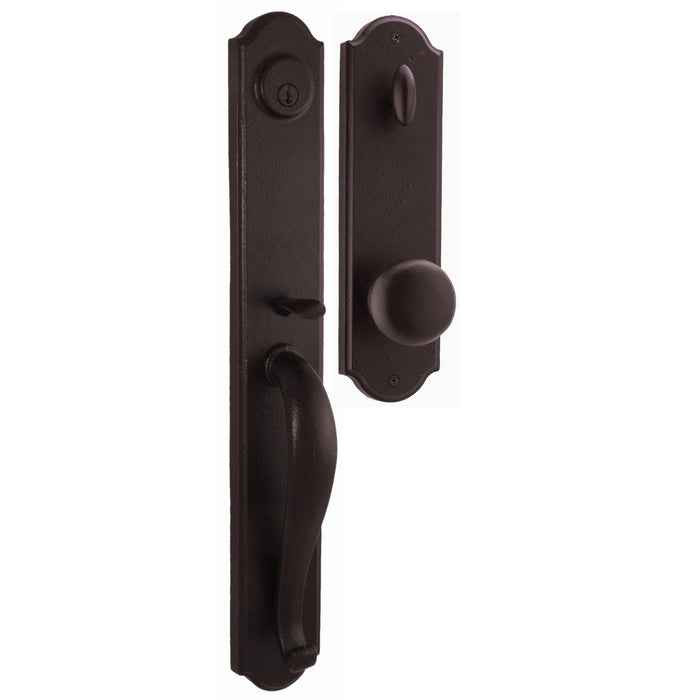

Weslock 7680 Wiltshire Keyed Entry Handle with Wexford Knob

(No reviews yet) Write a Review

Model: 07680-2F2SL2D
From the Molten Bronze Collection
$576.00
$324.58
Selected Finish is
Selected Free Keying Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$576.00
$324.58
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Weslock STONEBRIAR INTERCONNECTED Single Cylinder Handleset

If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.


Standard features

  • 5-Pin Cylinder, Weslock keyway
  • Exceeds ANSI A 156.2 Grade II Lock standards
  • Solid Molten Brass
  • 1” Throw bolt with two hardened steel rollers prevent sawing
  • Removable knob/lever prevents scratching during installation
  • Heavy Duty Security Strikes with 3” screws
  • Fits doors prepared with 2-1/8” top (1-5/8“ optional) and 2-1/8” bottom cross holes and 1” edge hole
  • 5-1/2” minimum center to center cross hole spacing
  • Adjustable latches 2-3/8” or 2-3/4” with removable faceplates
  • Optional door thickness up to 2-1/4”
  • Adjusts to door thickness from 1-3/4” - 2”
  • Limited Lifetime Mechanical Warranty
  • Limited 10 Year Finish Warranty

Manufacturer Resources

Product Specs

Product Group:
Mechanical Locks
Series:
Molten Bronze
Warranty:
Limited Lifetime Mechanical and Limited 10 Year Finish
Latch Faceplate:
1" x 2-1/4"
Collection:
Molten Bronze
Cross Bore:
2-1/8"
Keyed:
Yes
Product Subgroup:
Bored Locksets
Product Type:
Handlesets
Subcategory:
Residential Handlesets
Keyed Function:
Single Cylinder
Commercial/Residential:
Residential
Cylinder and Keyways:
5 Pin Cylinder, Weslock Keyway
Lock Function:
Entry
IMAP Policy:
Yes
Backset (Distance):
2-3/8 or 2-3/4
Product Function:
Single Cylinder
Door Thickness Range:
1-3/4" to 2"
Door Strike:
2-1/4" full lip and 1" x 2-1/4", Radius & Square
Product Style:
Wiltshire
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Weslock 07680-2F2SL2D – Frequently Asked Questions

1) Will the Weslock 7680 Wiltshire handleset fit a 2 inch thick door?
Standard configuration of the 7680 Wiltshire adjusts to doors from 1-3/4 to 2 inches. If your door runs thicker, there's a second door thickness option covering 2 to 2-1/4 inches, and you pick it on the order. Get that choice right at order time, since the thicker option is a different build, not a field adjustment.
2) Does the Weslock 7680 handleset work with 2-3/8 inch backset or do I need 2-3/4?
Both. The latch on the 7680 is adjustable between a 2-3/8 and 2-3/4 inch backset, so you don't specify it when ordering and one part covers either bore location. Faceplates are removable, and the latch face measures 1 x 2-1/4 inches.
3) What door prep does the Weslock Wiltshire handleset need? Can I put it on an existing bored door?
The Wiltshire handleset needs 2-1/8 inch cross bores top and bottom (the top can be 1-5/8 inch as an option) with a 1 inch edge bore, and the two cross holes have to be at least 5-1/2 inches center to center. A standard single-bore door prepped for a knob or lever won't take it without adding the second bore, so check the existing hole spacing before you order.
4) Can I get several Weslock 7680 handlesets keyed alike on one key?
Yes, keyed alike is a no-cost option selected at order time, along with keyed different. There's also a key code field if you need the locks cut to a code you already carry across a building. The cylinder is a 5-pin in the Weslock keyway, so anything you key it with has to be Weslock, not Kwikset or Schlage.
5) How strong is the deadbolt on the Weslock Wiltshire entry handleset?
One inch throw bolt with two hardened steel rollers set in it to defeat a saw blade, and it ships with heavy duty security strikes fastened by 3 inch screws that reach past the jamb into the framing. Weslock states the lock exceeds ANSI A156.2 Grade 2. Strikes supplied are a 2-1/4 inch full lip plus a 1 x 2-1/4 inch, in radius and square corner.
6) Is the Emtek 3002 Memphis mortise entrance handleset a substitute for the Weslock 7680?
No. The Weslock 7680 Wiltshire is a keyed entry handleset with a single cylinder function and a 5-pin Weslock keyway, so it locks. The Emtek 3002 Memphis brass mortise entrance handleset is a dummy function, as are the Emtek 3004 Hamilton, 3005 Melrose, and 3006 Manhattan. A dummy handleset is surface-applied trim with no cylinder and no latch operation, used on a fixed or inactive leaf. If you want the Emtek look on a door that has to lock, the dummy is the wrong function to order.
7) What is the closest equivalent to the Weslock 7680 Wiltshire handleset if I need a single cylinder keyed entry handleset in a Grade 2 lock?
The Weslock 7680 Wiltshire is a single cylinder keyed entry handleset that exceeds ANSI A156.2 Grade II lock standards. Two peers land in the same place: the Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is a Grade 2 entrance handleset in the F Series, and the Master Lock HDLBA0615/4D is a Grade 2 single cylinder deadbolt handleset in the HDLB Series. The main dividing line is the door: the 7680 adjusts to door thickness from 1-3/4 inch to 2 inch with an option up to 2-1/4 inch, while the F60 Addison covers 1-3/8 inch to 1-3/4 inch, so a thick or built-up door points to the Weslock and a standard 1-3/8 inch door points to the Schlage.
8) What should I use instead of the Weslock 7680 on a 1-3/8 inch door?
The Weslock 7680 Wiltshire starts at 1-3/4 inch door thickness, so a 1-3/8 inch door needs a different handleset. Peers that cover 1-3/8 inch include the Pamex FS7P31 Lexington single cylinder entry handleset in satin nickel at 1-3/8 inch to 1-3/4 inch, the Schlage Residential F60 Addison keyed entry handleset with Accent lever at 1-3/8 inch to 1-3/4 inch and Grade 2, and the Deltana 810871 Montego handleset at 1-3/8 inch to 2 inch. The Deltana Montego is the one of the three that also still covers a 2 inch door, so it is the choice if the same order has both thin and thick doors on it.
9) I need a double cylinder handleset instead of single cylinder. What are my options?
The Weslock 7680 Wiltshire is single cylinder, keyed outside with a thumbturn inside. For an opening that requires a key on both sides, such as a door with glass beside it, the Baldwin Estates 6542 Tremont double cylinder entry mortise trim, BAL-6542DBLC, is the double cylinder peer, entrance function at 1-3/4 inch door thickness. Its single cylinder counterpart is the BAL-6542ENTR. Both are mortise trim rather than a bored handleset, so the door prep differs from the 2-1/8 inch cross bore the 7680 uses. Double cylinder locks carry egress restrictions in many jurisdictions, so confirm the local code for the occupancy before specifying one.
10) I need a handleset that can be keyed alike across a set of doors. How does the Weslock 7680 compare to the Kwikset SmartKey handlesets?
The Weslock 7680 Wiltshire uses a 5-pin cylinder in the Weslock keyway and can be ordered keyed different or keyed alike, with a key code entered at order time. The Kwikset peers take a different route: the 687AMD SMT Amador and 687BW SMT Belleview are Grade 3 single cylinder keyed entry handlesets with SmartKey, and the 687AMD SMC is the same Amador handleset in the SC1 keyway with SmartKey. SmartKey lets you rekey the cylinder yourself in the field; the Weslock approach is to have the cylinders keyed alike before they ship. If the doors on the job are already on a Weslock keyway, the 7680 stays on that key system; if they are on SC1, the KWI-687AMD-SMC is the one that matches that keyway. Note the Kwikset 687 handlesets are exterior only.
11) Is the Weslock 7680 single cylinder handleset thumbturn on the inside, or keyed both sides?
Single cylinder: keyed from outside, thumbturn inside. That's the code-friendly choice for a residential entry door with glass nearby is a separate discussion, but on a solid door it means no key needed to exit. If you want key both sides, this isn't the one; the Baldwin Estates 6542 Tremont is offered in a double cylinder entry version.
12) Is the Weslock 7680 handleset rated for a commercial building or apartment corridor doors?
It's a residential product. For a house, a condo unit entry, or a light multi-family front door it's appropriate, but if you're specifying for commercial openings you want a commercial bored or mortise lock instead. Material is solid brass, which holds up outdoors better than a plated steel handleset.
13) Do I get the interior knob with the Weslock 7680, or is that ordered separately?
The Wexford knob comes with it as the interior trim. Some handlesets are exterior plate only, which is a common ordering mistake: the Kwikset 687AMD Amador and 687BW Belleview are both sold as exterior only and need the inside trim bought separately. The Weslock knob is also removable during install so you don't scratch the finish setting the plate.
14) Can I replace the Weslock 7680 with an electronic handleset and keep the same door?
The Weslock 7680 Wiltshire is a mechanical single cylinder keyed entry handleset on a 1-3/4 inch to 2 inch door, with an option to 2-1/4 inch. Electronic peers exist in that thickness band: the Yale Real Living BYRD226NRRX Assure standalone touchscreen deadbolt with Ridgefield handleset and the BYRD226CBARX Wi-Fi and Bluetooth version both cover 1-3/4 inch to 2-1/4 inch, and the Kwikset 815SCEHFL-CP913CNT San Clemente handleset with Halifax lever and contemporary SmartCode keypad electronic deadbolt in the Signature Series is listed at 1-3/4 inch. The BYRD256 CBARX Assure key free touchscreen deadbolt pairs with a Ridgefield passage handleset, so the handle itself does not lock and all the locking is in the deadbolt. Going electronic means the door no longer runs on the Weslock 5-pin keyway.
15) What is the difference between the Weslock 7680 Wiltshire and the Baldwin Wesley handlesets with knob trim?
Both are handlesets with knob interior trim. The Weslock 7680 pairs the Wiltshire handle with the Wexford knob, is single cylinder keyed entry, and is solid molten brass in the Molten Bronze collection. The Baldwin Wesley handleset comes in two knob trims: BAL-180WYHXATK with the Alcott knob and BAL-180WYHXCYK with the Carnaby knob, both entrance function. The practical difference for a buyer is the trim choice and the key system, since the 7680 rides on the Weslock 5-pin keyway.
16) Which solid brass handlesets are comparable to the Weslock 7680 if I want a different style but the same material?
The Weslock 7680 Wiltshire is solid molten brass with a Wiltshire handle and Wexford knob. Deltana offers four solid brass entry handlesets in different series: the 803871B Hanover, the 815871 St. Ann, and the 825871 Kingston are all entry function solid brass handlesets, and the 810871 Montego covers 1-3/8 inch to 2 inch door thickness. All are brass-bodied entry handlesets like the Weslock, so the choice comes down to handle profile and which keyway you want the door on.
17) I do not need the exterior to key. Is there a non-keyed handleset like the Weslock 7680?
Yes. The Weslock 7680 Wiltshire is keyed with a single cylinder function. If the opening does not need a key from outside, the Schlage Residential JE285 Barcelona style handleset with Seville lever is a Grade 2 non-keyed entry handleset in the J Series covering 1-3/8 inch to 1-3/4 inch doors. The Schlage JI18/19 is a different arrangement again: an interconnected passage lock with a keyed deadbolt and Torino lever, Grade 2, 1-3/8 inch to 1-3/4 inch, so the lever passes freely and the key work happens at the deadbolt. Both stop at 1-3/4 inch, so a thicker door stays with the Weslock.
18) Do the Kwikset 687 Amador and Belleview handlesets include interior trim like the Weslock 7680?
No, and this catches people mid-install. The Weslock 7680 Wiltshire ships as a complete keyed entry set, the Wiltshire handle outside with the Wexford knob inside, with heavy duty security strikes and 3 inch screws. The Kwikset 687AMD SMT Amador, 687AMD SMC Amador, and 687BW SMT Belleview single cylinder keyed entry handlesets are exterior only, all Grade 3 at 1-3/4 inch door thickness, so the interior knob or lever is a separate line item. If you are pricing a like-for-like swap, that is the piece to add.
19) What finishes does the Weslock 7680 Wiltshire handleset come in?
Two: oil rubbed bronze and matte black. Both are on the same Wiltshire handle with the Wexford knob inside, so if you're matching other openings in a building the trim shape stays identical between them.
