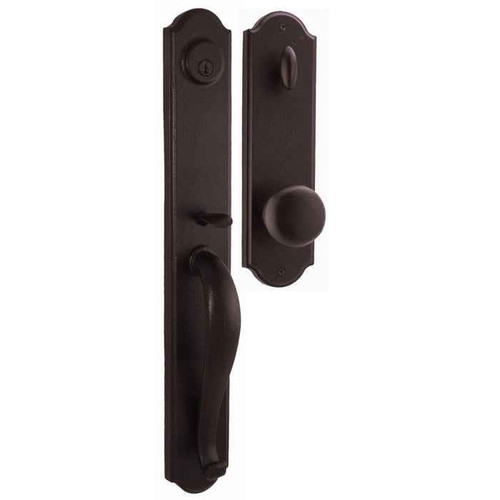

Weslock 7680 Wiltshire Keyed Entry Handle with Wexford Knob
Model: WES-7680
Weslock
Weslock 7631 Stonebriar Keyed Entry Handle with Wexford Knob
Model: WES-7631
Weslock

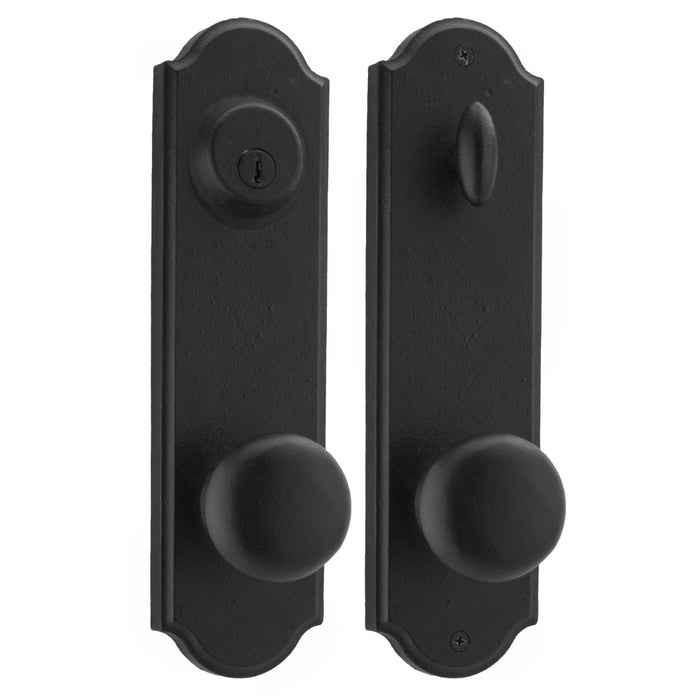

WESLOCK TRAMORE SINGLE CYLINDER PASSAGE DEADBOLT LOCK OVERVIEW
If security, safety, and style are important to you, then Weslock is your choice for quality hardware for your home. Not only are Weslock door handle and deadbolt products strong and long lasting, but they also offer a beautiful aesthetic for your home. With designs that enhance the look and feel of your home and details, such as concealed installation screws, that merge function and form, Weslock offers a product unmatched by the competition.
Single Cylinder Keyed Entry: Single cylinder keyed entry door hardware is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the locking mechanism. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Standard features
- 5-Pin Cylinder, Weslock keyway
- Exceeds ANSI A 156.2 Grade II lock standards
- Solid Molten Brass
- 1” Throw bolt with two hardened steel rollers prevent sawing
- Removable knob/lever prevents scratching during installation
- Heavy Duty Security Strikes with 3” screws
- Fits doors prepared with 2-1/8” top (1-5/8“ optional) and 2-1/8” bottom cross holes and 1” edge hole
- 5-1/2” minimum center to center cross hole spacing
- Interconnect feature available
- Adjustable latches 2-3/8” or 2-3/4” with removable faceplates
- Adjusts to door thickness from 1-3/4” - 2”
- Limited Lifetime Mechanical Warranty
- Limited 10 Year Finish Warranty
DOWNLOADS & RESOURCES
- Brand:
- Weslock
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Series:
- Molten Bronze
- Backset:
- 2-3/8" or 2-3/4"
- Warranty:
- Limited Lifetime Mechanical and Limited 10 Year Finish
- Latch Faceplate:
- 1" x 2-1/4"
- Collection:
- Molten Bronze
- Cross Bore:
- 2-1/8"
- Door Thickness:
- 1-3/8" to 2"
- Strike:
- Round Corner Strike
- Handing:
- Yes
- Keyed Function:
- Single Cylinder
- Keyed:
- Yes
- Function:
- Single Cylinder
- Product Subgroup:
- Bored Locksets
- Product Type:
- Handlesets
- Subcategory:
- Residential Handlesets
- Substrate:
- Brass
- Commercial/Residential:
- Residential
- Cylinder and Keyways:
- 5 Pin Cylinder, Weslock Keyway
- Style:
- Tramore
- Lock Function:
- Entrance
