IDEAL Industries 30-552 Wing-Nut® Wire Connector, Model 452® Red, Carton of 1,000

IDEAL Industries 30-552 Wing-Nut® Wire Connector, Model 452® Red, Carton of 1,000

(No reviews yet) Write a Review

Model: 30-552
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$350.00
$0.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

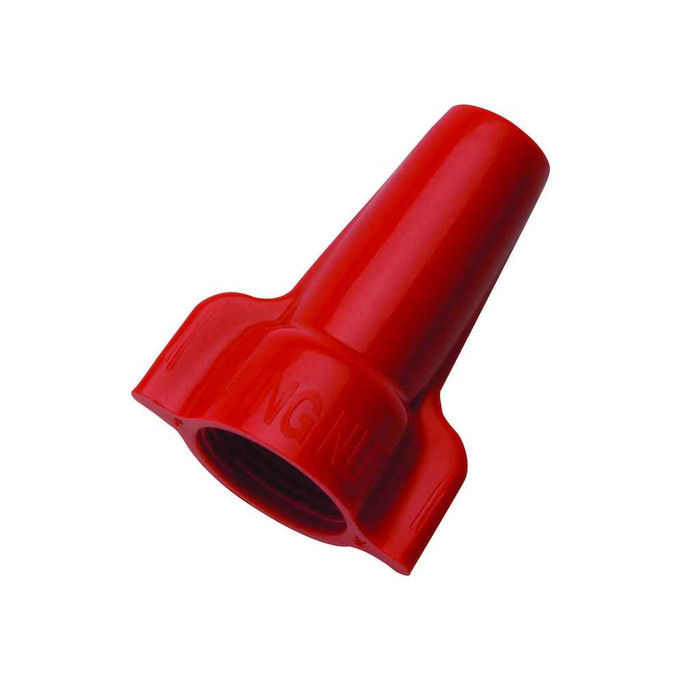

Wing-Nut® Wire Connector, Model 452® Red, Carton of 1,000

  • Features

    • High-leverage, contoured wing provides superior torque on every twist
    • Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
    • Copolymer shell expands for smooth, progressive tightening providing dependable connections
    • Removable for repeat usage on same size or larger combinations
    • Largest range in the Industry - from 2 #18 to up 4 #10


30-552 - spec sheet

Manufacturer Resources

Spec Sheet

Product Specs

Product Group:
Wire Connectors & Terminals
Department:
Electrical
Product Subgroup:
Wire Connectors
Product Type:
Twist-On Wire Connector

Ideal Industries 30-552 – Frequently Asked Questions

1) What wire sizes and combinations does the IDEAL 452 Wing-Nut red connector handle?
The red Model 452 Wing-Nut covers the widest range IDEAL makes, from two #18 conductors at the low end up to four #10 at the top. The live-action spring closes down on the small combinations and expands for the big ones, so one bin of red wing-nuts covers most branch circuit splices instead of stocking several colors.
2) Is IDEAL part number 30-552 a single connector or a bulk carton?
30-552 is the carton of 1,000 red Model 452 Wing-Nut connectors. It's the bulk pack, not a shop card or jar, so it suits an electrical contractor wiring out a whole building or an MRO crib restocking a splice bin.
3) Can a Wing-Nut connector be taken off and reused on the same splice?
Yes. The 452 Wing-Nut is removable and can be reused on the same size combination or a larger one. That matters on service and troubleshooting work where you open a box, test, and close it back up. Going back down to a smaller combination is not what it's built for, so grab a fresh one if the splice gets smaller.
4) Do I need a tool or a nut driver to install IDEAL Wing-Nut wire connectors?
No tool needed. The contoured, high-leverage wing is the whole point of the design, it gives you torque by hand on every twist, which is what makes it a better choice than a plain round twist-on connector when you're doing hundreds of splices in a day or working with gloves on.
5) Should I use a wing-style twist-on connector or a push-in lever connector for my splices?
A twist-on like the red 452 is the choice when your conductor count varies splice to splice, since one connector covers anything from two #18 up to four #10 and comes back off for rework. Push-in connectors fix you to a set number of ports per piece. If your work is repetitive and you want the hand torque without a driver, the winged twist-on is the faster of the two.
6) What is the shell on an IDEAL 452 wire connector made of?
Copolymer. It expands as you drive the connector on, which gives the smooth progressive tightening the design relies on rather than binding at a fixed diameter.
