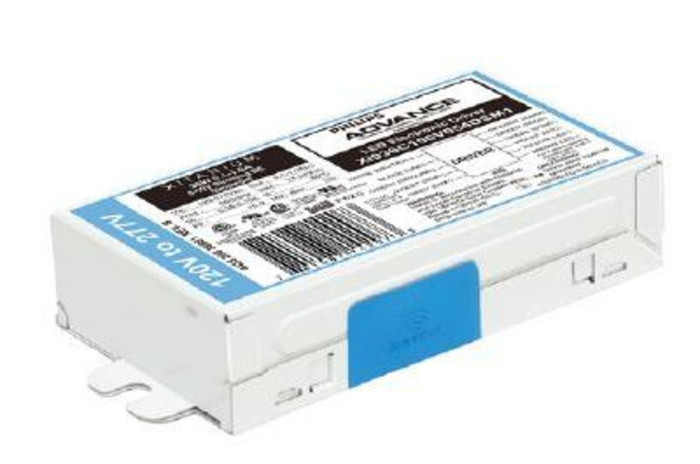

Advance XITANIUM 36W LED Driver 1.0A 54V 0-10V Dimming Point Adjustable Current System

Advance XITANIUM 36W LED Driver 1.0A 54V 0-10V Dimming Point Adjustable Current System

(No reviews yet) Write a Review

Model: XI036C100V054DSM1M

In Stock (leaves warehouse same day if ordered before 3pm ET)

$129.10
$58.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance XITANIUM 36W LED Driver 1.0A 54V 0-10V Dimming Point Adjustable Current System

Professional LED Power Management with Precision Current Control

The Advance XITANIUM LED Driver delivers reliable 36W power management with 1.0A output current at 54V, featuring 0-10V dimming capability and point adjustable current control. This UL certified driver from Signify Electronics provides professional-grade LED lighting control with compact dimensions of 4.8" x 2.4" x 0.98" and lightweight 0.313 lb construction for versatile installation applications.

Professional Features & Benefits

  • 36W Power Output: Delivers consistent 36-watt power management for reliable LED lighting performance and energy efficiency.
  • 1.0A Current Rating: Provides precise 1.0 ampere output current at 54V for optimal LED load compatibility and consistent illumination.
  • 0-10V Dimming Control: Enables smooth dimming functionality with 0-10V control systems for flexible lighting management and ambiance control.
  • Point Adjustable Current: Offers field-adjustable current settings for customized LED performance and application-specific optimization.
  • UL Certification: Meets rigorous UL safety standards ensuring reliable operation and code compliance for professional installations.
  • Compact Design: Measures just 4.8" x 2.4" x 0.98" with 0.313 lb weight for easy integration in space-constrained applications.
  • USA Manufacturing: Built in USA with quality construction and reliable supply chain for consistent availability and support.

Technical Specifications

  • Amperage: 1:00 AM
  • Ballast Type: Driver
  • Country Of Origin: USA
  • Product Height: 0.9799 IN
  • Product Length: 4.8000 IN
  • Product Type: LED
  • Product Wattage: 36 W
  • Product Weight: 0.313 Lbs
  • Product Width: 2.4000 IN
  • Voltage Rating: 0-10 V

Professional Applications

  • Commercial LED Lighting Systems
  • Retail Display Illumination
  • Office Building Lighting
  • Hospitality Lighting Control
  • Educational Facility Lighting
  • Healthcare Lighting Applications
  • Industrial LED Installations

Why Choose Advance Quality?

Advance XITANIUM drivers represent proven reliability in LED power management with UL certification, USA manufacturing, and Signify Electronics engineering. The compact, lightweight design with point adjustable current control delivers professional performance for demanding lighting applications requiring precise dimming control and consistent operation.

Manufacturer Resources

Product Specs

Amperage:
1:00 AM
Ballast Type:
Driver
Country Of Origin:
USA
Product Height:
0.9799 IN
Product Length:
4.8000 IN
Product Type:
LED
Product Wattage:
36 W
Product Weight:
0.313 Lbs
Product Width:
2.4000 IN
Voltage Rating:
0-10 V
Department:
Electrical

Advance XI036C100V054DSM1M – Frequently Asked Questions

1) Will the Advance Xitanium XI036C100V054DSM1M drive my LED module, and what output does it actually put out?
The Xitanium XI036C100V054DSM1M is a 36W constant current LED driver rated 1.0A at 54V. Your LED array needs to fall within that: the forward voltage at your drive current has to sit inside the driver's output range, and the string current must match 1.0A (or a lower point you set with the adjustable current feature). A module that wants 700mA at 24V or a 60W array is the wrong pairing.
2) Can I set this Xitanium driver to a lower output current than 1.0A?
Yes. This is a point adjustable current driver, so the output can be set in the field rather than being fixed at the 1.0A maximum. That lets one part number cover several fixture builds: you tune the drive current to the LED board you are actually feeding instead of stocking a separate driver for each current point.
3) Does this Advance LED driver work with a standard 0-10V wall dimmer?
It does. The driver takes a 0-10V analog control signal, which is the common commercial dimming protocol run on a separate low-voltage control pair from the line wiring. It is not a phase-cut (TRIAC/ELV) driver, so a residential leading or trailing edge dimmer will not control it. If your controls are DALI or 0-10V-less line voltage dimming, this is the wrong driver.
4) I am standardizing drivers across a building retrofit. What do I need to match to reuse this one part number?
Three things have to line up on every fixture: the LED load must be at or under 36W, its forward voltage has to work with the 54V output, and the drive current must be 1.0A or a lower setting you dial in with the point adjustable feature. Meet those and the same XI036C100V054DSM1M covers the whole fleet, with 0-10V control wired back to your dimming panel. Fixtures running a different topology, such as constant voltage 24V tape, need a separate driver.
5) Is this a constant current LED driver or an electronic ballast?
It is an LED driver, not a fluorescent or HID ballast. Advance catalogues it as driver type, and it regulates output current (1.0A) to an LED load rather than striking and running a lamp. If you are relamping a fluorescent troffer and keeping the existing sockets and ballast, this part does not apply.
6) Is the Advance Xitanium 36W driver UL certified, and is it made in the USA?
UL certified, and built in the USA. For institutional and government specs that call for domestic manufacture on the electrical package, the country of origin on this Xitanium driver is USA.
