Accentra 1101BFCOV Grade 1 Ind...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$304.00
$115.29

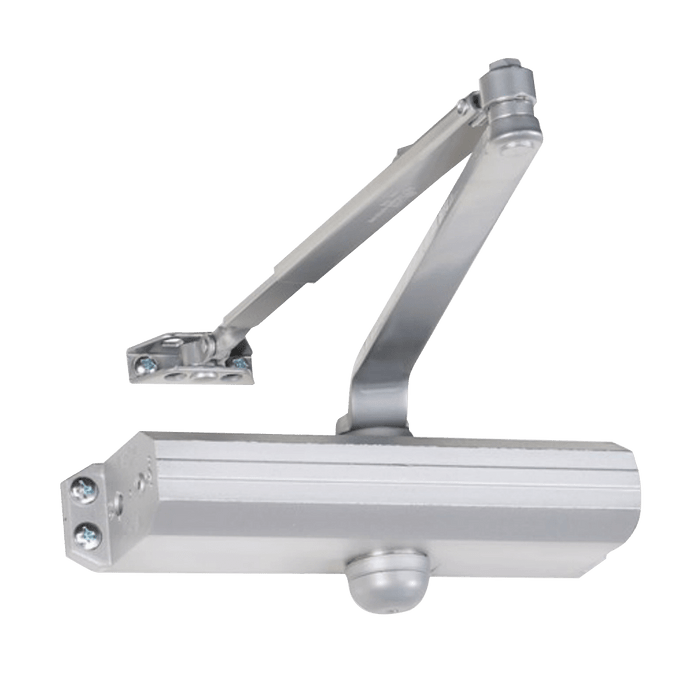

Yale Commercial Yale 1101BFCOV Grade 1 Door Closer, Tri-Packed (Regular, Parallel, Top Jamb Mount), Non-Hold Open, Size 1-4, with Cover YAL-1101BFCOV

Accentra 1101BFCOV Grade 1 Industrial Door Closer with Cover - Tri-Packed Non-Hold Open, Size 1-4

(No reviews yet) Write a Review

Model: 1101BFCOV 690
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$304.00
$115.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 1101BFCOV Grade 1 Industrial Door Closer with Cover - Tri-Packed Non-Hold Open, Size 1-4

Professional Industrial Door Closer Solution

The Accentra 1101BFCOV Grade 1 industrial door closer delivers reliable performance for commercial applications requiring ease of installation at an economic price. This tri-packed closer features adjustable spring sizes 1 through 4, full rack and pinion operation, and includes regular, parallel, and top jamb mounting options. ANSI/BHMA Grade 1 certified with UL/cUL listing for fire rated doors and ADA compliance ensures professional-grade reliability.

Professional Features & Benefits

Product Features

  • ANSI/BHMA Certified
  • UL/cUL listed for fire rated doors
  • ADA compliant
  • 1101BF (non-hold open) and 1111BF (hold open) door closers are adjustable spring sizes 1 through 4
  • 1104BC (non-hold open) door closers are spring size 4
  • Non-handed
  • Full rack and pinion
  • Aluminum
  • Tri-packed: regular, parallel or top jamb mounting
  • Adjustable backcheck valve
  • Adjustable closing speed valve
  • Adjustable latching speed valve
  • Auxiliary door stop required
  • Sleeve nuts included with all models (1-3/4")
  • Warranty: 5 year limited
  • 1101BF closers available with or without cover

Product Features

  • ANSI/BHMA Certified
  • UL/cUL listed for fire rated doors
  • ADA compliant
  • 1101BF (non-hold open) and 1111BF (hold open) door closers are adjustable spring sizes 1 through 4
  • 1104BC (non-hold open) door closers are spring size 4
  • Non-handed
  • Full rack and pinion
  • Aluminum
  • Tri-packed: regular, parallel or top jamb mounting
  • Adjustable backcheck valve
  • Adjustable closing speed valve
  • Adjustable latching speed valve
  • Auxiliary door stop required
  • Sleeve nuts included with all models (1-3/4")
  • Warranty: 5 year limited
  • 1101BF closers available with or without cover

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra industrial door closers deliver professional-grade reliability with rugged construction and full rack and pinion operation rated for Grade 1 commercial applications. The 5 year limited warranty and comprehensive certifications including ANSI/BHMA, UL/cUL, and ADA compliance ensure dependable performance. Engineered for demanding commercial applications where consistent door control and long-term durability are essential.

Manufacturer Resources

1100 Series Door Closer

Product Specs

Series:
1100 Series
Subcategory:
Industrial Door Closers
Product Group:
Door Controls
Product Subgroup:
Door Closers - Surface Mounted
Product Type:
Surface Mounted Door Closers
Commercial/Residential:
Commercial
Grade:
Grade 1
Product Model:
YAL-1101BFCOV
Product Function:
Tri-Packed Non-Hold Open Arm
Product Size:
Adjustable 1-4
Product Category:
Door Controls
Department:
Door Hardware

Accentra 1101BFCOV 690 – Frequently Asked Questions

1) Can the Accentra 1101BFCOV be mounted parallel arm on the push side, or is it regular arm only?
It ships tri-packed, so the same carton covers regular arm (pull side), top jamb, and parallel arm mounting. You pick the mounting at install time rather than ordering a different part number, which is why it works well when you are standardizing a building and do not know yet which openings need push-side mounting.
2) Is the Accentra 1101BFCOV strong enough for a wide exterior door, or do I need a bigger closer?
Spring power is field adjustable through sizes 1 to 4, which covers interior openings up through typical entrance doors. If you need size 5 or 6 for a heavy or wide exterior door in a windy location, step to a 1-6 closer such as the BEST EHD9000 Series or the Norton Rixson 8501A, both adjustable 1-6.
3) Can I use the Accentra 1101BFCOV on a fire rated door?
Yes. The 1101BF is UL/cUL listed for fire rated doors and is a non-hold-open closer, which is what a fire door assembly requires. Do not substitute the 1111BF hold open version on a fire opening.
4) Does the 1101BFCOV closer stop the door, or do I still need a door stop?
You still need a stop. The 1101BF has an adjustable backcheck valve to cushion the swing, but an auxiliary door stop is required to limit the opening. Budget a wall or floor stop, or an overhead stop, on every opening.
5) Will the Accentra 1101BFCOV meet ADA opening force for an accessible entrance?
It is an ADA compliant barrier-free closer, and the size 1-4 spring adjustment is what lets you dial the opening force down to meet the accessible requirement on an interior door. Closing and latching speed valves are separate adjustments.
6) I need a hold open closer for a stockroom door. Is the 1101BF the right one?
No. The 1101BF is non-hold-open. For hold open in the same 1100 Series body with the same 1-4 spring adjustment, order the 1111BF instead.
7) What is the closest equivalent to the Accentra 1101BFCOV from another brand?
The Accentra 1101BFCOV is a Grade 1 surface closer with tri-packed regular, parallel or top jamb mounting, non-hold open arm, adjustable spring size 1-4, supplied with a cover. The Arrow DCN314 is the nearest match on arm and spring range - a Grade 1 surface closer with regular/parallel tri-pack arm and adjustable spring size 1-4 - but it is furnished less cover. The Dexter DCH1000 is a Grade 1 tri-mount closer (regular, parallel or top jamb) that includes a full cover. Both are worth confirming against the spring size called for on the opening.
8) I need a closer for a door heavier than a size 4 spring will handle - what should I use instead of the 1101BFCOV?
The Accentra 1101BFCOV tops out at an adjustable size 1-4 spring. For wider or heavier leaves, the Arrow DCN325 is a Grade 1 surface closer with the same regular/parallel tri-pack arm but an adjustable spring size 1-6, and the Norton Rixson 8501A is a Grade 1 tri-mount closer with an adjustable size 1-6 spring. The BEST EHD9000 Series is an extra heavy-duty Grade 1 surface closer with adjustable spring sizes 1-6.
9) The 1101BFCOV needs an auxiliary door stop - is there a closer that controls the opening swing instead?
The Accentra 1101BFCOV has an adjustable backcheck valve but still calls for an auxiliary door stop. Where you want the closer arm to take that duty, a slide track or jamb track closer is the usual answer: the Corbin Russwin DC5230 is a Grade 1 surface closer with a slide track arm as standard for pull side mounting, and the Dorma 8916-JT is a Grade 1 heavy-duty jamb track closer for frame face, pull side mounting with an adjustable size 1-6 spring. Both change the arm geometry, so verify frame face dimensions before substituting.
10) Do I have to order the Accentra 1101BF closer handed for left or right hand doors?
No handing to specify. The 1101BF is non-handed, and the tri-pack arm set covers either swing, so one part number stocks for every opening in the building.
11) Does the Accentra 1101BF closer come with through bolts for a 1-3/4 inch door?
Sleeve nuts sized for 1-3/4 inch doors are included with all models, so you can through-bolt a standard commercial door out of the box. Regular, parallel, and top jamb arm hardware is in the same carton.
12) What is the difference between the 1101BFCOV and the plain 1101BF?
Only the cover. The COV version ships with the full metal cover over the aluminum body; the 1101BF is also offered without one. Covers are the usual choice in lobbies and tenant corridors, while less-cover units are common in back-of-house and mechanical areas.
13) What else could I buy instead of the Accentra 1101BFCOV tri-pack closer?
Close equivalents in tri-mount Grade 1 form include the Dexter DCH1000 Series, which is tri-mount with a full cover, and the Norton Rixson 1601P, a Grade 1 tri-mount medium duty closer. The Arrow DCN314 is the less-cover tri-pack with the same 1-4 spring range if you do not want a cover. For heavier traffic, the Sargent 1431 Powerglide and the BEST HD8000 Series are Grade 1 heavy duty.
14) Is there a hold-open alternative to the Accentra 1101BFCOV tri-packed closer?
The 1101BFCOV uses a non-hold open arm, so the door closes on every cycle. For a tri-packed arm that holds the door open, the Orca Hardware BHDC1958HO/PA is a hold-open tri-packed closer, and the Orca BHDC1958DA/PA offers delayed action with a tri-packed non-hold open arm if you want a longer closing cycle rather than a hold. Check local fire code before specifying mechanical hold open on a rated opening.
15) Which surface closers are a step up in duty from the Accentra 1101BFCOV for a high-traffic entrance?
The Accentra 1101BFCOV is a Grade 1 aluminum closer with full rack and pinion and an adjustable size 1-4 spring. For heavier cycle counts, the Sargent 1431 Powerglide is a Grade 1 heavy-duty surface closer, the Falcon SC71A is a Grade 1 heavy-duty surface-mount closer, and the BEST HD8000 Series is a Grade 1 heavy-duty surface closer. The Sargent 281 Powerglide is heavy duty with a cast iron body rather than aluminum.
16) What is a lighter-duty or lower-grade alternative to the Accentra 1101BFCOV for an interior office door?
The Accentra 1101BFCOV is Grade 1 certified. Where a lower certification level is acceptable, the Cal-Royal 400 Series is a Grade 2 commercial hydraulic closer and the Falcon SC91A is a Grade 3 light-duty surface-mount cast aluminum closer. Staying at Grade 1, the BEST SL6000 Series and the Norton Rixson 160 Series are both Grade 1 light-duty surface closers with adjustable spring power. Note that Grade 1 is often required by institutional specifications, so confirm the drawing before stepping down.
17) What looks like a substitute for the Accentra 1101BFCOV but will not work?
A few items sit near surface closers in search results without being one. The Arrow DCN500DP is a parallel drop plate for the DCN500, a mounting accessory rather than a closer. The Stanley 327 and 341 are wardrobe pivots, and the Stanley 57-0100 is a box of steel machine screws for architectural hinges. Within real closers, the Calibre CA8001P is a parallel arm size 1 closer and the Calibre CA5501 is a standard arm closer, so neither carries the tri-packed arm or the adjustable 1-4 spring range the 1101BFCOV provides.
18) Which barrier-free closers compare with the Accentra 1101BFCOV for an ADA opening?
The Accentra 1101BFCOV is ADA compliant with adjustable closing speed, latching speed and backcheck valves. Comparable barrier-free options include the Cal-Royal 500S, a Grade 1 barrier free closer with adjustable back-check, the Cal-Royal N900PBF barrier free Grade 1 hydraulic surface closer, and the Calibre CA4001, a Grade 1 hydraulic closer with adjustable spring tension for ADA. The LCN 1250 Series is a light-duty ADA compliant closer in sizes 1-5 with all-weather fluid for exterior openings.
19) Are there Grade 1 closers with a size 1-4 range like the Accentra 1101BFCOV from other manufacturers?
Yes. The Accentra 1101BFCOV uses an adjustable size 1-4 spring, and the Dormakaba 7414 is a Grade 1 medium-duty 7400 Series closer in size 1-4. The Arrow DCN314 also covers size 1-4 as a Grade 1 tri-pack closer. If the specification allows a wider range, the LCN 1261 covers adjustable sizes 1-5 with a cast iron body.
20) What finishes does the Accentra 1101BFCOV closer cover come in?
Three: 689 aluminum painted, 690 dark bronze painted, and BSP black suede powder coat. 689 and 690 are the standard finishes to match existing closers across a building; BSP is the match for black storefront and black lever trim.
21) Is a Grade 1 closer like the Accentra 1101BF overkill for an apartment corridor door?
Grade 1 is the top ANSI/BHMA cycle and durability tier for closers, and the 1101BF is ANSI/BHMA certified Grade 1, so it is the right pick for high-traffic corridors, schools, and healthcare. If the opening is genuinely light residential traffic, a Grade 2 unit such as the Cal-Royal 400 Series costs less to standardize on, though most multifamily common-area doors are specified Grade 1.
22) Can the closing and latching speed be adjusted separately on the Accentra 1101BF?
Yes, they are independent valves: one for closing speed through the main sweep, one for latch speed in the last few degrees, plus a third for backcheck. That lets you slow a heavy door down without losing enough final push to throw the latch.
23) I need dark bronze or black closers to match existing hardware - what are my options against the Accentra 1101BFCOV?
The Accentra 1101BFCOV is offered in 689 aluminum painted, 690 dark bronze painted and BSP black suede powder coat, which covers the three finishes most commonly specified across a building. Among comparables, the DORMA 7303 Series standard duty Grade 1 closer is supplied in a painted finish and the LCN 1460T heavy-duty Grade 1 closer is offered in a powder coat finish. Confirm the exact finish code against the other doors before standardizing.
24) Is the Accentra 1101BF rack and pinion or a cam closer?
Full rack and pinion in an aluminum body. That is the conventional hydraulic arrangement, serviceable and predictable, as opposed to a cam-action unit sold for reduced opening force.
