Accentra 4400 Series Instituti...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$822.61
$435.20

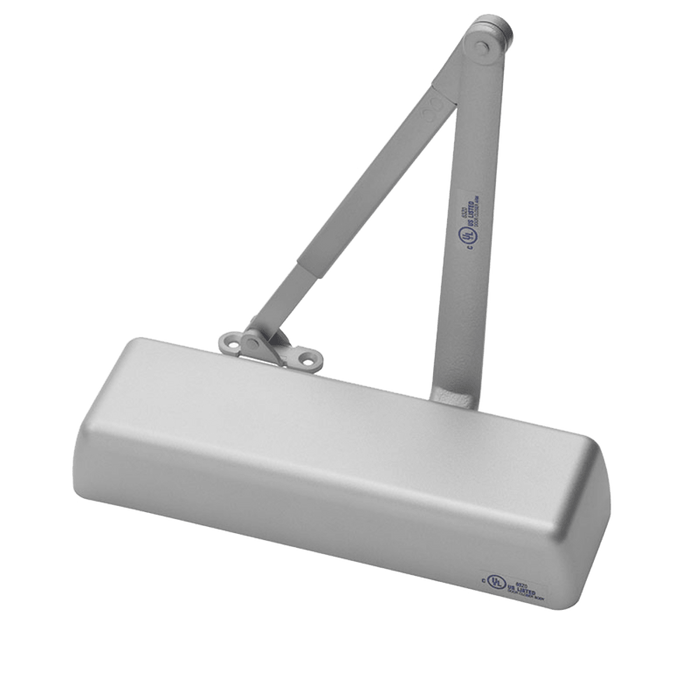

Yale 4400 Series Door Closer, Tri-Packed (Regular, Parallel, Top Jamb Mount), Non-Hold Open, Size 1-6

Accentra 4400 Series Institutional Door Closer with Tri-Pack Mounting Options, Size 1-6 Adjustable Spring

(No reviews yet) Write a Review

Model: 4400 689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$822.61
$435.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 4400 Series Institutional Door Closer with Tri-Pack Mounting Options, Size 1-6 Adjustable Spring

Professional Grade Door Control Solution for Commercial Applications

The Accentra 4400 Series Institutional Door Closer delivers superior performance and reliability with adjustable spring sizes 1 through 6 for versatile door weight compatibility. This tri-packed unit includes regular, parallel, and top jamb mounting configurations in a single package, featuring cast aluminum body construction and rack and pinion design. ANSI/BHMA Grade 1 certified and UL/cUL listed for fire rated doors, this closer exceeds 25 million cycles for long-term dependability in demanding commercial environments.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 Certified
  • UL/cUL listed for use on fire rated doors
  • Manufactured in an ISO 9001 facility
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6 (ADA compliant)
  • Tri-packed: regular, parallel, and top jamb mounting
  • Rack and pinion design
  • Staked valves
  • Separate and independent latch, sweep, and backcheck intensity valves
  • Non-handed
  • Self-drilling screws
  • 30 year limited warranty

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 4400 Series door closers deliver professional-grade reliability with cast aluminum construction and rack and pinion design rated to exceed 25 million cycles. Manufactured in an ISO 9001 facility with ANSI/BHMA Grade 1 certification and backed by a 30 year limited warranty for added confidence and protection. Engineered for demanding institutional applications where dependable performance and code compliance are essential.

Product Specs

Series:
4400 Series
Product Group:
Door Controls
Product Subgroup:
Door Closers - Surface Mounted
Product Type:
Surface Mounted Door Closers
Subcategory:
Institutional Door Closers
Commercial/Residential:
Commercial
Product Model:
YAL-4400
Product Function:
Tri-Packed Non-Hold Open Arm
Product Size:
Adjustable 1-6
Product Category:
Door Controls
Department:
Door Hardware

Accentra 4400 689 – Frequently Asked Questions

1) Can one Accentra 4400 closer be used for regular arm, parallel arm, and top jamb mounting?
Yes. The 4400 Series ships tri-packed, so the regular arm, parallel arm, and top jamb mounting hardware all come in the one carton. You decide at the door which side you are mounting on, pull side or push side, without ordering a different part number. It's also non-handed, so the same unit works on a left hand or right hand opening.
2) Is the Accentra 4400 door closer strong enough for a heavy exterior door, and can it still meet ADA opening force?
Spring power is field adjustable through sizes 1 to 6, which covers everything from a light interior door up to a wide or heavy exterior leaf. Dial it down at the low end of the range for ADA compliant opening force on interior barrier free openings, or up for wind load and heavier doors. One SKU covers the whole building instead of stocking separate sizes.
3) I need a closer that holds the door open. Is the Accentra 4400 the right one?
No. The 4400 here is supplied with a non-hold open arm, so the door always self closes. If you need hold open on a non-rated opening, look at the Orca Hardware BHDC1958 Series hold open door closer with parallel bracket instead. If you want the door to pause before closing rather than stay open, the Orca BHDC1958 delayed action version covers that.
4) What is the closest equivalent to the Accentra 4400 Series tri-pack door closer from another brand?
The Norton Rixson 8501A is the nearest match on paper: it is a Grade 1 tri-mount surface closer with an adjustable size 1-6 spring, the same adjustable 1-6 range and Grade 1 certification the Accentra 4400 carries, and the same tri-mount concept that lets one unit go regular, parallel, or top jamb. The Dexter DCH4000 is another Grade 1 tri-mount closer covering regular, parallel, or top jamb mounting. If the spec calls out a specific manufacturer, note that the 4400 is a size 1-6 adjustable and the Norton 8501A is rated medium duty.
5) I only need a closer for a light interior office door - is there something simpler than the Accentra 4400?
Yes. The Accentra 4400 is built for institutional openings with a 1-6 adjustable spring and Grade 1 certification. For lighter interior traffic, the Arrow DCN314 is a Grade 1 surface closer with a regular/parallel tri-pack arm and an adjustable spring size 1-4, rated light duty. The BEST SL6000 is a Grade 1 light duty surface closer with adjustable spring sizes, and the Falcon SC91A is a Grade 3 light duty cast aluminum surface closer. Confirm the door width and weight still fall inside the lighter spring range before you drop down.
6) The Accentra 4400 has a cast aluminum body - what should I use if I want a heavier body on an abusive exterior opening?
The Accentra 4400 uses a cast aluminum body. If you want more mass on a high-abuse or exterior door, the Sargent 281 Powerglide is a Grade 1 heavy duty surface closer with a cast iron body, and the LCN 1261 is a cast iron closer with adjustable spring sizes 1-5. For heavy duty in the same size 1-6 adjustable range, the BEST EHD9000 is an extra heavy-duty surface closer with adjustable spring sizes 1-6. All three are heavier-duty classifications than a cast aluminum institutional unit; the trade-off is weight and the mounting prep that goes with it.
7) My opening needs a hold open closer - can I use the Accentra 4400?
No. The Accentra 4400 ships with a tri-packed non-hold open arm, so it closes the door every cycle and will not stand it open. For a hold open opening, the Orca Hardware BHDC1958HO/PA is a tri-packed hold open arm closer, and the Stanley Security A45-501HL is a long hold open arm, standard top jamb. Note that hold open arms are generally not appropriate on fire rated openings, where the 4400's UL/cUL listed non-hold open arrangement is the one that belongs.
8) We standardize on Grade 1 closers across our schools - which alternates to the Accentra 4400 hold the same ANSI/BHMA grade?
The Accentra 4400 is ANSI/BHMA Grade 1 certified and UL/cUL listed for fire rated doors. Grade 1 alternates in the same surface-mounted class include the BEST HD8000 heavy duty, the BEST HD7000 medium duty, the Sargent 1431 Powerglide heavy duty, the Falcon SC71A heavy duty, the Norton Rixson 1601P medium duty, and the Dexter DCM1000 tri-mount. If your spec also calls for Grade 1, be aware the Cal-Royal 400 Series is Grade 2 and the Falcon SC91A is Grade 3, so those will not satisfy it.
9) The Accentra 4400 is an ADA compliant closer - what else covers a barrier free opening?
The Accentra 4400 uses adjustable spring sizes 1 through 6 described as ADA compliant, so it can be dialed down to meet opening force on an accessible door. Comparable barrier free options include the Cal-Royal 500S, a Grade 1 barrier free closer with adjustable back-check, the Cal-Royal N900PBF barrier free Grade 1 hydraulic closer, the Calibre CA4001 with adjustable spring tension for ADA, and the LCN 1250 with sizes 1-5 and all-weather fluid. Whichever you pick, the spring still has to be set low enough to hit the opening force your local code requires.
10) Is the Calibre CA9901 a direct swap for the Accentra 4400 tri-pack?
They are close but not identical on spring range. The Calibre CA9901 is a Grade 1 tri-pack arm ADA surface mount closer with size 2-5 adjustment, while the Accentra 4400 adjusts across sizes 1 through 6. If your openings sit inside the 2-5 band the CA9901 covers the same mounting flexibility; if you need a size 1 setting for a light accessible interior door or a size 6 for a wide heavy exterior leaf, the wider 1-6 range on the 4400 is the one that reaches. Also note the Calibre CA8001P is a parallel arm size 1 unit, fixed rather than tri-pack.
11) Will the Accentra 4400 hold up in a school or hospital corridor with constant traffic?
It's built for exactly that. The 4400 is an institutional grade closer, ANSI/BHMA Grade 1 certified and tested to exceed 25 million cycles, with a cast aluminum body and rack and pinion internals. Staked valves mean the hydraulic adjustments stay where you set them rather than backing out under heavy use.
12) What closing adjustments does the Accentra 4400 give me, and can I stop the door slamming into the wall?
Three separate, independent valves: latch speed, sweep speed, and backcheck intensity. Backcheck is the one that cushions the door before it hits a wall or a stop when someone throws it open, and because it adjusts independently you can tune it without changing closing speed. Latch and sweep let you slow the swing but still drive the latch home.
13) How does the Accentra 4400 compare with other Grade 1 tri-mount surface closers?
It sits with the institutional tri-mount group. Close equivalents we carry include the Norton Rixson 8501A, a Grade 1 tri-mount closer with the same size 1-6 adjustable spring, and the Dexter DCH4000, a Grade 1 tri-mount surface closer. If you want a full cover on the unit, the Dexter DCH1000 is the Grade 1 tri-mount with full cover. For a heavier duty step up, the BEST EHD9000 is an extra heavy duty Grade 1 closer, also sizes 1-6.
14) What fasteners come with the Accentra 4400 closer, or do I need to order screws separately?
Self-drilling screws are included with the closer, which saves pre-drilling on hollow metal frames and doors. What is not in the box is a drop plate or a blade stop spacer, which parallel arm installs sometimes need depending on the frame stop and soffit condition. Check the opening before you get on the ladder.
15) What is the difference between the Accentra 4400 tri-pack and a slide track or flat arm closer like the Dorma 8916-JT?
The Accentra 4400 is a tri-packed non-hold open arm closer, meaning a projecting arm mounted regular, parallel, or top jamb. The Dormakaba 8916-JT is a Grade 1 heavy duty closer with a flat non-hold open arm using a jamb track, frame face mounted on the pull side, adjustable size 1-6. The Corbin Russwin DC5230 is a Grade 1 surface closer with a slide track arm standard, pull side mounting. Track and flat arm units give a lower profile at the opening and different frame prep; they are not a drop-in for a standard projecting arm template.
16) Is the Accentra 4400 supplied with a cover, and what are the options if I want a covered or uncovered unit?
If the job wants a full metal cover, the Dexter DCH1000 is a Grade 1 tri-mount surface closer specified with a full cover, and the Design Hardware 316 Series is a tri-packed non-hold open closer supplied with a cover. If the job is a back-of-house opening where a cover is not wanted, the Arrow DCN325 is a Grade 1 surface closer specified less cover with a regular/parallel tri-pack arm and adjustable spring size 1-6, matching the Accentra 4400's 1-6 range.
17) What other size 1-6 adjustable closers can I cross against the Accentra 4400?
Closers covering the same full 1-6 adjustable band include the BEST EHD9000 extra heavy-duty, the LCN 1450 medium duty cast aluminum, the Imperial USA TC4300 Grade 1 heavy duty ADA closer, the Arrow DCN325 Grade 1 tri-pack supplied less cover, the Norton Rixson 8501A Grade 1 tri-mount, and the Dormakaba 8916-JT jamb track closer. The Accentra 4400 pairs that 1-6 range with tri-packed regular, parallel, and top jamb mounting in one box, which matters most when you are buying for mixed openings and do not want to sort arms by door.
18) I ordered an Accentra 4400 and got a drop plate quoted with it - is the Arrow DCN500DP a substitute part?
No. The Arrow DCN500DP is a parallel drop plate for the Arrow DCN500, an accessory bracket rather than a closer. The Accentra 4400 is the complete closer body and tri-packed arm, supplied for regular, parallel, or top jamb mounting. A drop plate for a different manufacturer's body will not template to the 4400, so do not order it as an add-on for this closer.
19) What should I use instead of the Accentra 4400 on an aluminum storefront door?
The Accentra 4400 is an institutional surface closer with a tri-packed arm for regular, parallel, or top jamb mounting on commercial openings. Narrow stile aluminum storefront usually wants a closer detailed for that frame: the Norton Rixson 1600 Series is a Grade 1 heavy duty aluminum storefront closer with tri-style mounting. Check the top rail and stile width against the closer template before committing either way.
20) What finishes does the Accentra 4400 door closer come in?
Seven: 689 aluminum painted, 690 dark bronze painted, 691 light bronze painted, 693 black painted, 694 medium bronze painted, 696 satin brass painted, and 613E dark oxidized satin bronze equivalent. For matching existing openings in a building, 689 and 690 are the two that most commercial hardware sets are specified in.
21) Is the Accentra 4400 a light duty closer or a full commercial unit?
Full commercial. It's a Grade 1 institutional closer rated to exceed 25 million cycles, not a light duty residential or light commercial unit. If your opening is a low traffic interior door and you're cost driven, lighter duty Grade 1 options exist such as the Arrow DCN325, also tri-pack with size 1-6 adjustable spring, or the BEST SL6000 Series.
