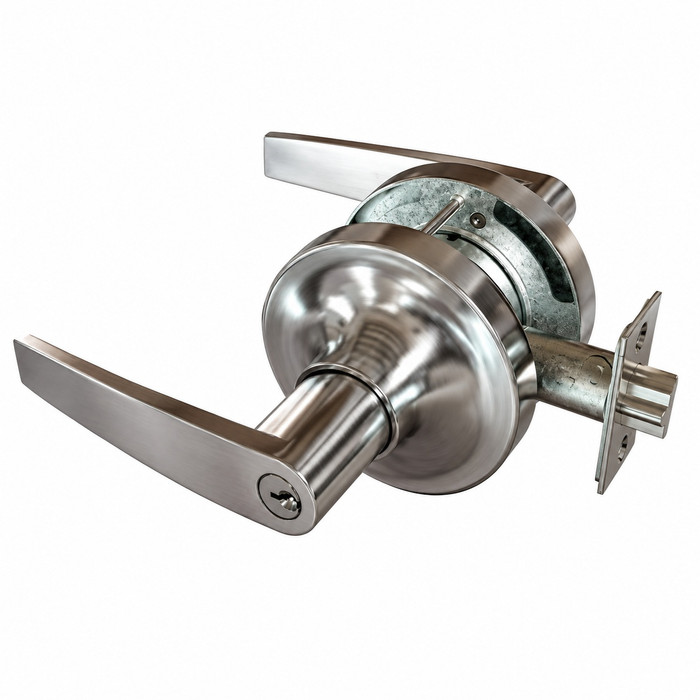

Yale 4605LN Grade 2 Storeroom or Closet Cylindrical Lever Lock Monroe Trim Design

Yale 4600LN Series Lever Locks

Yale 4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.

FEATURES & BENEFITS

• ANSI/BHMA: A156.2, Series 4000 Grade 2
• UL-cUL: UL-cUL fire-rated up to 3 hours
• Windstorm: 4600LN Certified (refer to local codes)
• Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated

• Backset: 2-3/4" standard; 2-3/8" to order

• Latchbolt: 1/2" stainless steel throw standard

• Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

• Door Thickness: Adjustable from 1-3/8" to 1-3/4".

• Fronts: Universal for both flat and beveled door edges

• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available. 6 and 7 pin SFIC available.

• Reversibility: Non-handed

• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible.

• Finishes: Available in 7 finishes

• Warranty: 3-year mechanical

CERTIFICATIONS

• ANSI/BHMA Grade 2 certified
• ADA compliant for ease of accessiblity

DOWNLOAD & RESOURCES

• Yale 4600LN Lever Locks Series Catalog
• Installation Instructions
