Yale Commercial Yale 4605LN Grade 2 Storeroom or Closet Cylindrical Lever Lock Pacific Beach Trim Design YAL-PB4605LN

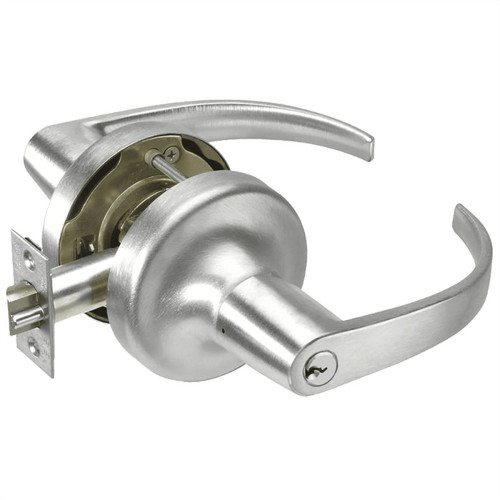

Accentra 4605LN Pacific Beach Grade 2 Storeroom Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: YAL-PB4605LN-626
From the 4600 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$167.00
$63.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 4605LN Pacific Beach Grade 2 Storeroom Cylindrical Lever Lock

Professional Commercial Cylindrical Lock Solution

The Accentra 4605LN Pacific Beach cylindrical lever lock delivers Grade 2 certified performance for commercial storeroom and closet applications. This heavy-duty lock features adjustable door thickness from 1-3/8" to 1-3/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA Grade 2 certified and UL fire-rated up to 3 hours for reliable commercial security.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL-cUL: UL-cUL fire-rated up to 3 hours
  • Windstorm: 4600LN Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
  • Backset: 2-3/4" standard; 2-3/8" to order
  • Latchbolt: 1/2" stainless steel throw standard
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/8" to 1-3/4".
  • Fronts: Universal for both flat and beveled door edges
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available. 6 and 7 pin SFIC available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible.
  • Finishes: Available in 7 finishes
  • Warranty: 3-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 2 certification for demanding commercial applications. UL fire-rated up to 3 hours with 3-year mechanical warranty provides code compliance and long-term protection. Engineered for consistent performance where dependable security and ease of operation are essential.

Product Specs

Series:
4600 Series
Subcategory:
Cylindrical
Grade:
Grade 2
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Storeroom/Closet
Product Attribute:
Cylindrical Locks
Product Model:
YAL-4605LN
Collection:
4600 Series
Product Function:
Storeroom
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-PB4605LN-626 – Frequently Asked Questions

1) Will the Accentra 4605LN storeroom lever fit a 1-3/8 inch door, or is it only for 1-3/4?
Both. The 4605LN Pacific Beach lever lock adjusts from 1-3/8 to 1-3/4 inch door thickness, so it covers the older interior doors and standard commercial doors alike. One thing to watch: the standard strike is a 1-1/4 inch curved lip sized for a 1-3/4 inch door. On a thinner door or a deep frame reveal, you may want a different lip length, which is a special order item.
2) What backset does the 4605LN come with, and can I get 2-3/8 for a narrow stile?
Ships 2-3/4 inch backset as standard, which is the usual commercial bore. A 2-3/8 inch backset is available but has to be specified on the order, so if you are boring a narrower stile or matching an existing 2-3/8 prep, call it out when you order rather than assuming.
3) Do I need to specify handing for the Accentra 4605LN lever lock?
No. The 4605LN is non-handed, and the front is universal for both flat and beveled door edges. The strike is reversible too. That makes it a straightforward stock item for a property manager keeping spares on the shelf, since one part number covers left and right hand openings.
4) How does a storeroom function lever actually behave day to day?
The 4605LN is a storeroom/closet function, so the outside lever is always locked and only the key retracts the latch. The inside lever is always free for egress. There is no button or turn to leave it unlocked, which is why it suits janitor closets, IT rooms, electrical rooms, and stockrooms where the door must never be left open by accident. If you need staff to be able to hold the door unlocked during business hours, an entry/office function is the one to buy instead.
5) Will the 1/2 inch latchbolt on this Accentra lock latch into my existing strike?
The 4605LN uses a 1/2 inch stainless steel latchbolt throw, which is the standard cylindrical lock projection, so it drops into an existing ANSI cylindrical strike prep in most cases. It also carries a guardbolt that deadlocks the latchbolt once the door closes, so the latch cannot be carded. If your frame has a badly worn or oversized strike pocket, replace the strike with the one supplied rather than fighting the alignment.
6) Is the Accentra 4605LN approved for a fire rated door?
Yes. The 4605LN is UL-cUL fire rated up to 3 hours, and it is ANSI/BHMA A156.2 Series 4000 Grade 2 certified. The 4600LN is also Windstorm certified, though you should check that against your local code for the opening in question. For a 3 hour stair or corridor door, the storeroom function is a common spec because the inside lever always allows egress.
7) Can I key the 4605LN into my building's existing small format interchangeable core system?
Yes. The 4605LN accepts 6 and 7 pin SFIC, so it can be brought into an existing interchangeable core master key system. As shipped standard it comes with a brass 6-pin conventional cylinder, keyed random, with two keys. Note the conventional cylinder is 6-pin only, 7-pin conventional is not offered, so if your system is 7-pin you need to go the SFIC route.
8) What else could I buy instead of the Accentra 4605LN storeroom lever?
Two close substitutes on a Grade 2 storeroom lever. The Hager 2580 with the Withnell lever is a Grade 2 storeroom cylindrical lock rated for 1-3/8 to 2 inch doors, so it covers a slightly thicker door than the 4605LN. The Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt and the same 1-3/8 to 1-3/4 inch door range. If you want to step up in duty rather than across, look at a Grade 1 cylindrical line instead.
9) What is a direct alternative to the Accentra 4605LN storeroom lever for a commercial closet or supply room?
The Hager 2580 with Withnell lever and the Cal-Royal AG05 are both Grade 2 storeroom function cylindrical lever locks, the same grade and function as the Accentra 4605LN Pacific Beach. The Hager 2580 fits doors 1-3/8 inch to 2 inch thick, and the Cal-Royal AG05 fits 1-3/8 inch to 1-3/4 inch, matching the 4605LN adjustable 1-3/8 inch to 1-3/4 inch range. Storeroom function on all three means the outside lever is always locked and the key retracts the latch, while the inside lever always allows egress.
10) I need a heavier duty storeroom-style lock than Grade 2 for a high traffic opening. What should I look at?
The Accentra 4605LN Pacific Beach is certified to ANSI/BHMA A156.2 Series 4000 Grade 2. For heavier traffic, the Dexter C1000 series is Grade 1 and includes keyed functions such as Classroom and Classroom Security for doors 1-3/8 inch to 1-3/4 inch, and an Asylum function for doors 1-3/8 inch to 2 inch. Note the C1000 keyed options are classroom and asylum functions rather than storeroom, so confirm the key-and-lever behavior matches what the opening needs before you spec it.
11) My door is 2 inches thick. Will the Accentra 4605LN work, or do I need something else?
The Accentra 4605LN Pacific Beach adjusts from 1-3/8 inch to 1-3/4 inch, so a 2 inch door is outside its range. Options that cover 2 inch doors include the Hager 2580 Grade 2 storeroom lever at 1-3/8 inch to 2 inch, the Dexter C1000 Asylum at 1-3/8 inch to 2 inch, and the Falcon K101 Grade 1 passage at 1-3/8 inch to 2-1/4 inch. Match the function as well as the thickness: only the Hager 2580 is a storeroom function.
12) What finishes does the Pacific Beach 4605LN lever come in, and which one matches the rest of my building?
Six finish choices: 605 bright brass, 606 satin brass, 613E dark oxidized satin bronze equivalent, 625 bright chrome, 626 satin chrome, and BSP black suede powder coat. For commercial work 626 satin chrome is the most commonly standardized finish across offices, schools, and healthcare, so if you are matching existing openings that is usually the one already on the doors.
13) Is Grade 2 enough for a school or hospital corridor, or should I be specifying Grade 1?
The 4605LN is ANSI/BHMA Grade 2, which suits commercial storerooms, closets, offices, and moderate-traffic openings. On a high-abuse opening such as a school corridor, a public restroom, or a 24/7 healthcare door, most institutional specs call for Grade 1. In that case look at the Corbin Russwin CL3100 Series vandal resistant cylindrical lever, which is Grade 1 and fire rated for 1-3/4 to 2 inch doors, or the Falcon K Series Grade 1 heavy duty line covering 1-3/8 to 2-1/4 inch doors.
14) I need matching non-keyed levers for the rest of the doors in the same run. What pairs with a 4605LN?
The 4605LN is the keyed storeroom function within the Accentra 4600 Series with Pacific Beach lever trim, so the same series covers the other functions if you want one lever design throughout. If you only need a matching-grade non-keyed lever from another line, the Falcon B101 is a Grade 2 non-handed passage cylindrical lever, and the BEST 7KC Series single dummy trim is a Grade 2 non-keyed lever for doors that need trim only with no latch.
15) The opening does not need to lock. What is the non-keyed version to order instead of the 4605LN?
The Accentra 4605LN Pacific Beach is a keyed single cylinder storeroom lock, so for a door that only needs latching, a passage function lever is the right substitute. Grade 2 passage cylindrical levers include the Falcon B101 non-handed medium duty, the Hager 2510 Withnell for 1-3/8 inch to 2 inch doors, and the Design Hardware J75 flat lever for 1-3/4 inch doors. If the traffic warrants Grade 1, the Falcon K101 and Falcon T101 are heavy duty passage levers.
16) Is a Hager 2525 or Cal-Royal AG00 entrance lever the same thing as the Accentra 4605LN?
No. The Accentra 4605LN Pacific Beach is a storeroom function lock, meaning the outside lever stays locked at all times and is retracted only by key. The Hager 2525 is a Grade 2 entrance function lever for 1-3/8 inch to 2 inch doors and the Cal-Royal AG00 is an entrance lever with a 6-pin Schlage C keyway and 2-3/8 inch backset. Entrance function allows the outside lever to be left unlocked from the inside, which is usually not what a supply room or storeroom spec calls for.
17) I need a classroom function lever instead of storeroom on the same style of door. What are the options?
The Accentra 4605LN Pacific Beach is built as a storeroom function. For classroom function, the Cal-Royal AG03 is a Grade 2 classroom lever with a 6-pin Schlage C keyway and 2-3/4 inch backset, which matches the 2-3/4 inch standard backset the 4605LN uses. In Grade 1, the Dexter C1000 classroom and classroom security levers are clutching designs for doors 1-3/8 inch to 1-3/4 inch.
18) Can I use a keyless pushbutton lever instead of the keyed Accentra 4605LN on a storage room?
That changes how the door is controlled. The Accentra 4605LN Pacific Beach uses a brass 6-pin keyed cylinder with two keys furnished, and 6 and 7 pin SFIC are available, so it drops into an existing key system. Keyless options include the Lockey 2835 mechanical pushbutton lever for doors 1-3/16 inch to 2 inch, the Lockey 1150 heavy duty keypad lever for 1-1/8 inch to 2 inch, and the Delaney LP250 Grade 2 electronic keypad leverlock. Those are code-entry devices rather than key-controlled, so they will not key alike with the rest of a cylinder-based facility system.
19) Is a Grade 3 residential lever an acceptable substitute for the Accentra 4605LN in a commercial building?
The Accentra 4605LN Pacific Beach is certified to ANSI/BHMA A156.2 Series 4000 Grade 2 and UL-cUL fire rated up to 3 hours. Grade 3 levers such as the Cal-Royal AUS00 entrance/office for 1-3/8 inch to 1-3/4 inch doors, the Kwikset 200BRNL Breton passage, and the Master Lock BC Series keyed entry are tested to a lower cycle and strength grade. On a commercial or fire-rated opening where the spec calls out Grade 2 and a fire rating, stay with the Grade 2 certified lock.
20) The opening needs electric access control rather than a mechanical key. What replaces the 4605LN?
The Accentra 4605LN Pacific Beach is a mechanical keyed cylindrical lever with no electrical provision. For access control, the Corbin Russwin CL33903 is a Grade 1 electrified fail safe cylindrical lever lock running on 12VAC/DC for doors 1-3/4 inch to 2 inch. Because it is fail safe, it unlocks on power loss, which is the opposite of the always-locked outside lever on a storeroom function, so verify that behavior is what the life safety plan requires.
21) What is the 4605LN chassis made of, and will it hold up in a warehouse?
The mechanism is heavy-gauge steel, die-cast, zinc-plated and chromated, with a stainless steel latchbolt. That construction plus the Grade 2 rating is aimed at commercial storerooms, warehouses, retail back-of-house, and multi-tenant residential service doors. For industrial doors seeing constant cart traffic or forced use, a Grade 1 chassis is the better call.
22) I need matching non-locking trim on adjacent doors to go with 4605LN storeroom locks. What pairs with it?
The Accentra 4605LN Pacific Beach is a keyed lever, so for an inactive leaf or a door that needs a pull only, a dummy trim is the matching piece. The BEST 7KC single dummy trim is a Grade 2 medium duty cylindrical lever dummy and the BEST 9K 1DT is a Grade 1 heavy duty version. The Callan Bentley is a Grade 2 dummy lever. Lever styling will differ from the Pacific Beach design, so confirm the aesthetic if the doors are in the same sightline.
23) Do I have a knob option if a lever is not wanted on a secured utility room?
The Accentra 4605LN Pacific Beach is a lever handle design. If a knob is preferred, the Arrow MK33 is a Grade 2 heavy duty asylum/institution/utility cylindrical lock with a ball knob and a conventional Schlage C keyway cylinder, and the Arrow HK11 is a Grade 2 turn-pushbutton entrance cylindrical lock with a ball knob for doors 1-3/8 inch to 1-3/4 inch. Keep in mind knobs do not meet ADA operable-hardware requirements where that applies.
