Yale Commercial Yale 5405LN Grade 1 Storeroom or Closet Cylindrical Lever Lock Pacific Beach Trim Design YAL-PB-5405LN

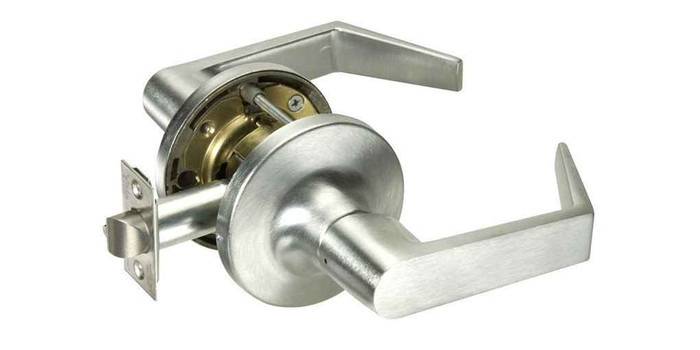

Accentra 5405LN Grade 1 Storeroom Cylindrical Lever Lock with Pacific Beach Trim Design

(No reviews yet) Write a Review

Model: PB-5405LN-626
From the 5400 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$930.93
$552.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

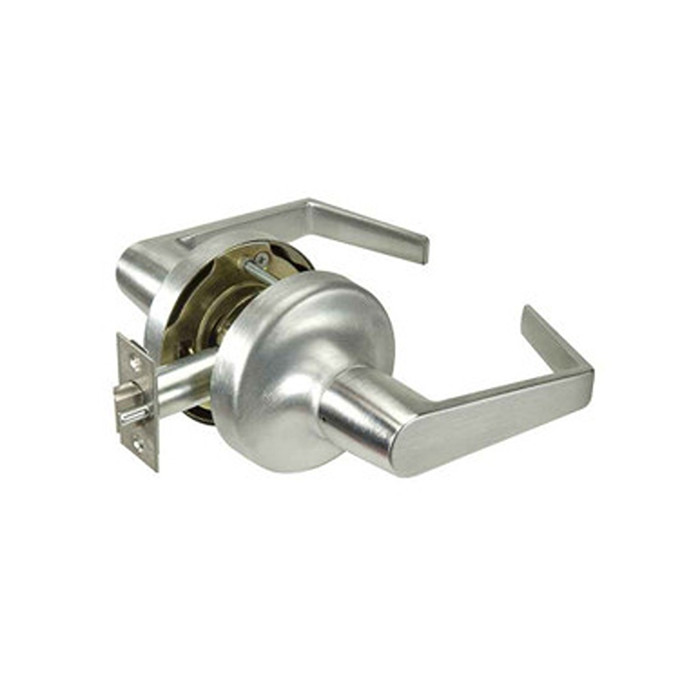

Accentra 5405LN Grade 1 Storeroom Cylindrical Lever Lock with Pacific Beach Trim Design

Heavy-Duty Commercial Grade Cylindrical Lockset

The Accentra 5405LN Grade 1 Storeroom Cylindrical Lever Lock delivers professional-grade security for commercial and industrial applications. This heavy-duty lockset features a 2-3/4" standard backset with adjustable door thickness from 1-3/4" to 2-1/4", 1/2" stainless steel latchbolt throw, and ANSI/BHMA Grade 1 certification. Built with heavy-gauge steel mechanism and zinc-plated dichromated finish for maximum durability and corrosion resistance.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order
  • Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2-1/4"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Lead Shielding: Available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other cylinder and keying options, see page 31.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 7-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. The 7-year mechanical warranty and UL/cUL fire rating up to 3 hours demonstrate the manufacturer's commitment to quality and safety. Engineered for demanding commercial applications where dependable performance and security are essential.

Product Specs

Series:
5400 Series
Subcategory:
Lever Locksets
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Storeroom
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5405LN
Collection:
5400 Series
Product Function:
Storeroom
Lever Design Name:
Monroe Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra PB-5405LN-626 – Frequently Asked Questions

1) Will the Accentra 5405LN storeroom lever fit a 2-inch thick door?
Yes. The 5405LN adjusts from 1-3/4 inches up to 2-1/4 inches of door thickness, so a 2 inch door is inside its range with no special order. Standard backset is 2-3/4 inches, which is the usual commercial bore spacing, and 3-3/4 inch or 5 inch extension links can be ordered for thicker stiles or unusual door prep.
2) What does storeroom function mean on the Accentra 5405LN, and is it the right lock for a supply room?
Storeroom function means the outside lever is always locked and is retracted by key only; the inside lever is always free for exit. There is no way to leave the outside unlocked, which is exactly what you want on supply rooms, electrical closets, IT rooms and mechanical spaces. It is a single cylinder keyed lock, so all key control is on the pull side.
3) Can I use the 5405LN lever lock on a fire-rated door?
Yes. The 5405LN is UL/cUL fire rated up to 3 hours and carries ANSI/BHMA A156.2 Series 4000 Grade 1 certification, so it suits labeled openings in stairwells, corridors and tenant separations. It is also windstorm certified, subject to your local code review.
4) Will the 5405LN latch into the strike already in my frame?
The standard latchbolt throws 1/2 inch of stainless steel with a 2-1/4 x 1-1/8 inch beveled front, and ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door. If your existing frame has a deeper strike pocket or an unusual lip length, a 3/4 inch throw latch, flat fronts and other lip lengths are all available to order. A guardbolt deadlocks the latchbolt whenever the door is closed.
5) How does the Accentra 5405LN compare with a Grade 2 storeroom lever like the Hager 2580 or Cal-Royal AG05?
All three are storeroom function cylindrical levers, but the 5405LN is ANSI/BHMA Grade 1 while the Hager 2580 with Withnell lever and the Cal-Royal AG05 with deadlocking latchbolt are both Grade 2. Grade 1 is the heavier cycle and strength tier, which is what most institutional and government specs call for. The Hager 2580 covers 1-3/8 to 2 inch doors and the Cal-Royal AG05 covers 1-3/8 to 1-3/4 inch, so either is the option if your door is thinner than the 1-3/4 inch minimum on the 5405LN.
6) I need Grade 1 but the door does not need to lock - what should I use instead of the 5405LN?
Drop to a Grade 1 passage lever and skip the cylinder entirely. The Falcon K101 is a Grade 1 passage cylindrical lock with non-handed levers, fire rated, and fits doors 1-3/8 inch to 2-1/4 inch. The Corbin Russwin CL3110 is a Grade 1 vandal-resistant passage/closet lever, fire rated, for 1-3/4 inch to 2 inch doors, and the Dexter C1000 passage is Grade 1 with clutching levers for 1-3/8 inch to 1-3/4 inch doors. All three hold the heavy-duty grade the Accentra 5405LN carries without the keyed storeroom cylinder.
7) What is the closest storeroom-function lever lock to the Accentra 5405LN from another brand?
For storeroom function in a lever lock, the two closest alternatives are the Cal-Royal AG05, a Grade 2 storeroom leverset with a deadlocking latchbolt, and the Hager 2580 with the Withnell lever, also a Grade 2 storeroom cylindrical lock. Both keep the same operating behavior the Accentra 5405LN gives you - key retracts the latch, lever always free from the inside - but the 5405LN is certified ANSI/BHMA Grade 1 while both of those are Grade 2. The Cal-Royal AG05 covers doors 1-3/8 inch to 1-3/4 inch and the Hager 2580 covers 1-3/8 inch to 2 inch, where the 5405LN adjusts from 1-3/4 inch to 2-1/4 inch.
8) Will the Accentra 5405LN work on a 1-3/8 inch door, and what fits if it will not?
The Accentra 5405LN adjusts from 1-3/4 inch to 2-1/4 inch, so a 1-3/8 inch door is below its range. For a thinner door, the Cal-Royal AG05 Grade 2 storeroom leverset covers 1-3/8 inch to 1-3/4 inch, and the Hager 2580 Grade 2 storeroom lock with Withnell lever covers 1-3/8 inch to 2 inch. If Grade 1 matters more than the storeroom function, the Falcon K101 passage lever spans 1-3/8 inch to 2-1/4 inch.
9) The opening needs classroom function, not storeroom - what replaces the 5405LN?
Storeroom keeps the outside lever locked at all times, which is not what a classroom door wants. For classroom function in a lever lock, the Dexter C1000 classroom is Grade 1 with clutching keyed levers for 1-3/8 inch to 1-3/4 inch doors, and the Dexter C1000 classroom security is the same Grade 1 series with the classroom security function. The Cal-Royal AG03 classroom lever is a Grade 2 option with a 6-pin Schlage C keyway and 2-3/4 inch backset, matching the 2-3/4 inch backset the Accentra 5405LN uses as standard.
10) Do I need to specify handing when ordering the Accentra 5405LN?
No. The 5405LN is non-handed and the strike is reversible, so one lock covers left and right hand openings. For a property manager buying a case of them across a building, that means a single part number stocks every door.
11) What cylinder and keying comes with the Accentra 5405LN storeroom lock?
It ships with a brass 6-pin keyed-random cylinder and two keys. A 7-pin cylinder is available to order if you are tying the opening into an existing masterkey system that needs the extra pin. Order keyed alike or to a specific keyway if you are standardizing a building rather than taking the random keying.
12) Can the Accentra 5405LN be ordered with lead shielding for an X-ray room?
Yes, lead shielding is an available-to-order option on the 5400LN series, which is what healthcare buyers need for radiology and imaging suite doors. It is a factory option, not a field add, so it has to be specified on the order.
13) Is the Corbin Russwin CL33903 a substitute for the Accentra 5405LN?
No. The CL33903 is a Grade 1 electrified fail-safe cylindrical lever running on 12VAC/DC, so it needs power transfer through the door and frame and ties into an access control system. The Accentra 5405LN is a purely mechanical keyed storeroom lever with a brass 6-pin cylinder. They share Grade 1 and the cylindrical format, but the CL33903 is only the right part if the opening is being wired.
14) Can I use a keypad lever instead of the keyed 5405LN storeroom lock?
If you want to get rid of keys, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for doors 1-3/16 inch to 2 inch, and the Lockey 1150 is a heavy-duty mechanical keypad lever set with adjustable backset for 1-1/8 inch to 2 inch doors. The Delaney LP250 is an electronic keypad leverlock rated Grade 2. Note these are code-entry devices rather than the Grade 1 key-in-lever storeroom function the Accentra 5405LN provides, so check them against any Grade 1 requirement on the spec.
15) What do I order for the inactive leaf next to a door with the 5405LN?
A dummy trim, not another lockset. The BEST 9K Series 1DT is a Grade 1 heavy-duty non-keyed single dummy trim cylindrical lever, which keeps the same Grade 1 level as the Accentra 5405LN on the active leaf. The BEST 7KC Series 1DT is the medium-duty Grade 2 single dummy equivalent. Both are trim only - no latch, no cylinder.
16) Is a Grade 2 or Grade 3 entry lever an acceptable stand-in for the Accentra 5405LN?
It depends what the drawing calls for. The Accentra 5405LN is certified ANSI/BHMA A156.2 Series 4000 Grade 1 and UL/cUL fire rated up to 3 hours, so on a spec that names Grade 1 it cannot be swapped for a lighter lock. If the opening is light-traffic and not spec-driven, the Hager 2525 Grade 2 commercial entry lever covers 1-3/8 inch to 2 inch doors, the Falcon B511CP6D is a Grade 2 medium-duty entry/office lever, and the Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body for 1-3/8 inch to 1-3/4 inch doors. All three are entry/office rather than storeroom function.
17) For a utility or patient-room door, is the 5405LN the right function or is there a better choice?
Storeroom leaves the outside lever locked with no way to unlock it from the lever, which suits closets and supply rooms. For institutional or utility openings that call for asylum function, the Dexter C1000 asylum (F87) is a Grade 1 cylindrical lock covering 1-3/8 inch to 2 inch doors, and the Arrow MK33-BD-CS is a heavy-duty Grade 2 asylum lock with a ball knob and conventional Schlage C keyway cylinder. Asylum function keys both sides, which storeroom does not.
18) Which finishes does the Accentra 5405LN Monroe lever come in?
Nine finish choices are offered: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, plus black suede and white suede powder coat. PVD is standard on 605 and 606, which is the one to pick for exterior or high-wear openings where plated brass would dull. The lever design is the Monroe lever on Pacific Beach trim.
19) Is the Accentra 5405LN built for high-traffic commercial use or is it a residential lock?
Strictly commercial. The mechanism is heavy-gauge steel, zinc plated and dichromated for corrosion resistance, and it is certified to ANSI/BHMA A156.2 Series 4000 Grade 1, the top tier for bored locks. Residential-grade comparisons like the Kwikset 200BRNL or Master Lock RL series are Grade 3 and are not intended for the cycle counts a school or hospital corridor sees.
20) I need a residential-looking lever on an interior door instead of the commercial 5405LN - what are the options?
The Accentra 5405LN is catalogued for commercial use with a Grade 1 Monroe lever on Pacific Beach trim. For decorative interior work, the Baldwin Estate 5103 lever on the 5048 rose comes in passage, privacy, and left- or right-hand half dummy versions, and the Deltana Manchester 6201, Morant 6411, and Linstead 6431 entry levers all fit doors 1-3/8 inch to 2 inch. Bravura offers Grade 2 passage leversets in the Miramar, Atlanta, Orlando, and square-trim Tampa designs. None of these carry the Grade 1 storeroom function.
21) Does the Corbin Russwin 585F715 lever work as a replacement trim for the Accentra 5405LN?
No. The 585F715 is a Grade 1 lock lever built for ED8000 pushpad exit devices and the CL3300 cylindrical lock series on 1-3/4 inch to 2 inch doors, so it is exit device and Corbin trim, not Accentra. The Accentra 5405LN is a complete cylindrical lever lockset with its own Monroe lever on Pacific Beach trim, latch, and cylinder.
