Accentra 5404LN Grade 1 Storer...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$930.93
$528.05

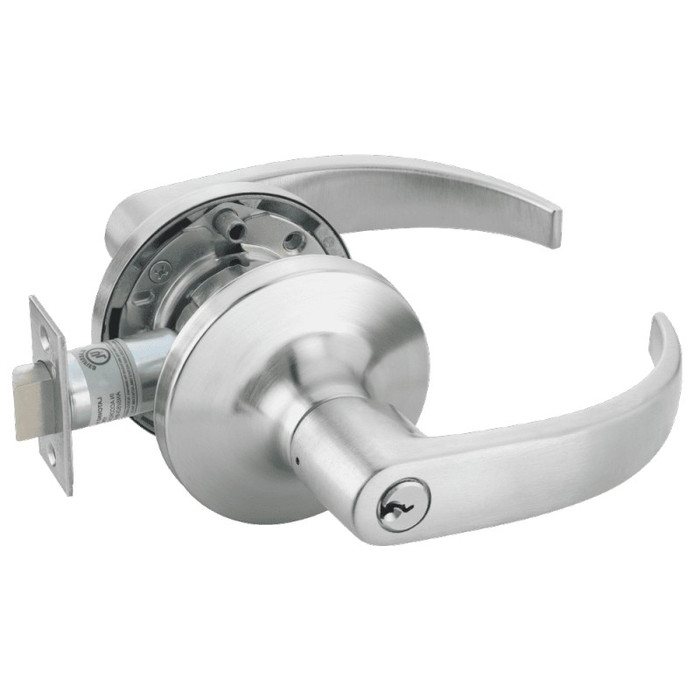

Yale Commercial Yale 5404LN Grade 1 Entry Cylindrical Lever Lock Pacific Beach Trim Design YAL-PB-5404LN

Accentra 5404LN Grade 1 Storeroom/Closet Cylindrical Lever Lock with Pacific Beach Trim Design

(No reviews yet) Write a Review

Model: PB-5404LN-626
From the 5400 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$930.93
$528.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5404LN Grade 1 Cylindrical Lever Lock with Pacific Beach Trim Design

Heavy-Duty Commercial Grade Cylindrical Lockset

The Accentra 5404LN Grade 1 Cylindrical Lever Lock delivers professional-grade security and reliability for demanding commercial applications. This heavy-duty lockset features adjustable door thickness from 1-3/4" to 2-1/4", 2-3/4" standard backset with extension options, and 1/2" stainless steel latchbolt throw. ANSI/BHMA Grade 1 certified and UL/cUL fire-rated up to 3 hours, this lockset meets the highest industry standards for commercial door hardware.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order
  • Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2-1/4"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Lead Shielding: Available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other cylinder and keying options, see page 31.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 7-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2-1/4", backset requirements, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for the most demanding commercial applications. Backed by a 7-year mechanical warranty and comprehensive fire safety certifications, this lockset provides the dependable performance required in high-traffic commercial environments. Engineered for demanding commercial applications where dependable performance is essential.

Product Specs

Series:
5400 Series
Subcategory:
Lever Locksets
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5404LN
Collection:
5400 Series
Product Function:
Entrance
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra PB-5404LN-626 – Frequently Asked Questions

1) Will the Accentra 5404LN cylindrical lever lock fit a 2-inch thick door?
Yes. The 5404LN adjusts from 1-3/4 inch through 2-1/4 inch door thickness, so a 2 inch door is inside the standard range with no special order. Doors thinner than 1-3/4 inch are outside what this lock covers.
2) What backset does the 5404LN come with, and can it work on a wide-stile or unusual door?
Standard backset is 2-3/4 inches, which is the usual commercial bored-door prep. For doors prepped deeper, extension links are available to order in 3-3/4 inch and 5 inch backsets. Specify the extension at time of order, since the standard carton ships 2-3/4.
3) Will the 5404LN latch into the strike already in my frame?
Standard throw on the 5404LN is a 1/2 inch stainless steel latchbolt with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door. If your frame has a deeper strike pocket or a gap that needs more reach, a 3/4 inch throw is available to order, and other lip lengths can be specified. All strikes are reversible, so the existing frame handing is not an obstacle.
4) Do I have to specify handing when ordering the Accentra 5404LN?
No handing to call out. The 5404LN is non-handed and fully reversible, and the strike is reversible too, so one part number covers left and right hand openings. For a property manager stocking spares across a building, that means a single SKU per finish.
5) Can the Accentra 5404LN be used on a fire-rated door?
Yes. The 5404LN carries UL/cUL fire ratings up to 3 hours and is ANSI/BHMA A156.2 Series 4000 Grade 1. It is also windstorm certified, subject to local code review. That combination suits it to stair doors, corridor doors and storage rooms in schools, hospitals and government buildings.
6) How does the 5404LN storeroom function actually behave day to day?
Outside lever is always locked and requires a key to retract the latch every time. Inside lever is always free for egress. The latch is deadlocked by a guardbolt whenever the door is closed, which blocks carding the latch. That is why storeroom is the usual choice for mechanical rooms, supply closets and IT rooms where the door must never be left unsecured by accident.
7) What cylinder and keying comes with the Accentra 5404LN, and can I key it into my existing system?
It ships with a brass 6-pin keyed-random cylinder and two keys. A 7-pin cylinder is available to order, and other cylinder and keying options can be specified so the lock can be brought into an existing masterkey system rather than left keyed random. Call the keying out on the order; keyed random is what arrives otherwise.
8) What is a Grade 2 alternative to the Accentra 5404LN storeroom lever for a lower-traffic storage door?
The Hager 2580 with Withnell lever is a Grade 2 cylindrical storeroom lock that fits doors 1-3/8 inch to 2 inch thick. The Cal-Royal AG05 is also a Grade 2 storeroom leverset with a deadlocking latchbolt, for doors 1-3/8 inch to 1-3/4 inch. The Accentra 5404LN is ANSI/BHMA Grade 1, adjusts for 1-3/4 inch to 2-1/4 inch doors, and carries UL/cUL fire ratings up to 3 hours, so on thicker doors or fire-rated openings the 5404LN is the one that covers the range.
9) I need the same Grade 1 heavy-duty build as the Accentra 5404LN but the door does not need to lock. What should I order?
For a non-keyed opening, the Falcon K101 is a Grade 1 heavy-duty passage cylindrical lock, fire rated, with non-handed levers and a 1-3/8 inch to 2-1/4 inch door thickness range that matches the 5404LN's 1-3/4 inch to 2-1/4 inch adjustment at the top end. The Corbin Russwin CL3110 is another Grade 1 passage/closet lever lock, vandal resistant and fire rated, for 1-3/4 inch to 2 inch doors. Both leave the lever free at all times, where the 5404LN is a keyed storeroom/closet function.
10) The classroom doors need keyed control from the corridor side rather than storeroom function. What is the equivalent to the Accentra 5404LN?
The Dexter C1000 classroom cylindrical lever lock is Grade 1, clutching and keyed, for doors 1-3/8 inch to 1-3/4 inch, and the C1000 classroom security version adds inside keyed control. Cal-Royal AG03 is a classroom lever in the AG Series with a 6-pin Schlage C keyway and 2-3/4 inch backset, which matches the 5404LN's 2-3/4 inch standard backset. The 5404LN itself is a storeroom/closet function, where the outside lever is always locked and the key retracts the latch.
11) What finishes does the Accentra 5404LN Pacific Beach lever come in?
Nine finish choices are orderable: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, plus BSP black suede powder coat and WSP white suede powder coat. PVD is standard on 605 and 606, which is what you want in coastal or high-touch areas where lacquer brass rubs through.
12) What is the front on the 5404LN, and can I get a flat front for a metal door?
Standard is a 2-1/4 x 1-1/8 inch beveled front, which matches the common commercial edge prep. Flat fronts are available to order for square-edge doors. Lead shielding is also an option to order, which is the one to specify for radiology and imaging suites.
13) Is there a Grade 1 storeroom lever from another brand I could spec instead of the Accentra 5404LN?
Within Grade 1 cylindrical levers, Corbin Russwin's CL3100 Series is the closest heavy-duty family we carry, though the CL3110 we list is the passage/closet version and covers 1-3/4 to 2 inch doors. If the opening is lighter duty, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 to 1-3/4 inch doors, and the Hager 2580 is a Grade 2 storeroom lever for 1-3/8 to 2 inch doors. Neither Grade 2 option reaches the 2-1/4 inch door thickness the 5404LN handles.
14) I need matching levers on doors that should not lock. What pairs with the 5404LN?
The 5404LN is keyed storeroom only. For corridor or closet doors in the same building you would use a passage lever, and for a door with no latch at all a dummy trim. In Grade 1 we carry the Falcon K101 passage lever, which covers 1-3/8 to 2-1/4 inch doors and is fire rated, and the BEST 9K Series 1DT single dummy trim. Trim style will not match Pacific Beach across brands, so if appearance matters across the fleet, order the matching passage and dummy functions from the Accentra 5400LN family.
15) Is the Accentra 5404LN heavy enough for a high-traffic school or apartment building?
It is built for that. The mechanism is heavy-gauge steel, zinc plated and dichromated, and the lock is certified to ANSI/BHMA A156.2 Series 4000 Grade 1, the top commercial duty level. Grade 3 residential-style levers like the Kwikset 200BRNL or Master Lock RL Series are not rated for that kind of cycle count.
16) Is the 5404LN a cylindrical lock or a mortise lock, and what prep does it need?
It is a bored cylindrical lever lock, so the door takes a standard cross-bore and edge bore rather than a mortise pocket. Use the manufacturer template to lay out the bore at the 2-3/4 inch backset, drill the edge for the latch, and mortise only for the 2-1/4 x 1-1/8 inch front. A retrofit onto an existing mortise-prepped door is not a drop-in.
17) Is a Kwikset or Callan lever an acceptable substitute for the Accentra 5404LN on a commercial corridor?
Those are built to a different duty level. The Kwikset 200BRNL Breton passage lever and the 300BRNL Breton privacy lever are Grade 3 for doors 1-3/8 inch to 1-3/4 inch, and the Callan Artino and Bennett entrance leversets are Grade 3 as well. The Accentra 5404LN is ANSI/BHMA A156.2 Series 4000 Grade 1 with a heavy-gauge steel mechanism and UL/cUL fire rating up to 3 hours, which is the specification normally written for commercial corridor and institutional openings.
18) What do I order to match the Accentra 5404LN lever on doors that only need a pull, with no latch?
For a non-latching opening, the BEST 9K Series 1DT single dummy trim is a Grade 1 heavy-duty non-keyed cylindrical lever trim, and the BEST 7KC Series 1DT is the medium-duty Grade 2 equivalent. Dummy trim mounts to the door face with no latch or bore-through mechanism, unlike the 5404LN, which is a keyed cylindrical lockset with a 1/2 inch stainless steel latchbolt throw and guardbolt.
19) The storage room needs keyless code entry instead of a key. What replaces the Accentra 5404LN?
The Lockey 2835 mechanical pushbutton keyless lever lock is ADA compliant and fits doors 1 3/16 inch to 2 inch, with a double-combination version, the 2835DC. The Lockey 1150 heavy duty mechanical keypad lever set covers 1-1/8 inch to 2 inch doors and offers an adjustable-backset version. The Delaney LP250 is an electronic keypad leverlock at Grade 2. The Accentra 5404LN uses a brass 6-pin keyed cylinder with two keys furnished, so choosing a keypad unit takes the opening off the key system entirely.
20) Can I use the Accentra 5404LN on an access-controlled door, or do I need an electrified lever?
The Accentra 5404LN is a mechanical storeroom/closet cylindrical lever lock keyed with a brass 6-pin cylinder, with no electrical provision. For access control, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever running on 12VAC/DC for doors 1-3/4 inch to 2 inch, offered with the NZ lever and D rose and in a keyed version. That covers the same Grade 1 duty level on a similar door thickness range while accepting a signal from the access system.
21) What is the difference between the Accentra 5404LN and an entrance/office function lever like the Falcon B511 or Hager 2525?
Function is the difference. The Falcon B511CP6D is a Grade 2 medium-duty cylindrical lever with entry/office function, and the Hager 2525 is a Grade 2 commercial cylindrical entry lock for doors 1-3/8 inch to 2 inch. Entrance/office functions allow the outside lever to be left unlocked for daytime use. The 5404LN is a Grade 1 storeroom/closet lock whose outside lever stays locked at all times and is retracted by key only, and it is adjustable for 1-3/4 inch to 2-1/4 inch doors.
22) The opening is a restroom or bedroom door. Is the Accentra 5404LN the right lock?
No, a privacy function is what that opening calls for. The Arrow MK02-TA is a privacy cylindrical lock with a Tudor knob, fire rated, for doors 1-3/4 inch to 2 inch, and the Hager 2540 with Withnell lever is a Grade 2 privacy cylindrical lock for 1-3/8 inch to 2 inch doors. The Accentra 5404LN is a keyed storeroom/closet lever lock, which has no inside thumbturn for occupant privacy.
23) For a behavioral health or utility room, is the Accentra 5404LN suitable or should I use an asylum function lock?
Asylum function keys from both sides, which the 5404LN does not do. The Dexter C1000 asylum lock (F87) is Grade 1 for doors 1-3/8 inch to 2 inch, and the Arrow MK33-BD-CS is a heavy-duty asylum/institution/utility cylindrical lock with a ball knob and a conventional cylinder in Schlage C keyway. The Accentra 5404LN is a storeroom/closet function with the key operating the outside only, on doors 1-3/4 inch to 2-1/4 inch.
24) We want decorative levers in the office suite and Accentra 5404LN hardware on the back-of-house doors. What pairs with it aesthetically?
Decorative options include the Deltana 5851 Claremont, 6201 Manchester, 6411 Morant and 6431 Linstead entry levers, with the Manchester, Morant and Linstead fitting doors 1-3/8 inch to 2 inch. The Baldwin Estate 5103 lever with 5048 rose comes in passage, privacy and half dummy for left and right hand. Those are residential-style entry and non-keyed trims; the Accentra 5404LN is a commercial Grade 1 storeroom lockset with the Pacific Beach lever, offered in finishes including 605 bright brass, 626 satin chrome and 619 satin nickel to coordinate.
25) Is the Accentra 5404LN interchangeable with a knob-style lockset like the Arrow HK11?
They mount similarly as cylindrical locks but the trim differs. The Arrow HK11-BB is a turn-pushbutton entrance cylindrical lock with a ball knob and conventional cylinder, for doors 1-3/8 inch to 1-3/4 inch. The Accentra 5404LN uses a Pacific Beach lever, which is the trim style generally specified where ADA operable hardware is required, and it adjusts to doors up to 2-1/4 inch thick.
