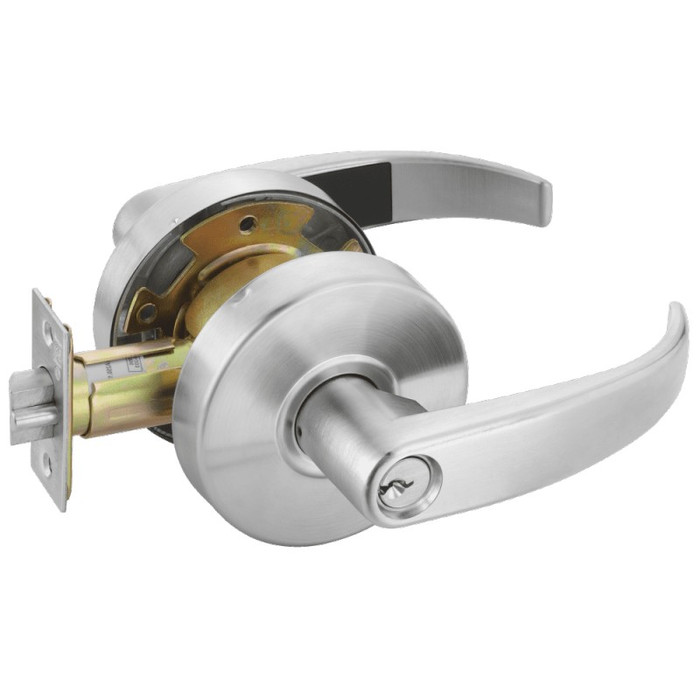

Accentra 4707LN Grade 1 Cylindrical Lever Lock with Pacific Beach Trim Design

Accentra 4707LN Grade 1 Cylindrical Lever Lock with Pacific Beach Trim Design

Professional-Grade Commercial Entrance Lock Solution

The Accentra 4707LN cylindrical lever lock delivers Grade 1 performance for demanding commercial applications with Pacific Beach trim design. This entrance function lock features adjustable door thickness from 1-3/8" to 1-3/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA Grade 1 certified and UL fire-rated up to 3 hours, this lock provides reliable security with heavy-gauge steel die-cast mechanism and zinc-plated chromated finish for long-lasting durability.

Professional Features & Benefits

• ANSI/BHMA: A156.2, Series 4000 Grade 1
• UL-cUL: UL-cUL fire-rated up to 3 hours
• Windstorm: 4700LN Certified (refer to local codes)
• Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated

• Backset: 2-3/4" standard

• Latchbolt: 1/2" stainless steel throw standard

• Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

• Door Thickness: 4700LN adjustable from 1-3/8" to 1-3/4". 4700 adjustable from 1-3/4" to 2"

• Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order

• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.

• Reversibility: Non-handed

• Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard. Optional T-strike available to order for 4700LN.

• Finishes: 4700LN available in 7 finishes, 4700 available in satin stainless steel (630) only.

• Warranty: 5-year mechanical

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 1-3/4", 2-3/4" backset, and proper door handing.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for cylindrical lock installation.
3. Prepare door by drilling required 2-1/8" cross bore and 1" edge bore holes per manufacturer specifications and routing for 2-1/4" x 1-1/8" beveled front.
4. Install all mounting hardware including mechanism, levers, and cylinders securing the device to door per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth lever operation throughout the full range of motion.
6. Test lock operation including latchbolt throw, guardbolt engagement, and key function to verify proper installation and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 4700LN cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel die-cast construction and zinc-plated chromated mechanism rated for Grade 1 commercial applications. UL fire-rated up to 3 hours with comprehensive 5-year mechanical warranty coverage. Engineered for demanding commercial applications where dependable security performance and code compliance are essential.
