Accentra 4707LN Grade 1 Entry ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$620.00
$337.82

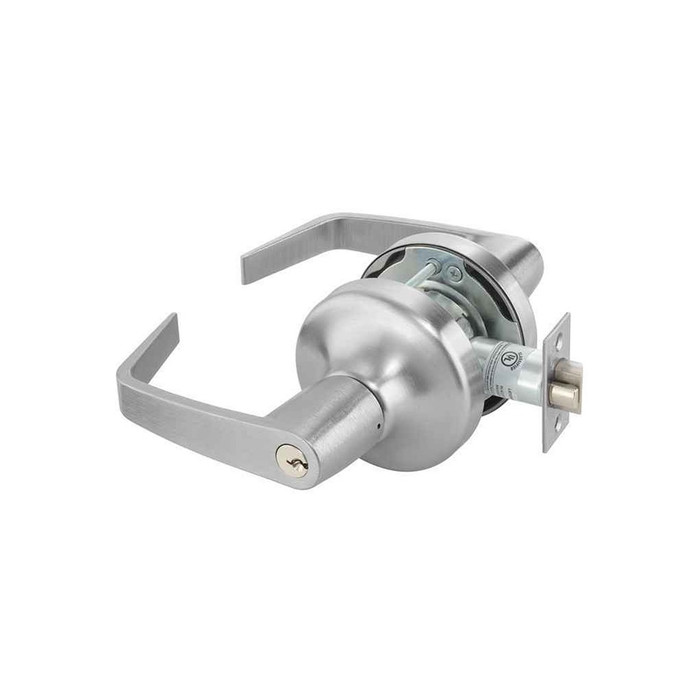

Yale Commercial Yale 4707LN Grade 1 Entry Cylindrical Lever Lock Augusta Trim Design YAL-AU4707LN

Accentra 4707LN Grade 1 Entry Cylindrical Lever Lock with Augusta Trim Design

(No reviews yet) Write a Review

Model: YAL-AU4707LN-605
From the 4700 Series Collection
Selected Finish is
Selected Cylinder is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$620.00
$337.82
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 4707LN Grade 1 Cylindrical Lever Lock with Augusta Trim Design

Professional-Grade Commercial Entry Lock Solution

The Accentra 4707LN cylindrical lever lock delivers Grade 1 performance for demanding commercial applications with Augusta trim design. This heavy-duty lock features adjustable door thickness from 1-3/8" to 1-3/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA Grade 1 certified and UL fire-rated up to 3 hours, this entrance function lock provides reliable security with 5-year mechanical warranty coverage.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL-cUL: UL-cUL fire-rated up to 3 hours
  • Windstorm: 4700LN Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
  • Backset: 2-3/4" standard
  • Latchbolt: 1/2" stainless steel throw standard
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: 4700LN adjustable from 1-3/8" to 1-3/4". 4700 adjustable from 1-3/4" to 2"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard. Optional T-strike available to order for 4700LN.
  • Finishes: 4700LN available in 7 finishes, 4700 available in satin stainless steel (630) only.
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 4700LN cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for the most demanding commercial applications. UL fire-rated up to 3 hours with 5-year mechanical warranty coverage ensures long-term performance and code compliance. Engineered for demanding commercial applications where dependable security and consistent operation are essential.

Product Specs

Series:
4700 Series
Subcategory:
Cylindrical
Grade:
Grade 1
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Entrance
Product Attribute:
Cylindrical Locks
Product Model:
YAL-4707LN
Collection:
4700 Series
Product Function:
Entrance
Lever Design Name:
Augusta Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-AU4707LN-605 – Frequently Asked Questions

1) What applications is the Yale 4707LN Grade 1 entry lock designed for?
This Grade 1 cylindrical lever lock is designed for heavy-duty commercial entry applications. It provides maximum security and durability for office buildings, schools, hospitals, and high-traffic commercial facilities where robust performance is required.
2) What door thickness and preparation does this lock require?
The Yale 4707LN fits standard 1-3/8" to 1-3/4" thick doors with ANSI A115.1 preparation. It requires a 2-1/8" cross bore and 1" edge bore. Always verify door specifications and use manufacturer templates for precise installation.
3) How do I determine the correct handing for this lever lock?
Stand on the side of the door where the hinges are not visible. If the door opens to your right, it's right-handed. If it opens to your left, it's left-handed. The Yale 4707LN can be field-reversed for either handing during installation.
4) What finishes are available for the Augusta trim design?
Yale offers multiple finish options for the Augusta trim including satin chrome, bright brass, oil rubbed bronze, and satin brass. Verify the specific finish code when ordering to ensure proper match with existing hardware.
5) What does Grade 1 certification mean for this lock?
Grade 1 is the highest ANSI/BHMA security and durability rating. This lock withstands 2 million operational cycles, 360 ft-lbs of torque, and 900 lbs of thrust force. It meets the most demanding commercial security requirements.
6) Does this lock meet fire door and building code requirements?
The Yale 4707LN is compatible with 3-hour fire-rated door assemblies when properly installed. It meets ADA accessibility requirements with 5 lbs maximum operating force. Always verify local code compliance with your authority having jurisdiction.
7) What cylinders and keying options work with this lock?
This lock accepts standard 6-pin SFIC or conventional cylinders. It supports keyed alike, keyed different, master keyed, and grand master keyed systems. Consult with a locksmith or check our Yale hardware section for compatible cylinder options.
8) What are the basic installation requirements?
Installation requires standard locksmith tools including hole saws, chisels, and drill bits. The lock installs through the door faces with through-bolts for maximum security. Use manufacturer templates and follow torque specifications to prevent binding or malfunction.
9) How do I maintain and adjust this lever lock?
Regular maintenance includes lubricating the latch mechanism with graphite or approved lubricant every six months. Adjust strike plate alignment if needed. Avoid oil-based lubricants which attract debris. Clean lever handles with appropriate finish-safe cleaners only.
10) Are there related Yale models or suitable substitutes?
Other Yale 4700 series locks offer different trim designs and functions while maintaining Grade 1 performance. The 4600 series provides similar quality with different aesthetic options. Browse our door hardware section for compatible alternatives.
11) What environmental conditions can this lock handle?
The Yale 4707LN is designed for interior commercial use in normal temperature and humidity ranges. For exterior applications or harsh environments, verify finish suitability and consider weatherization accessories. High-traffic and institutional environments are ideal applications.
12) What are the key measurements and clearances needed?
The lock requires 2-3/4" or 2-3/8" backset standard. Lever clearance needs minimum 2-1/2" from door edge. Strike plate requires 1-1/8" x 4-7/8" mortise in frame. Verify frame material can support through-bolt installation securely.
