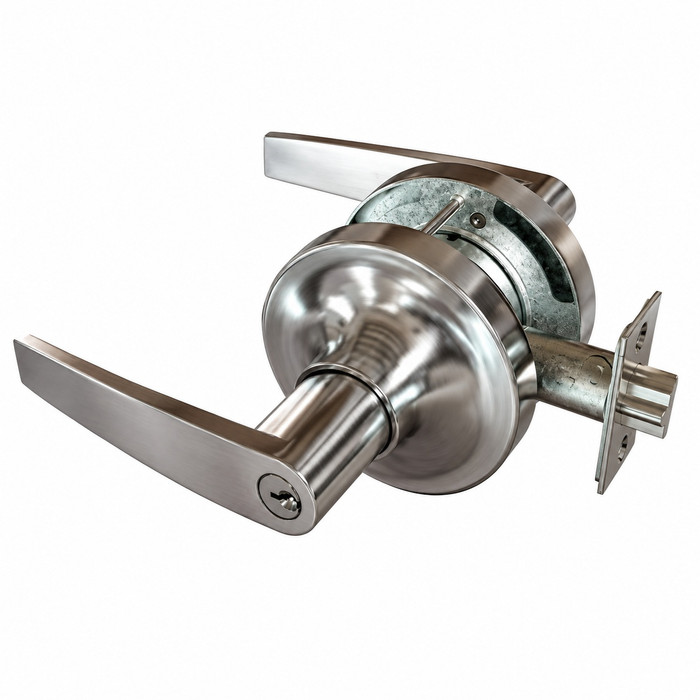

Accentra 4607LN Grade 2 Cylindrical Lever Lock with Monroe Trim Design

Accentra 4607LN Grade 2 Cylindrical Lever Lock with Monroe Trim Design

Professional Commercial-Grade Entrance Lock Solution

The Accentra 4607LN cylindrical lever lock delivers reliable Grade 2 performance for commercial applications requiring consistent quality and ease of installation. This entrance function lock features heavy-gauge steel construction with adjustable door thickness from 1-3/8" to 1-3/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA Grade 2 certified and UL fire-rated up to 3 hours for dependable security and code compliance.

Professional Features & Benefits

• ANSI/BHMA: A156.2, Series 4000 Grade 2
• UL-cUL: UL-cUL fire-rated up to 3 hours
• Windstorm: 4600LN Certified (refer to local codes)
• Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated

• Backset: 2-3/4" standard; 2-3/8" to order

• Latchbolt: 1/2" stainless steel throw standard

• Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions

• Door Thickness: Adjustable from 1-3/8" to 1-3/4".

• Fronts: Universal for both flat and beveled door edges

• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available. 6 and 7 pin SFIC available.

• Reversibility: Non-handed

• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible.

• Finishes: Available in 7 finishes

• Warranty: 3-year mechanical

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 1-3/4", 2-3/4" backset, and proper bore hole dimensions.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for precise installation.
3. Prepare door by drilling required 2-1/8" bore hole and 1" latch hole according to manufacturer specifications and template guidance.
4. Install latchbolt assembly and secure the cylindrical lock mechanism to door per manufacturer torque specifications.
5. Adjust lever operation and cylinder alignment for proper function, ensuring guardbolt properly deadlocks latchbolt when door is closed.
6. Test lock operation including key function, lever throw, and latchbolt engagement to verify proper installation and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and ANSI/BHMA Grade 2 certification for demanding commercial applications. UL fire-rated up to 3 hours with 3-year mechanical warranty for added confidence and code compliance. Engineered for consistent performance where dependable access control and durability are essential.
