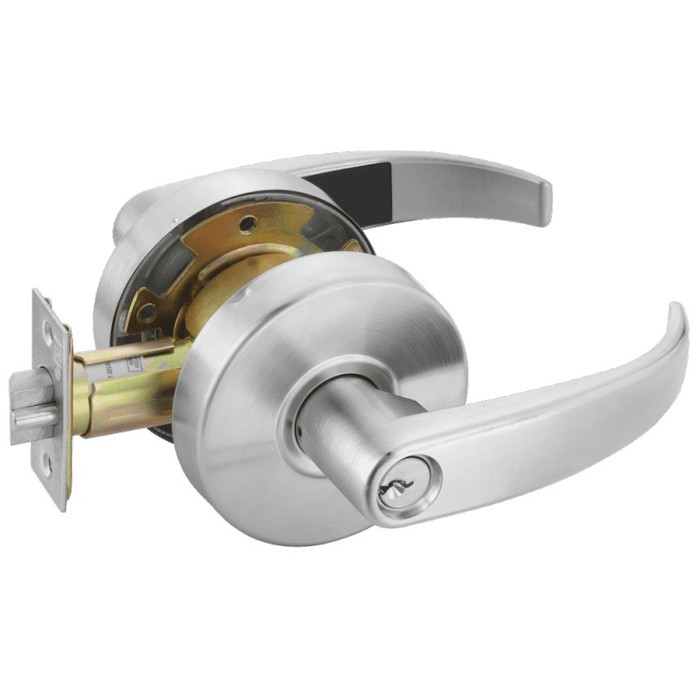

Accentra 4718LN Grade 1 Classroom Security Double Cylinder Lever Lock with Pacific Beach Trim Design

Accentra 4718LN Grade 1 Classroom Security Double Cylinder Lever Lock with Pacific Beach Trim Design

(No reviews yet) Write a Review

Model: YAL-PB-4718LN-626
From the 4700 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$694.00
$538.68
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 4718LN Grade 1 Classroom Security Double Cylinder Lever Lock with Pacific Beach Trim Design

Professional Grade 1 Cylindrical Lock for Commercial Security Applications

The Accentra 4718LN delivers Grade 1 performance for classroom security applications with double cylinder operation and Pacific Beach lever design. This heavy-duty cylindrical lock features adjustable door thickness from 1-3/8" to 1-3/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA Grade 1 certified and UL fire-rated up to 3 hours for reliable commercial performance.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL-cUL: UL-cUL fire-rated up to 3 hours
  • Windstorm: 4700LN Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, die-cast, zinc-plated, chromated
  • Backset: 2-3/4" standard
  • Latchbolt: 1/2" stainless steel throw standard
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: 4700LN adjustable from 1-3/8" to 1-3/4". 4700 adjustable from 1-3/4" to 2"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center supplied standard. Optional T-strike available to order for 4700LN.
  • Finishes: 4700LN available in 7 finishes, 4700 available in satin stainless steel (630) only.
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 1-3/4", 2-3/4" backset, and standard cylindrical lock preparation.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for proper alignment.
  3. Prepare door by drilling required holes per standard cylindrical lock specifications and verify proper clearances for mechanism operation.
  4. Install lock mechanism and secure all mounting hardware per manufacturer torque specifications ensuring proper alignment of internal components.
  5. Adjust latchbolt operation for proper alignment with strike and verify guardbolt deadlocking function when door is closed.
  6. Test lock operation with both cylinders to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Classroom Security
  • Commercial Office Buildings
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Retail Establishments
  • Industrial and Warehouse Facilities

Why Choose Accentra Quality?

Accentra cylindrical locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. UL fire-rated up to 3 hours with 5-year mechanical warranty for added confidence and protection. Engineered for educational and commercial environments where dependable security performance is essential.

Product Specs

Series:
4700 Series
Subcategory:
Cylindrical
Keyed Function:
Double Cylinder
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Classroom Security
Product Attribute:
Cylindrical Locks
Product Model:
YAL-4718LN
Collection:
4700 Series
Product Function:
Classroom Security
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-PB-4718LN-626 – Frequently Asked Questions

1) Will the Accentra 4718LN fit a 1-3/8 inch door, or is it only for 1-3/4?
The 4718LN is a 4700LN lock, adjustable from 1-3/8 inch to 1-3/4 inch, so it covers both the standard commercial 1-3/4 leaf and thinner older interior doors. If your door is 1-3/4 to 2 inches, that is the 4700 (non-LN) range instead, and the 4700 only comes in satin stainless steel 630.
2) Will the Accentra 4718LN drop into an existing cylindrical lock prep without redrilling?
It uses standard cylindrical lock prep with a 2-3/4 inch backset, and it ships with the ANSI strike at 4-7/8 x 1-1/4 x 1-1/4 inch lip to center. If the door you are replacing was prepped at 2-3/4 backset with an ANSI strike pocket, it goes straight in. A door bored at 2-3/8 backset will not take it. Front is 2-1/4 x 1-1/8 beveled as standard, with flat fronts available to order.
3) Can I use the Accentra 4718LN on a fire rated classroom door?
The 4700LN series is UL-cUL fire rated up to 3 hours and carries ANSI/BHMA A156.2 Series 4000 Grade 1. The 4700LN is also Windstorm certified, though you should check that against your local code for storm shelter openings.
4) What else could I buy instead of the Accentra 4718LN classroom security lever?
The closest equivalent we carry is the Dexter C1000 Series Classroom Security lever, also Grade 1 cylindrical and also rated for 1-3/8 to 1-3/4 inch doors, with a clutching lever. If you only need key-outside classroom function rather than the inside key override, the Dexter C1000 Classroom is the simpler option. Cal-Royal AG03 is a Grade 2 classroom lever at a 2-3/4 backset if the opening does not require Grade 1.
5) What is the difference between a classroom lock and a classroom security lock when choosing between the Accentra 4718LN and the Dexter C1000?
Classroom security is a double cylinder function - the Accentra 4718LN has a keyed cylinder on both the outside and the inside, so a teacher can lock the outside lever from inside the room without stepping into the corridor. The Dexter C1000 classroom version (DEX-C1000-CLRM) is a standard classroom function, keyed from the outside only. Dexter also builds a classroom security version (DEX-C1000-CSEC) if you need the inside key control. Both Dexter functions are Grade 1.
6) What is the closest cross-brand equivalent to the Accentra 4718LN classroom security lever lock?
The Dexter C1000 Series classroom security cylindrical lever lock (DEX-C1000-CSEC) is the nearest match. Both are Grade 1 keyed cylindrical lever locks with a classroom security function, and both cover doors from 1-3/8 inch to 1-3/4 inch thick. The Dexter uses a clutching lever design, while the Accentra 4718LN carries the Pacific Beach lever trim and is offered in eight finishes including 626 satin chrome and black and white suede powder coat.
7) We need a Grade 1 lever lock on a 2 inch thick door - can the Accentra 4718LN be used?
The 4700LN chassis adjusts from 1-3/8 inch to 1-3/4 inch, so a 2 inch door falls outside it. The Falcon K101 Grade 1 cylindrical lock covers 1-3/8 inch to 2-1/4 inch, and the Dexter C1000 asylum version covers 1-3/8 inch to 2 inch, both Grade 1. On the Corbin Russwin side, the CL3110 Grade 1 vandal resistant lever is built for 1-3/4 inch to 2 inch doors. Note that the K101 and CL3110 are passage functions, not keyed classroom security.
8) Is the Accentra 4718LN handed? I need locks for doors swinging both directions.
Non-handed. One 4718LN works on a left or right hand door, so you can stock a single part number across a whole building and not sort by swing at install.
9) Does the Accentra 4718LN come keyed, and can I get it keyed to my building's system?
It ships with a brass 6-pin keyed-random cylinder and two keys. 7-pin is not offered in this series, so if your facility master key system runs 7-pin you would need a different platform. Because it is double cylinder, both the inside and outside cylinders operate the outside lever lock.
10) Will the 1/2 inch latchbolt on the Accentra 4718LN hold in my existing strike?
Latch throw is 1/2 inch stainless steel, which is standard cylindrical depth and seats in a normal ANSI strike pocket. A guardbolt deadlocks the latchbolt whenever the door is closed, so the latch cannot be carded back. If your frame has an unusually deep or shimmed strike, verify the lip projection before reusing it.
11) I need matching passage and storeroom locks for the same corridor as the classroom doors. What works alongside a Grade 1 cylindrical lever?
For non-keyed openings on the same corridor, the Falcon K101 is a Grade 1 passage cylindrical lock, fire rated, non-handed, covering 1-3/8 to 2-1/4 inch doors. Corbin Russwin CL3110 is another Grade 1 passage lever, fire rated, but built for 1-3/4 to 2 inch doors only. For a keyed storeroom door at a lighter grade, Hager 2580 with the Withnell lever is Grade 2 and takes 1-3/8 to 2 inch.
12) Do I need to order a different strike for the Accentra 4718LN, or is one included?
The ANSI strike, 4-7/8 x 1-1/4 with 1-1/4 inch lip to center, comes standard with the lock. An optional T-strike is available to order on the 4700LN if your frame is prepped for a T rather than an ANSI cutout. Flat fronts are also an order option in place of the standard bevel.
13) Is the Accentra 4718LN heavy enough for a high-traffic school corridor?
It is built for it. Grade 1 under ANSI/BHMA A156.2 Series 4000 is the top commercial durability tier for bored locks, and the mechanism is heavy-gauge steel, die-cast, zinc-plated and chromated. Most of the alternatives in this class, such as the Hager 2525 and Cal-Royal AG05, are Grade 2 and better suited to lighter interior traffic.
14) Is there a lower-cost classroom lever lock alternative to the Accentra 4718LN?
The Cal-Royal AG03 classroom lever is a Grade 2 lock in the AG Series with a 6-pin Schlage C keyway keyed different and a 2-3/4 inch backset, which matches the 2-3/4 inch backset of the Accentra 4718LN. The AG03 is a standard classroom function rather than the double cylinder classroom security arrangement of the 4718LN, and the Accentra is ANSI/BHMA Grade 1 with a UL fire rating up to 3 hours.
15) What should I order instead of the Accentra 4718LN for a storeroom or utility door in the same building?
For always-locked storage doors, the Hager 2580 with Withnell lever is a Grade 2 storeroom cylindrical lock for doors 1-3/8 inch to 2 inch, and the Cal-Royal AG05 is a Grade 2 storeroom leverset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors. For institution or utility openings, the Dexter C1000 asylum F87 is Grade 1 and fits 1-3/8 inch to 2 inch doors. The Accentra 4718LN itself is a classroom security function keyed on both sides.
16) What matching non-keyed lever should I use on corridor and closet doors alongside Accentra 4718LN classroom locks?
For openings that need no locking, Grade 1 passage levers include the Dexter C1000 passage (1-3/8 inch to 1-3/4 inch, clutching, non-keyed), the Falcon T101 heavy duty passage lever with pressure release, and the Design Hardware X75 passage lever for 1-3/4 inch doors. If a dummy trim is what the door calls for, the BEST 9K Series 1DT single dummy trim is Grade 1 heavy duty. None of these are keyed, unlike the double cylinder 4718LN.
17) Can a keypad or keyless lever lock replace the Accentra 4718LN on a classroom door?
They are different animals. The Lockey 1150 and 2835DC are mechanical keypad lever sets with a passage function, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. None of them provide the double cylinder classroom security operation of the 4718LN, where a key on the inside locks the outside lever. If you need remote or electrified control instead, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever running 12VAC/DC on 1-3/4 inch to 2 inch doors.
18) Are residential-grade levers like the Kwikset Breton or Baldwin Estate 5103 substitutes for the Accentra 4718LN?
No. The Kwikset 200BRNL Breton passage and 300BRNL Breton privacy levers are Grade 3 sets for 1-3/8 inch to 1-3/4 inch doors, and the Baldwin Estate 5103 is offered as passage, privacy, and half dummy. Those are non-keyed interior functions with no classroom security capability. The Accentra 4718LN is an ANSI/BHMA A156.2 Series 4000 Grade 1 commercial lock with a keyed cylinder on both sides and a UL fire rating up to 3 hours.
19) Which entry or office lever should I pair with the Accentra 4718LN for staff offices?
For office openings the Hager 2525 Grade 2 commercial cylindrical entry lock and the Falcon B511CP6D Grade 2 entry/office lever are common choices; the Hager fits doors 1-3/8 inch to 2 inch. The Cal-Royal AG00 entrance lever uses a 6-pin Schlage C keyway keyed different with a 2-3/8 inch backset for 1-3/8 inch to 1-3/4 inch doors, so check backset against your existing prep before mixing it with the 2-3/4 inch backset of the Accentra 4718LN.
20) What finishes does the Accentra 4718LN Pacific Beach lever come in?
Eight finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 625 bright chrome, 626 satin chrome, plus black suede and white suede powder coat. The two powder coats are worth noting if you are matching painted storefront or school corridor hardware rather than plated trim.
21) Is the Corbin Russwin 585F715 lever an alternative to the Accentra 4718LN?
No, they serve different roles. The Corbin Russwin 585F715 is a Grade 1 lock lever used as trim for ED8000 pushpad exit devices and the CL3300 cylindrical lock series on 1-3/4 inch to 2 inch doors. The Accentra 4718LN is a complete cylindrical lockset with chassis, latchbolt, and two keyed cylinders, not a trim lever for an exit device.
