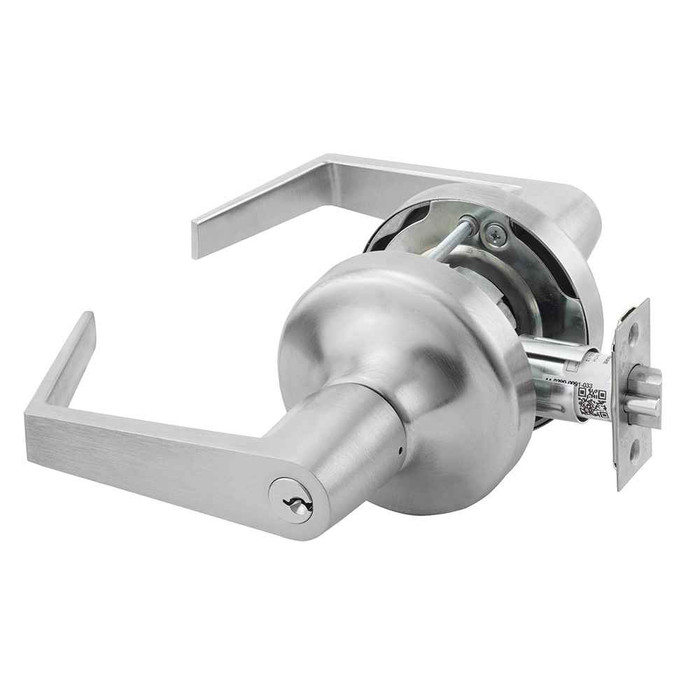

Accentra 5308LN Augusta Grade 2 Classroom Cylindrical Lever Lock

Accentra 5308LN Augusta Grade 2 Classroom Cylindrical Lever Lock

Professional Classroom Security Solution

The Accentra 5308LN Augusta Grade 2 Classroom Cylindrical Lever Lock delivers reliable security for educational and commercial applications. This ANSI/BHMA Grade 2 certified lockset features a heavy-gauge steel mechanism with zinc-plated, dichromated construction and adjustable door thickness from 1-3/4" to 2". The 1/2" stainless steel latchbolt with guardbolt provides secure deadlocking when the door is closed, while the 2-3/4" standard backset accommodates most door preparations.

Professional Features & Benefits

• ANSI/BHMA: A156.2, Series 4000 Grade 2

• UL/cUL: UL/cUL fire-rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Heavy-gauge steel, zinc-plated, dichromated
• Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order

• Latchbolt: 1/2" stainless steel throw

• Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
• Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.

• Fronts: Universal for both flat and beveled door edges

• Lead Shielding: Not available
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
• Reversibility: Non-handed
• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
• Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
• Warranty: 5-year mechanical

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Educational Facilities and Classrooms
• Commercial Office Buildings
• Healthcare Institutions
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Industrial and Warehouse Facilities
• Retail Establishments

Why Choose Accentra Quality?

Accentra 5300LN Series lever locks deliver professional-grade reliability with heavy-gauge steel construction and ANSI/BHMA Grade 2 certification for demanding commercial applications. The 5-year mechanical warranty and UL/cUL fire rating up to 3 hours demonstrate the manufacturer's commitment to quality and code compliance. Engineered for institutional, commercial, and industrial markets where dependable classroom security is essential.
