Yale Commercial Yale 5309LN Augusta Grade 2 Exit Latch Non-Keyed Cylindrical Lever Lock YAL-AU-5309LN

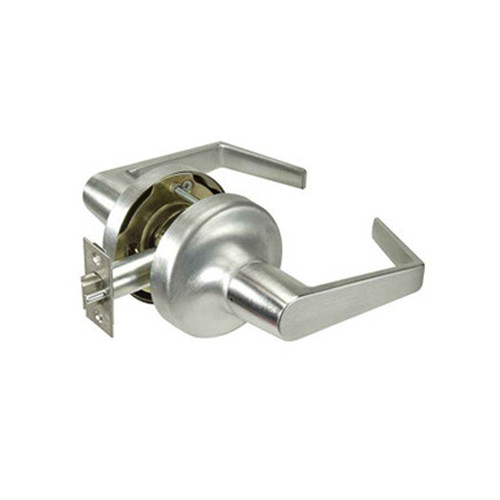

Accentra 5309LN Augusta Grade 2 Non-Keyed Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: YAL-AU-5309LN-626
From the 5300 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$349.00
$225.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5309LN Augusta Grade 2 Non-Keyed Cylindrical Lever Lock

Commercial-Grade Exit Latch Solution

The Accentra 5309LN Augusta lever lock delivers Grade 2 certified performance for commercial, industrial, and institutional applications. This non-keyed cylindrical lever lock features heavy-gauge steel construction with zinc-plated, dichromated mechanism and adjustable door thickness from 1-3/4" to 2". ANSI/BHMA A156.2 Series 4000 Grade 2 certified with UL/cUL fire rating up to 3 hours for code compliance and reliable security.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra lever lock products deliver professional-grade reliability with heavy-gauge steel construction and zinc-plated, dichromated mechanism rated for Grade 2 commercial performance. 5-year mechanical warranty provides added confidence for demanding institutional applications. Engineered for commercial applications where dependable performance and fire safety compliance are essential.

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Exit Only
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5309LN
Collection:
5300 Series
Product Function:
Exit
Lever Design Name:
Augusta Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-AU-5309LN-626 – Frequently Asked Questions

1) What does the 5309LN exit function actually do on the door?
The Accentra 5309LN Augusta is an exit-only lever lock, non-keyed, with no cylinder and no outside operation. The inside lever retracts the latch to let people out; there is no way to open it from the outside. Use it on stairwell discharge, mechanical rooms, or back-of-house doors where the opening must never be entered from the outside but has to release freely from inside. If people need to get in with a key, this is the wrong function and you want a keyed storeroom or entry lock instead.
2) Does the 5309LN come with a 2-3/8 inch backset for a residential-prep door?
Standard backset on the 5309LN is 2-3/4 inches, which is the usual commercial prep. A 2-3/8 inch backset is available through extension links ordered with the lock, as are 3-3/4 inch and 5 inch for wide-stile or unusual preps. If you are retrofitting a door bored at 2-3/8, specify that link when you order or the lock will not line up with the existing cross bore.
3) Can I use the Accentra 5309LN on a fire-rated stairwell door?
The 5309LN carries UL/cUL fire ratings up to 3 hours and is ANSI/BHMA A156.2 Series 4000 Grade 2. It is also windstorm certified, though local code governs that application. For a fire-rated opening the lock itself is acceptable; confirm the door, frame and closer assembly match the rating on the label.
4) Will the 5309LN latch into the strike already in my frame?
The latchbolt throws 1/2 inch in stainless steel, and the lock ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door. Other lip lengths are orderable if your frame sits back from the door face or you have a deep stop. A 1/2 inch throw is short, so if the existing frame prep was cut for a deeper-throw latch you will want the new strike rather than reusing the old one.
5) What is a Grade 2 equivalent to the Accentra 5309LN Augusta non-keyed lever for a 1-3/4 inch to 2 inch door?
The Arrow GL01 with the Sierra lever is the closest peer: it is a Grade 2 non-keyed cylindrical lock rated for 1-3/4 inch to 2 inch doors, the same thickness range the Accentra 5309LN Augusta covers. The Arrow is catalogued as passage function while the 5309LN is an exit function lever, so confirm which side of the door needs to be free-operating before swapping. Hager also offers the 2510 Grade 2 passage cylindrical lever with the Withnell design, rated 1-3/8 inch to 2 inch.
6) The opening needs a key on the outside, so what do I order instead of the Accentra 5309LN?
The Accentra 5309LN Augusta is non-keyed, so it cannot be cylinder-prepped after the fact. For a keyed Grade 2 lever in the same cylindrical format, the Hager 2580 is a Grade 2 storeroom lever with the Withnell design for 1-3/8 inch to 2 inch doors, and the Hager 2525 is a Grade 2 commercial entry lever over the same range. Cal-Royal offers the AG05 Grade 2 storeroom lever with a deadlocking latchbolt and the AG03 classroom lever with a 6-pin Schlage C keyway on a 2-3/4 inch backset, which matches the standard backset of the 5309LN.
7) Will the Accentra 5309LN work as lever trim on a panic exit device?
No. Despite the exit function name, the Accentra 5309LN Augusta is a standalone cylindrical lever lock that mounts in a bored door prep. Trim for a pushpad exit device is a separate item, such as the Corbin Russwin 585F715 Grade 1 lock lever made for the ED8000 pushpad exit device, or the Imperial USA ED-EL500HD heavy duty escutcheon lever trim with entry function. If the door already carries a rim or mortise exit device, order the matching device trim rather than a bored lockset.
8) For a classroom door, is the Accentra 5309LN the right lever or do I need something else?
The Accentra 5309LN Augusta is non-keyed, so it cannot provide the lockdown a classroom requires. Specify a classroom function instead: the Dexter C1000 Grade 1 classroom cylindrical lever is clutching and keyed for 1-3/8 inch to 1-3/4 inch doors, the Dexter C1000 classroom security version adds inside key control over the same range, and the Cal-Royal AG03 is a Grade 2 classroom lever with a 6-pin Schlage C keyway keyed different on a 2-3/4 inch backset.
9) Do I have to specify left or right hand for the Accentra 5309LN?
No handing to specify. The 5309LN is non-handed and the front works on both flat and beveled door edges, so one part number covers any swing. The strike is reversible too. That makes it a clean stocking item for a property manager keeping spares on the shelf for a building full of mixed-swing doors.
10) Can the 5309LN be keyed to my building's existing master key system?
No. The 5309LN is a non-keyed exit function with no cylinder in it at all, so it cannot be keyed or mastered. If you need this opening on your keyway, move to a keyed function in the 5300LN family instead and specify the cylinder and keyway with the order.
11) Will the Augusta lever match other Accentra 5300LN locks already installed in my building?
Yes, as long as the other openings use the Augusta lever design in the same finish. The 5300LN is a single cylindrical lock family, so an exit-only 5309LN sits beside keyed and passage functions from the same series with matching lever and rose trim. Specify the same finish code and you get a consistent look across doors that do very different jobs.
12) What is the difference between the Accentra 5309LN Augusta and a Grade 3 residential lever?
The Accentra 5309LN Augusta is a Grade 2 commercial cylindrical lever certified to ANSI/BHMA A156.2 Series 4000 with UL/cUL fire rating up to 3 hours. Grade 3 levers such as the Callan Asheville passage, the Kwikset 200BRNL RDT Breton passage rated 1-3/8 inch to 1-3/4 inch, or the Cal-Royal AUS00 entrance/office lever for 1-3/8 inch to 1-3/4 inch doors sit at a lighter certification tier and do not cover the 2 inch door thickness the 5309LN reaches. For apartment interiors a Grade 3 lever is common; for corridor and stairwell traffic buyers generally specify the Grade 2 commercial line.
13) Can I use a dummy lever instead of the Accentra 5309LN Augusta?
No, not if the door needs to latch. The Accentra 5309LN Augusta is a working cylindrical lock with a 1/2 inch stainless steel latchbolt throw. A dummy trim such as the BEST 7KC 1DT Grade 2 single dummy or the BEST 9K 1DT Grade 1 heavy duty single dummy has no latch at all and mounts as pull trim only. Callan also offers the Bentley Grade 2 dummy lever. Use dummy trim on inactive leaves and closet doors held by a ball catch, not on an opening that must latch closed.
14) I need keyless access control on this door rather than a plain exit lever. What replaces the Accentra 5309LN?
The Accentra 5309LN Augusta is a mechanical non-keyed lever with no credential of any kind. For pushbutton entry on the same door, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for 1 3/16 inch to 2 inch doors, and the Lockey 1150 is a heavy duty mechanical keypad lever set covering 1-1/8 inch to 2 inch. If you want an electronic keypad instead, the Delaney LP250 is a Grade 2 electronic keypad leverlock. All of these change the door prep, so check the template before committing.
15) Is a privacy lever an alternative to the Accentra 5309LN for a restroom?
No. The Accentra 5309LN Augusta is an exit function lever with no locking mechanism, so it will not secure a restroom or bedroom. For that opening you want a privacy function: the Hager 2540 Grade 2 privacy lock with the Withnell lever covers 1-3/8 inch to 2 inch doors, the Arrow MK02-TA is a privacy cylindrical lock with a Tudor knob and a fire rating, and the Kwikset 300BRNL RDT Breton is a Grade 3 privacy lever for 1-3/8 inch to 1-3/4 inch doors.
16) Our door is thicker than 2 inches. What non-keyed lever covers it instead of the Accentra 5309LN?
The Accentra 5309LN Augusta adjusts from 1-3/4 inch to 2 inch as standard, with 1-3/4 inch or 2-1/4 inch door versions available to order. If you would rather have the range built in, the Falcon K101 is a Grade 1 heavy duty non-handed passage lever rated 1-3/8 inch to 2-1/4 inch out of the box. The Dexter C1000 asylum function Grade 1 lock covers 1-3/8 inch to 2 inch if the opening also needs key control on both sides.
17) Can I use a decorative residential lever in place of the Accentra 5309LN on a fire rated corridor door?
Be careful here. The Accentra 5309LN Augusta carries UL/cUL fire rating up to 3 hours and Grade 2 certification, which is what a rated corridor assembly needs. Decorative lines such as the Baldwin Estate 5103 passage lever with the 5048 rose, or Deltana entry levers like the 6201 Manchester and 6431 Linstead for 1-3/8 inch to 2 inch doors, are styled for residential and light commercial interiors. On a rated opening, match the listing on the door label rather than substituting on appearance.
18) What Grade 2 lever alternatives to the Accentra 5309LN are non-handed?
The Accentra 5309LN Augusta is non-handed and its universal front suits both flat and beveled door edges, so one part covers left and right openings. Among Grade 2 peers, the Falcon B101 is a medium duty cylindrical passage lever with a non-handed design. The Falcon B511CP6D is a Grade 2 medium duty entry/office lever if the same opening later needs key control. Handed lines such as the Baldwin Estate 5103 half dummy, which ships as separate left hand and right hand parts, require you to confirm swing before ordering.
19) What finishes does the Augusta 5309LN lever come in, and which ones hold up outdoors?
Ten finish choices are orderable: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, plus black and white suede powder coat. PVD is the standard process on 605 and 606, which is what gives those brass finishes their wear resistance against tarnish. The powder coat options are the ones to pick when you want a matte black or white to match modern storefront trim.
20) Is there a guardbolt on the 5309LN, and does it matter on an exit-only door?
A guardbolt is included and deadlocks the latchbolt when the door closes, which blocks anyone shimming a card between the door and the stop. On an exit-only opening that matters, since the latch is the only thing holding the door and there is no outside trim to attack.
21) Can I get the 5309LN with lead shielding for an X-ray room?
No. Lead shielding is not offered on the 5309LN, so it is not the lock for a radiology or imaging room door where the hardware has to maintain the shielding envelope. That application needs a lock specifically built with a lead liner.
22) We are standardizing on lever trim across a building. Is the Accentra 5309LN interchangeable with a knob lockset?
Functionally they mount to the same cylindrical bore, but they are not the same trim. The Accentra 5309LN Augusta uses the Augusta lever, which is the ADA-friendly choice most commercial specs call for. Knob products in the same cylindrical family include the Arrow HK11 turn-pushbutton entrance lock with a ball knob for 1-3/8 inch to 1-3/4 inch doors and the Arrow MK33-BD-CS Grade 2 heavy duty asylum lock with a ball knob and Schlage C keyway. If the facility is standardizing for accessibility, stay on lever trim.
23) Which alternatives to the Accentra 5309LN come in black or white powder coat style finishes?
The Accentra 5309LN Augusta is offered in 13 finishes, including 693 Black Painted, BSP Black Suede Powder Coat and WSP White Suede Powder Coat alongside the standard 605, 606, 612, 613E, 619, 625 and 626 architectural finishes. If you are matching satin brass on a lighter commercial job, the Bravura Miramar passage leverset is a Grade 2 lever in US4 satin brass, and the Callan Asheville Grade 3 passage leverset comes in satin nickel.
