Accentra 5309LN Pacific Beach ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$349.00
$270.22

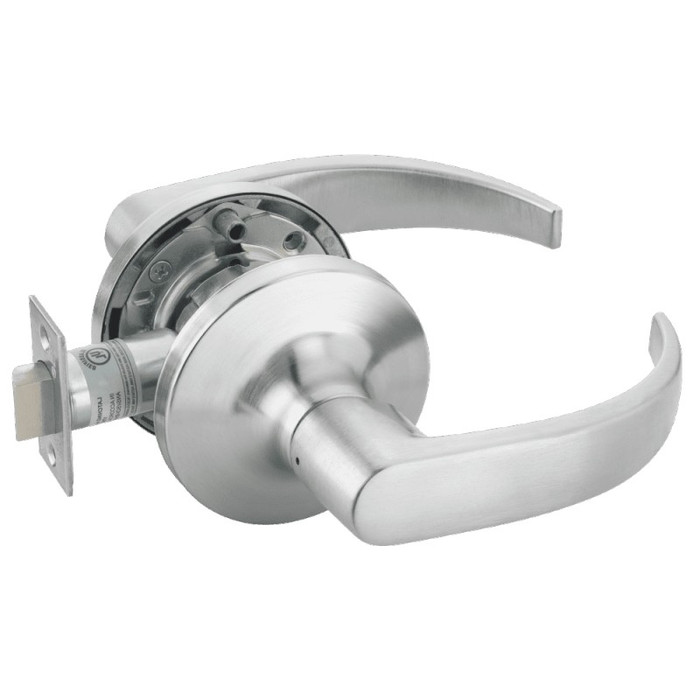

Yale Commercial Yale 5309LN Pacific Beach Grade 2 Exit Latch Non-Keyed Cylindrical Lever Lock YAL-PB-5309LN

Accentra 5309LN Pacific Beach Grade 2 Non-Keyed Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: YAL-PB-5309LN-626
From the 5300 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$349.00
$270.22
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5309LN Pacific Beach Grade 2 Non-Keyed Cylindrical Lever Lock

Commercial-Grade Exit Function Lever Lock

The Accentra 5309LN Pacific Beach lever lock delivers Grade 2 certified performance for commercial, industrial, and institutional applications. This non-keyed cylindrical lockset features a 2-3/4" standard backset with adjustable door thickness from 1-3/4" to 2", and includes a 1/2" stainless steel latchbolt with guardbolt for enhanced security. ANSI/BHMA A156.2 Series 4000 Grade 2 certified and UL/cUL fire-rated up to 3 hours for code compliance.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2", backset requirements, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for proper cylindrical lock installation.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for the 2-3/4" standard backset configuration.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring proper alignment of the heavy-gauge steel mechanism.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, verifying guardbolt engagement.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra lever lock products deliver professional-grade reliability with heavy-gauge steel construction and zinc-plated, dichromated mechanisms rated for demanding commercial applications. The 5-year mechanical warranty provides added confidence for institutional and commercial installations. Engineered for demanding commercial applications where dependable performance and Grade 2 certification are essential for code compliance and long-term reliability.

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Exit Only
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5309LN
Collection:
5300 Series
Product Function:
Exit
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-PB-5309LN-626 – Frequently Asked Questions

1) What backset does the 5309LN use, and can it go into a 2-3/8 inch bored door?
Standard is 2-3/4 inch backset. Extension links are available to order for 2-3/8 inch, 3-3/4 inch, and 5 inch backsets, so an existing 2-3/8 inch prep is covered if you order the link with the lock. A standard unit dropped into a 2-3/8 inch prep will not line up.
2) Will the 5309LN latch into the strike already in my frame?
The latchbolt throws 1/2 inch in stainless steel, which matches typical cylindrical lock strike pockets. The lock ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door; other lip lengths are available to order if your frame sits back from the door face. All strikes are reversible, so the same one works either hand.
3) Is the 5309LN approved for a fire-rated door assembly?
It is UL/cUL fire rated up to 3 hours and carries ANSI/BHMA A156.2 Series 4000 Grade 2 certification. It is also listed as windstorm certified, subject to your local code. For facility standardization that covers most rated corridor and stair doors.
4) Is a dummy lever the same thing as the Accentra 5309LN exit function lever?
No. The Accentra 5309LN Pacific Beach is an operating cylindrical lockset with a working 1/2 inch stainless steel latchbolt and guardbolt, so the lever retracts the latch from the egress side. A dummy trim is fixed and has no latch at all. The BEST 7KC single dummy trim is a Grade 2 non-keyed cylindrical lever dummy, the BEST 9K 1DT is a Grade 1 heavy duty single dummy, and the Callan Bentley is a Grade 2 dummy lever - all pull trim only, not substitutes for a latching exit lever.
5) What should I use instead of the Accentra 5309LN on a 1-3/8 inch door?
The Accentra 5309LN Pacific Beach is adjustable from 1-3/4 inch to 2 inch as supplied. For thinner doors, the Hager 2510 Grade 2 passage lever with the Withnell design covers 1-3/8 inch to 2 inch, and the Falcon K101 Grade 1 passage lever covers 1-3/8 inch to 2-1/4 inch. The Dexter C1000 passage lever covers 1-3/8 inch to 1-3/4 inch. All three are non-keyed lever functions like the 5309LN.
6) The Accentra 5309LN is exit only - what do I order if the door has to be locked and keyed?
The Accentra 5309LN Pacific Beach is a non-keyed lever in exit function, so it has no cylinder and cannot secure the opening. For a keyed opening on a Grade 2 cylindrical lever, the Hager 2580 is a Grade 2 storeroom lever with the Withnell lever design for 1-3/8 inch to 2 inch doors, and the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt. For keyed entry/office use, the Falcon B511CP6D is a Grade 2 entry/office cylindrical lever and the Hager 2525 is a Grade 2 commercial entry lever.
7) What is a comparable Grade 2 non-keyed cylindrical lever lock to the Accentra 5309LN Pacific Beach?
The Accentra 5309LN Pacific Beach is a Grade 2 non-keyed cylindrical lever lock with a 1-3/4 inch to 2 inch door thickness range. The Arrow GL01 with the Sierra lever is also a Grade 2 non-keyed cylindrical lock covering the same 1-3/4 inch to 2 inch door thickness range, in passage function. The Falcon B101 is another Grade 2 cylindrical passage lever lock with a non-handed design, rated medium duty. The 5309LN is likewise non-handed, so all three drop into a standard 161 bored door prep without handing selection.
8) If the opening needs a Grade 1 lever instead of the Accentra 5309LN, what should I use?
The Accentra 5309LN Pacific Beach is certified to ANSI/BHMA A156.2 Series 4000 Grade 2. Where the spec calls for Grade 1 on a non-keyed cylindrical lever, the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet cylindrical lever lock, fire rated, with the same 1-3/4 inch to 2 inch door thickness range. The Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers, fire rated, covering 1-3/8 inch to 2-1/4 inch doors. The Falcon T101 and Dexter C1000 passage are additional Grade 1 heavy duty options.
9) What finishes does the Accentra 5309LN Pacific Beach lever come in?
Ten finish choices: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, plus black suede and white suede powder coat. PVD is standard on 605 and 606, which holds up better outdoors and in high-touch areas than plated brass.
10) Is Grade 2 enough for a school or hospital corridor, or should I step up to Grade 1?
Grade 2 covers most commercial office, retail, multi-tenant residential, and general institutional traffic, and the 5309LN backs it with a heavy-gauge steel mechanism, zinc plated and dichromated. On abuse-prone openings, gyms, dormitories, or high-cycle public corridors, a Grade 1 heavy duty cylindrical is the better call. The Falcon K101 Grade 1 passage lever and the Corbin Russwin CL3110 Grade 1 vandal resistant cylindrical lever are Grade 1 non-keyed options, both fire rated.
11) I need a lever on a door that never latches at all. Is the 5309LN the right part?
Not quite. The 5309LN is an exit latch, so it still throws a 1/2 inch latchbolt into a strike. For trim that only pulls, with no latch, a dummy is what you want: the BEST 7KC single dummy trim lever is a Grade 2 option and the BEST 9K 1DT is the Grade 1 heavy duty version. A Callan Bentley Grade 2 dummy lever is another non-latching choice.
12) Can the 5309LN be used on an x-ray or radiology room door?
No. Lead shielding is not available on the 5300LN cylindrical locks, so it should not be specified for openings that require a lead-lined lockset. Pick a lock line that offers a lead-shielded option for those rooms.
13) What is the closest match if I am replacing older non-keyed levers on a 1-3/8 inch wood door?
The standard 5309LN adjusts 1-3/4 inch to 2 inch, so a 1-3/8 inch leaf needs the 1-3/8 inch build ordered specially. If you would rather buy off the shelf, the Hager 2510 Grade 2 passage lever covers 1-3/8 inch to 2 inch, and the Dexter C1000 Grade 1 passage lever covers 1-3/8 inch to 1-3/4 inch. Neither is an exit-only function, so only substitute where two-way passage is acceptable.
14) Can I use a Grade 3 residential lever in place of the Accentra 5309LN on a commercial corridor door?
The Accentra 5309LN Pacific Beach is a commercial Grade 2 lever certified to ANSI/BHMA A156.2 Series 4000 and UL/cUL fire rated up to 3 hours, which is what commercial and institutional specs generally call for. Grade 3 levers such as the Kwikset 200BRNL Breton passage, the Callan Asheville passage, and the Cal-Royal AUS00 entrance/office carry a lower ANSI grade and the Kwikset and Cal-Royal cover 1-3/8 inch to 1-3/4 inch doors rather than the 5309LN's 1-3/4 inch to 2 inch range.
15) I need keyless code entry rather than the Accentra 5309LN's non-keyed lever - what are the options?
The Accentra 5309LN Pacific Beach is a mechanical non-keyed cylindrical lever with no access control. For coded access on a lever, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for 1-3/16 inch to 2 inch doors, the Lockey 1150 is a heavy duty mechanical keypad lever set for 1-1/8 inch to 2 inch doors, and the Delaney LP250 is a Grade 2 electronic keypad leverlock.
16) For a bed/bath or privacy door, is the Accentra 5309LN the right lever?
No - the Accentra 5309LN Pacific Beach is an exit function, non-keyed lever with no privacy locking. For privacy openings, the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever, the Arrow MK02-TA is a privacy cylindrical lock with a Tudor knob and a fire rating, and the Baldwin Estate 5103 privacy lever with the 5048 rose covers decorative privacy applications.
17) How does the Accentra 5309LN compare to Design Hardware J75 and X75 passage levers?
The Accentra 5309LN Pacific Beach is a Grade 2 non-keyed cylindrical lever adjustable from 1-3/4 inch to 2 inch, in exit function, offered in 13 finishes including PVD options. The Design Hardware J75 is a Grade 2 passage lever lockset with a flat lever built for 1-3/4 inch doors, and the X75 is the Grade 1 passage equivalent, also for 1-3/4 inch doors. If doors on the job run thicker than 1-3/4 inch, the 5309LN's adjustable range covers them.
18) What is the closest alternative to the Accentra 5309LN for a classroom or institutional door that must be secured?
The Accentra 5309LN Pacific Beach is non-keyed and cannot secure a classroom. For keyed classroom function, the Cal-Royal AG03 is a classroom lever with a 6-pin Schlage C keyway and 2-3/4 inch backset, which matches the 5309LN's 2-3/4 inch standard backset for door prep. The Dexter C1000 classroom and classroom security levers are Grade 1 clutching keyed options, and the Arrow MK33-BD-CS is a Grade 2 heavy duty asylum function lock in Schlage C keyway.
19) Does the guardbolt come on the non-keyed 5309LN?
The guardbolt deadlocks the latchbolt when the door closes and is standard on all locking functions in the 5300LN line. Since the 5309LN is an exit-only, non-keyed function with no outside locking, the security value here comes from there being no outside trim to attack at all.
