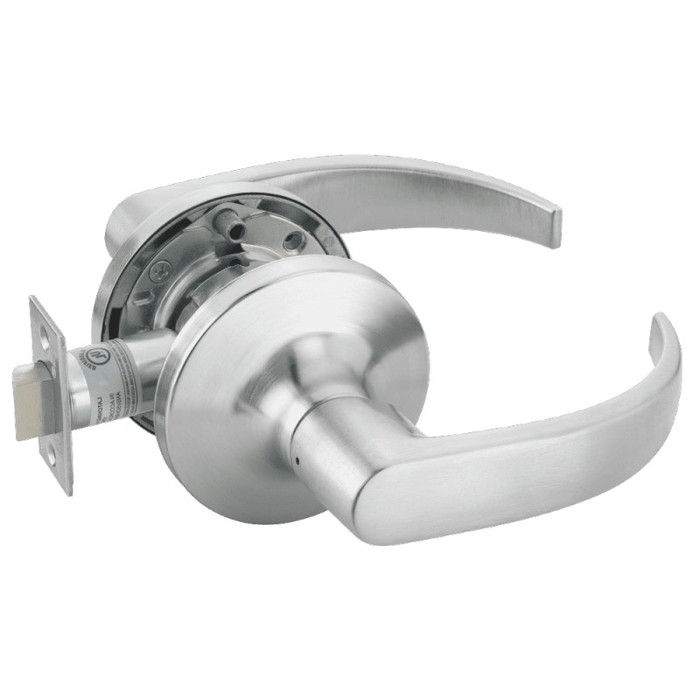

Yale Commercial Yale 5328LN Pacific Beach Grade 2 Communicating Passage Non-Keyed Cylindrical Lever Lock YAL-PB-5328LN

Accentra 5328LN Pacific Beach Grade 2 Cylindrical Lever Lock - Non-Keyed Passage Function

(No reviews yet) Write a Review

Model: YAL-PB-5328LN-626
From the 5300 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$327.00
$253.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5328LN Pacific Beach Grade 2 Cylindrical Lever Lock - Non-Keyed Passage Function

Commercial-Grade Cylindrical Lever Lock for High-Traffic Applications

The Accentra 5328LN Pacific Beach lever lock delivers Grade 2 commercial performance with attractive Pacific Beach lever design for passage applications. This non-keyed cylindrical lockset features heavy-gauge steel mechanism with 2-3/4" standard backset and adjustable door thickness from 1-3/4" to 2". ANSI/BHMA A156.2 Series 4000 Grade 2 certified with UL/cUL fire rating up to 3 hours for demanding commercial and institutional environments.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 2 certification for demanding commercial applications. UL/cUL fire-rated up to 3 hours with 5-year mechanical warranty provides confidence in high-traffic institutional environments. Engineered for dependable performance where attractive design meets commercial durability requirements.

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Passage
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5328LN
Collection:
5300 Series
Product Function:
Passage/Hall/Closet
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-PB-5328LN-626 – Frequently Asked Questions

1) My doors are prepped for a 2-3/8 inch backset. Can I still use the 5328LN?
Yes, with the right extension link. The 5328LN ships 2-3/4 inch backset as standard, and 2-3/8 inch, 3-3/4 inch and 5 inch extension links can be ordered for other preps. Specify the backset with the order so you aren't re-boring the door.
2) Does the 5328LN lever lock at all, or is it always free to turn?
It never locks. This is a passage function (also called hall/closet), non-keyed, with no cylinder and no inside turn button, so both levers always retract the latch. For a bathroom or bedroom you need a privacy function instead, and for a keyed opening a storeroom, entrance or classroom function.
3) Do I have to order the Accentra 5328LN handed for left or right doors?
No handing to specify. The 5328LN is non-handed and the front is universal for both flat and beveled door edges, so one part number works on either swing. The strike is reversible as well.
4) Can I use this Accentra passage lever on a fire-rated corridor door?
Yes. The 5328LN is UL/cUL fire rated up to 3 hours and meets ANSI/BHMA A156.2 Series 4000 Grade 2. It is also windstorm certified, though you should confirm against local code for that application.
5) Will the 5328LN latch into the strike already in my frame?
The latchbolt has a 1/2 inch stainless steel throw and ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door. If your existing frame strike is a standard ANSI cylindrical prep with matching lip projection it will pick up; if the frame is set back further, other lip lengths can be ordered.
6) Will the 5328LN fit a 1-3/8 inch door, or do I need a different passage lever?
The Accentra 5328LN Pacific Beach adjusts from 1-3/4 inch to 2 inch as supplied, with 1-3/8 inch or 2-1/4 inch versions available to order. If you want an off-the-shelf lever that covers 1-3/8 inch, the Hager 2510 Grade 2 passage lever with the Withnell design spans 1-3/8 inch to 2 inch, the Dexter C1000 Grade 1 clutching passage lever covers 1-3/8 inch to 1-3/4 inch, and the Falcon K101 Grade 1 passage covers 1-3/8 inch to 2-1/4 inch.
7) What is a direct Grade 2 passage lever equivalent to the Accentra 5328LN Pacific Beach?
The Accentra 5328LN Pacific Beach is a Grade 2 non-keyed cylindrical passage lever with a 1-3/4 inch to 2 inch adjustable door thickness range. The Arrow GL01 of the GL Series matches on all three points: Grade 2, passage/hall/closet function, and a 1-3/4 inch to 2 inch door thickness range, with the Sierra lever instead of Pacific Beach. The Falcon B101 is also a Grade 2 medium duty cylindrical passage lever with a non-handed design, matching the 5328LN's non-handed reversibility.
8) I need a heavier passage lever than Grade 2 for a high-abuse corridor - what should I use instead of the 5328LN?
The Accentra 5328LN Pacific Beach is certified to ANSI/BHMA A156.2 Series 4000 Grade 2. For Grade 1 passage duty, the Corbin Russwin CL3110 is a Grade 1 vandal resistant cylindrical passage/closet lever, fire rated, with a 1-3/4 inch to 2 inch door thickness range. The Falcon K101 is Grade 1 heavy duty passage, fire rated, covering 1-3/8 inch to 2-1/4 inch doors, and the Falcon T101 is a Grade 1 heavy duty passage lever with pressure release technology. Design Hardware's X75 is a Grade 1 passage lever for 1-3/4 inch doors.
9) The 5328LN is non-keyed passage - what do I order for the same opening if the door has to lock?
The Accentra 5328LN Pacific Beach is a non-keyed passage function, so it latches but never locks. For a locking cylindrical lever in the same Grade 2 class, the Hager 2580 is a Grade 2 storeroom lever with the Withnell design, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt, the Falcon B511CP6D is Grade 2 entry/office, and the Hager 2525 is a Grade 2 commercial entry lever. For a bath or bedroom, the Hager 2540 uses the Withnell lever and the Arrow MK02-TA is a privacy function with a Tudor knob.
10) Is a dummy lever the same thing as the 5328LN passage lever?
No. The Accentra 5328LN Pacific Beach is a passage function cylindrical lockset with a working latch - a 1/2 inch stainless steel latchbolt throw that retracts when the lever turns. A dummy trim has no latch and no moving mechanism; it is surface-applied pull trim. The BEST 7KC single dummy trim is a Grade 2 non-keyed dummy, the BEST 9K 1DT is Grade 1 heavy duty dummy, and the Callan Bentley is a Grade 2 dummy lever. Order those only for inactive leaves or closet faces that do not latch.
11) What finishes does the Accentra 5328LN Pacific Beach lever come in?
Ten finishes are orderable: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, BSP black suede powder coat and WSP white suede powder coat. PVD is standard on 605 and 606, which matters if you're matching brass across a lobby and don't want lacquer wear.
12) Is a Grade 2 passage lever enough for a school or hospital corridor, or should I step up to Grade 1?
Grade 2 covers most commercial and institutional passage openings, and the 5328LN uses a heavy-gauge steel, zinc-plated and dichromated mechanism for that duty. On very high abuse doors, Grade 1 passage options we carry include the Corbin Russwin CL3110 (vandal resistant, fire rated, 1-3/4 to 2 inch doors), the Falcon K101 and the Falcon T101 heavy duty.
13) Can the 5328LN be keyed later or take a 7-pin core to match our master key system?
No. The 5328LN is a non-keyed passage lock with no cylinder, and within the 5300LN line 7-pin is not offered at all. To get an opening onto your keyway you need a keyed function from the series, ordered with the 6-pin brass cylinder.
14) Do I need anything besides the lever set to finish the install on a 2-1/4 inch thick door?
Yes, order it built for that thickness. The standard 5328LN adjusts 1-3/4 to 2 inches only; 2-1/4 inch doors are a to-order configuration. Also note lead shielding isn't offered on this series, so it won't suit a radiology door.
15) Is the Baldwin 5103 passage lever an alternative to the Accentra 5328LN?
Both are passage function levers, but they serve different openings. The Accentra 5328LN Pacific Beach is a commercial Grade 2 cylindrical lockset with a 2-3/4 inch standard backset and UL/cUL fire rating up to 3 hours, built for offices, schools, and healthcare corridors. The Baldwin Estate 5103 passage lever with the 5048 rose is decorative residential-style trim; Baldwin also offers it as left and right hand half dummies and as a privacy set. Use the 5103 where the look drives the job and the 5328LN where a commercial grade and fire label are required.
16) Can I substitute a residential Grade 3 passage lever for the Accentra 5328LN in a commercial building?
The Accentra 5328LN Pacific Beach is a commercial Grade 2 lever certified to ANSI/BHMA A156.2 Series 4000 and UL/cUL fire rated up to 3 hours. Grade 3 passage levers such as the Kwikset 200BRNL Breton, which covers 1-3/8 inch to 1-3/4 inch doors, and the Callan Asheville Grade 3 passage lever sit in a lighter duty class and are aimed at residential and light interior openings. If your opening is a labeled fire door or a specified commercial corridor, stay with the Grade 2 5328LN or step up to a Grade 1 such as the Corbin Russwin CL3110.
17) We want keyless entry on a door where the 5328LN would normally go - what are the options?
The Accentra 5328LN Pacific Beach is a mechanical non-keyed passage lever with no code entry. For pushbutton access on a comparable lever-style body, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for 1-3/16 inch to 2 inch doors, the Lockey 2835DC adds double combination, and the Lockey 1150 is a heavy duty mechanical keypad lever set with double combination and passage function for 1-1/8 inch to 2 inch doors. The Delaney LP250 is a Grade 2 electronic keypad leverlock.
18) Which passage lever should I use on a door with a 2-3/8 inch backset instead of the 5328LN?
The Accentra 5328LN Pacific Beach ships with a 2-3/4 inch standard backset and offers 2-3/8 inch, 3-3/4 inch, and 5 inch extension links to order, so it can be ordered to suit a 2-3/8 inch prep. Among peers, the Cal-Royal AG series is available both ways - the AG00 entrance lever is specified at a 2-3/8 inch backset and the AG03 classroom lever at 2-3/4 inch - though both are keyed functions rather than passage.
19) I'm replacing dummy levers with working passage levers on closet doors. Does the 5328LN work there?
It does, and it's the functional step up from a dummy. A dummy trim such as the BEST 7KC 1DT or the Callan Bentley is just a pull with no latch; the 5328LN is a full cylindrical lockset with a 1/2 inch deadlocking-style latch that actually holds the closet door shut. Confirm the door is bored for a cylindrical lock at 2-3/4 inch backset, since dummy trim often has no cross bore.
20) How does the Accentra 5328LN compare with Bravura passage leversets on lever styling?
The Accentra 5328LN uses the Pacific Beach lever on a Grade 2 cylindrical passage chassis in 13 finishes, including PVD lifetime options. Bravura offers several Grade 2 passage leversets with different trim looks: the Atlanta and Orlando with round trim, the Tampa with square trim, and the Miramar with round trim in US4 satin brass. If the specification calls for square rose trim, the Tampa covers that; the 5328LN and the round-trim Bravura sets are the round-rose alternatives.
21) What is the closest passage lever to the 5328LN for a door already prepped at 1-3/4 inch only?
The Accentra 5328LN Pacific Beach is adjustable across 1-3/4 inch to 2 inch, so it drops into a 1-3/4 inch prep. Design Hardware's J75 passage lever with a flat lever is a Grade 2 unit specified for 1-3/4 inch doors, and the X75 is the Grade 1 flat-lever passage equivalent at the same 1-3/4 inch thickness. Both are single-thickness units, where the 5328LN carries the adjustable range if you later standardize across doors of differing thickness.
