Accentra 5301LN Pacific Beach ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$367.87
$211.44

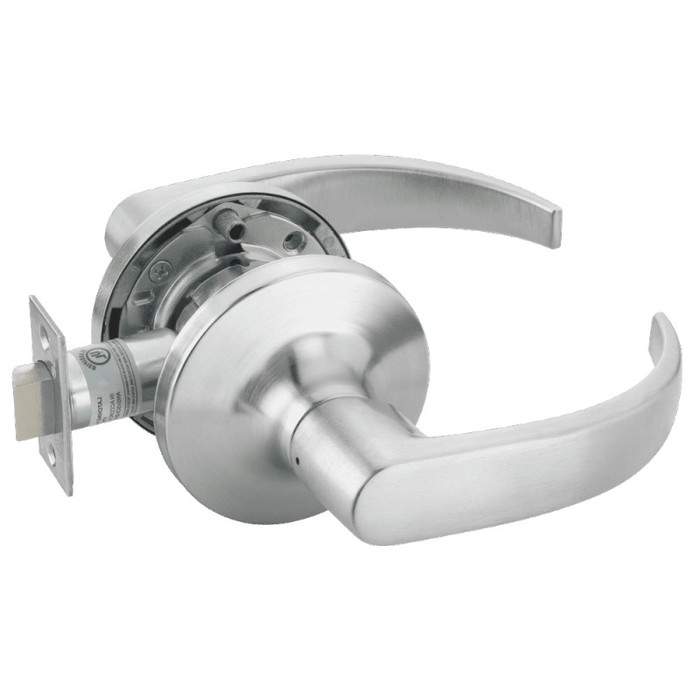

Yale Commercial Yale 5301LN Pacific Beach Grade 2 Passage or Closet Latch Non-Keyed Cylindrical Lever Lock YAL-PB-5301LN

Accentra 5301LN Pacific Beach Grade 2 Cylindrical Lever Lock - Passage Function

(No reviews yet) Write a Review

Model: YAL-PB-5301LN-626
From the 5300 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$367.87
$211.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5301LN Pacific Beach Grade 2 Cylindrical Lever Lock - Passage Function

Commercial-Grade Cylindrical Lever Lock for Passage Applications

The Accentra 5301LN Pacific Beach lever lock delivers Grade 2 commercial performance with heavy-gauge steel construction and 1/2" stainless steel latchbolt throw. Designed for passage and closet applications, this cylindrical lever lock features adjustable door thickness from 1-3/4" to 2" and 2-3/4" standard backset with extension options available. ANSI/BHMA A156.2 Series 4000 Grade 2 certified with UL/cUL fire rating up to 3 hours for demanding commercial installations.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2", backset requirements, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra 5300LN Series lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 2 certification for demanding commercial applications. UL/cUL fire-rated up to 3 hours with 5-year mechanical warranty for added confidence and protection. Engineered for commercial and institutional markets where dependable performance and code compliance are essential.

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Passage/Hall/Closet
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5301LN
Collection:
5300 Series
Product Function:
Passage/Hall/Closet
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-PB-5301LN-626 – Frequently Asked Questions

1) Does the Accentra 5301LN lock or key at all?
It does not. The 5301LN is a passage function lever, non-keyed, so both levers always retract the latch and the door is never secured. Use it on corridors, halls and closets. For a bed or bath door you want a privacy function instead, and for a keyed opening you need an entrance or storeroom function lock.
2) What backset does the Accentra 5301LN come with, and can I get it for a 2-3/8 inch prep?
It ships with a 2-3/4 inch backset as standard. Extension links are available to order for 2-3/8 inch, 3-3/4 inch and 5 inch backsets, so an existing 2-3/8 inch bore is covered, but that link has to be specified at time of order.
3) Can the Accentra 5301LN go on a fire rated door?
Yes. The 5301LN carries UL/cUL fire rating up to 3 hours and is certified to ANSI/BHMA A156.2 Series 4000 Grade 2. It is also windstorm certified, though you should follow your local code on that. Note lead shielding is not offered on this lock, so it is not an option for X-ray room doors.
4) Will the Accentra 5301LN latch into the strike already in my frame?
The latchbolt is stainless steel with a 1/2 inch throw, and the lock ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door. If your existing frame has a different lip length, other lip lengths can be ordered, and all of them are reversible.
5) What is a direct Grade 2 cylindrical passage lever equivalent to the Accentra 5301LN Pacific Beach?
The Arrow GL01 is the closest straight swap. Like the Accentra 5301LN, it is a non-keyed Grade 2 cylindrical passage/hall/closet lever lock with an adjustable 1-3/4 inch to 2 inch door thickness range, so it fits the same door prep. The difference is the lever design: Sierra on the Arrow GL01 versus the Pacific Beach lever on the 5301LN. Falcon B101 is another Grade 2 cylindrical passage lever, rated medium duty and non-handed like the 5301LN.
6) If a passage opening needs Grade 1 instead of Grade 2, what lever lock should be used in place of the Accentra 5301LN?
The Accentra 5301LN Pacific Beach is certified to ANSI/BHMA A156.2 Series 4000 Grade 2. For a Grade 1 passage function in the same cylindrical format, the Corbin Russwin CL3110 is a Grade 1 vandal resistant cylindrical passage/closet lever with a fire rating and a 1-3/4 inch to 2 inch door thickness range. Falcon K101 is a Grade 1 heavy duty passage cylindrical lock, fire rated, non-handed, covering 1-3/8 inch to 2-1/4 inch doors, and Falcon T101 is a Grade 1 heavy duty passage lever as well. Dexter C1000 passage is Grade 1 with clutching levers for 1-3/8 inch to 1-3/4 inch doors.
7) The Accentra 5301LN is non-keyed passage. What do I order if the same door needs to lock?
The 5301LN Pacific Beach is a non-keyed passage/hall/closet latch, so it never locks. For a locking function in a comparable Grade 2 cylindrical lever, Hager offers 2525 entry, 2540 privacy, and 2580 storeroom, all Grade 2 for 1-3/8 inch to 2 inch doors. Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt, AG03 is a classroom lever in the AG series, and Falcon B511CP6D is a Grade 2 entry/office cylindrical lever.
8) For doors thinner than the Accentra 5301LN covers, what Grade 2 passage lever fits?
The Accentra 5301LN Pacific Beach adjusts from 1-3/4 inch to 2 inch as supplied. If the doors are 1-3/8 inch, the Hager 2510 is a Grade 2 passage cylindrical lever with the Withnell design covering 1-3/8 inch to 2 inch. Falcon K101 spans 1-3/8 inch to 2-1/4 inch at Grade 1, and Dexter C1000 passage covers 1-3/8 inch to 1-3/4 inch.
9) Is the Accentra Pacific Beach lever handed, and do I need to specify left or right?
No handing to specify. The 5301LN is non-handed and the strike is reversible, so one part number works on either swing. The front is universal for flat or beveled door edges, which is one less thing to call out on the order.
10) I need a Grade 1 passage lever instead of Grade 2. What should I look at?
The 5301LN is Grade 2, which suits offices, retail and multi-tenant corridors. For heavier traffic, the Corbin Russwin CL3110 is a Grade 1 vandal resistant passage lever rated for 1-3/4 to 2 inch doors and fire rated, and the Falcon K101 is a Grade 1 passage lock covering 1-3/8 to 2-1/4 inch doors.
11) Which passage levers look like substitutes for the Accentra 5301LN but are not right for a commercial opening?
Two groups to rule out. First, residential-grade passage levers: the Kwikset 200BRNL Breton passage lever and Callan Asheville passage leverset are Grade 3, where the Accentra 5301LN Pacific Beach is Grade 2 commercial. Second, dummy trim, which has no latch at all and only pulls the door: BEST 7KC 1DT single dummy trim, BEST 9K 1DT, Callan Bentley dummy lever, and the Baldwin Estate 5103 half dummy levers are all dummy function. Baldwin also builds the 5103 in a true passage function if the decorative look is what you are after.
12) Is there a keyless-code passage lever alternative to the Accentra 5301LN for a door that needs controlled access without keys?
The Accentra 5301LN Pacific Beach is a mechanical non-keyed passage latch with no code or key entry. For code-based access in a lever format, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for 1-3/16 inch to 2 inch doors, and the 2835DC adds a double combination. Lockey 1150 is a heavy duty mechanical keypad lever set with passage function for 1-1/8 inch to 2 inch doors, and the 1150S adds an adjustable backset. The Delaney LP250 is an electronic keypad leverlock rated Grade 2.
13) How does the Accentra 5301LN compare with the Design Hardware J75 and X75 passage levers?
All three are cylindrical passage/hall/closet lever locks. The Design Hardware J75 is Grade 2 and the X75 is Grade 1, and both are listed for 1-3/4 inch doors with a flat lever. The Accentra 5301LN Pacific Beach is Grade 2 and adjusts from 1-3/4 inch to 2 inch, with the Pacific Beach lever design and universal fronts for flat and beveled door edges.
14) What finishes does the Accentra 5301LN Pacific Beach lever come in?
Ten orderable finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, plus black suede and white suede powder coat. PVD is standard on 605 and 606, which is what you want where humidity or hand oils tend to wear a plated brass finish off.
15) What is the 5301LN mechanism made of, and will it hold up in a school or hospital corridor?
The working mechanism is heavy-gauge steel, zinc plated and dichromated for corrosion resistance, with a stainless steel latchbolt. That is the construction Accentra puts behind its Grade 2 certification, and the 5300LN Series is aimed at commercial and institutional openings including educational and healthcare facilities.
16) I need a matching dummy lever for the inactive leaf of a pair. Does the 5301LN do that?
No. The 5301LN is a live passage lock with a working latch, not a dummy trim. For a fixed pull on an inactive leaf, look at a single dummy trim such as the BEST 7KC Series 1DT (Grade 2) or the BEST 9K Series 1DT (Grade 1, heavy duty).
17) Which passage levers offer the most finish choice compared with the Accentra 5301LN?
The Accentra 5301LN Pacific Beach is stocked across ten finish options, from 605 bright brass and 606 satin brass through 626 satin chrome, 693 black painted, and black and white suede powder coat. Among Grade 2 comparables, Bravura passage leversets are offered by style rather than a broad finish run, such as the Miramar in US4 satin brass, while the Atlanta and Orlando use round trim and the Tampa uses square trim.
