Yale Commercial Yale 5428LN Pacific Beach Heavy Duty Grade 1 Communicating Passage Door Cylindrical Lever Lock YAL-PB-5428LN

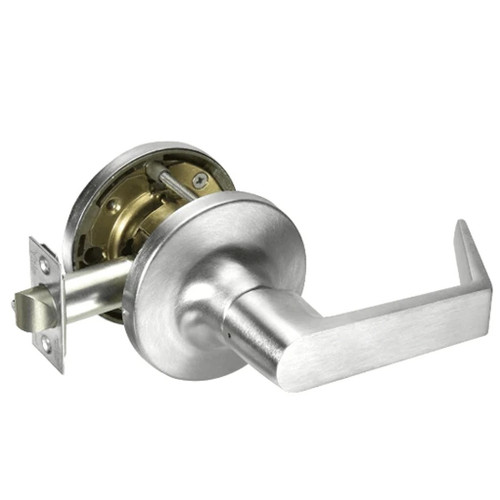

Accentra 5428LN Pacific Beach Heavy Duty Grade 1 Cylindrical Lever Lock with Passage Function

(No reviews yet) Write a Review

Model: PB-5428LN-626
From the 5400 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$795.80
$579.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5428LN Pacific Beach Heavy Duty Grade 1 Cylindrical Lever Lock with Passage Function

Professional Grade 1 Cylindrical Lever Lock for Commercial Applications

The Accentra 5428LN Pacific Beach lever lock delivers heavy-duty Grade 1 performance for demanding commercial and industrial applications. This cylindrical lockset features adjustable door thickness from 1-3/4" to 2-1/4", 2-3/4" standard backset with extension options, and 1/2" stainless steel latchbolt throw. ANSI/BHMA A156.2 Series 4000 Grade 1 certified with UL/cUL fire rating up to 3 hours for reliable access control in high-traffic environments.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 1
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order
  • Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2-1/4"
  • Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
  • Lead Shielding: Available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other cylinder and keying options, see page 31.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 7-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. The 7-year mechanical warranty and UL/cUL fire rating up to 3 hours demonstrate the exceptional quality and performance standards. Engineered for demanding commercial applications where dependable performance and code compliance are essential.

Product Specs

Series:
5400 Series
Subcategory:
Lever Locksets
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Passage
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5428LN
Collection:
5400 Series
Product Function:
Passage/Hall/Closet
Lever Design Name:
Pacific Beach Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra PB-5428LN-626 – Frequently Asked Questions

1) Will the Accentra 5428LN lever lock fit a 2 inch thick door?
Yes. The 5428LN Pacific Beach cylindrical lever is adjustable for door thickness from 1-3/4 inches to 2-1/4 inches, so 2 inch doors are within range without any special parts. If your doors are thinner than 1-3/4 inches, this is the wrong lock; the Falcon K101 passage lever covers 1-3/8 inches to 2-1/4 inches instead.
2) Does the 5428LN lock or key at all, or does the lever always turn?
It is passage function only. Both levers always retract the latch, there is no cylinder, no button and no key, so it cannot be locked. Use it on corridor doors, closets and hall openings where you only need a latch that holds the door closed. If you need a keyed opening in the same 5400 family, specify a keyed function instead of the 5428LN.
3) Is the Accentra 5428LN handed, and do I have to specify left or right?
No handing to specify. The 5428LN is non-handed and the strike is reversible, so one lock works on either a left or right hand door. That is useful for property managers buying a batch for mixed openings across a building.
4) Will the 5428LN latch into the strike already in my 2-3/4 inch backset frame?
The standard build is a 2-3/4 inch backset with a 1/2 inch stainless steel latchbolt throw and a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door, which is the common commercial prep. If your existing prep uses a deeper backset, a 3-3/4 inch or 5 inch extension link can be ordered, and a 3/4 inch throw latch and other strike lip lengths are also order options for deeper frame reveals.
5) Can I use this passage lever on a fire rated corridor door?
Yes. The 5428LN carries a UL/cUL fire rating up to 3 hours and meets ANSI/BHMA A156.2 Series 4000 Grade 1. It is also windstorm certified, though you should still check your local code for the specific opening.
6) What is a Grade 1 cylindrical passage lever equivalent to the Accentra 5428LN Pacific Beach?
The Falcon K101 is the closest straight equivalent: a Grade 1 heavy duty cylindrical passage lock with non-handed levers, fire rated, covering doors from 1-3/8 inch to 2-1/4 inch. The Accentra 5428LN is also a Grade 1 cylindrical passage leverset with a 1-3/4 inch to 2-1/4 inch adjustable door thickness range and UL/cUL fire rating up to 3 hours, so the K101 reaches thinner doors while matching at the top of the range. Falcon T101 is another Grade 1 heavy duty cylindrical passage lever option, and Corbin Russwin CL3110 is a Grade 1 fire rated passage/closet cylindrical lever built vandal resistant for 1-3/4 inch to 2 inch doors.
7) What should I order instead of the Accentra 5428LN if the door needs to lock?
The 5428LN is passage function, so it latches but never locks. For a keyed opening in the same cylindrical lever format, Dexter C1000 offers Grade 1 classroom and classroom security functions with clutching keyed levers, and a Grade 1 asylum function for 1-3/8 inch to 2 inch doors. Corbin Russwin CL33903 is a Grade 1 electrified fail safe lever at 12VAC/DC for 1-3/4 inch to 2 inch doors if the opening is on access control. In Grade 2, Hager 2580 is a storeroom cylindrical lock with the Withnell lever and Cal-Royal AG05 is a storeroom lever with a deadlocking latchbolt.
8) What passage lever should I use on a 2-inch or thicker door if the Accentra 5428LN is not available in the finish I need?
The Accentra 5428LN adjusts from 1-3/4 inch to 2-1/4 inch, which is the widest commercial range among comparable passage levers. Falcon K101 is the other Grade 1 passage lock that reaches 2-1/4 inch, covering 1-3/8 inch to 2-1/4 inch. Below that, Corbin Russwin CL3110 Grade 1 passage tops out at 2 inch and Hager 2510 Grade 2 at 2 inch, while Design Hardware X75 Grade 1 passage is built for 1-3/4 inch doors only. For doors over 2 inch, the 5428LN and K101 are the ones that fit.
9) Will a residential passage lever like the Kwikset 200BRNL work where the Accentra 5428LN is specified?
Not on a commercial or fire-rated opening. The Kwikset 200BRNL Breton passage lever is Grade 3 for 1-3/8 inch to 1-3/4 inch doors, and the Callan Asheville AH5011 is a Grade 3 passage leverset; those are residential-duty products. The Accentra 5428LN is a Grade 1 commercial cylindrical passage lock with a UL/cUL fire rating up to 3 hours and a 2-3/4 inch standard backset. Where a drawing calls out ANSI/BHMA A156.2 Series 4000 Grade 1, only a Grade 1 unit such as the 5428LN, Falcon K101 or Corbin Russwin CL3110 will satisfy it.
10) What finishes does the Pacific Beach 5428LN come in?
Nine finish choices are orderable: 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613E Dark Oxidized Satin Bronze equivalent, 619 Satin Nickel, 625 Bright Chrome, 626 Satin Chrome, BSP Black Suede Powder Coat and WSP White Suede Powder Coat. PVD is standard on 605 and 606, and PVD lifetime finish is offered for 613, which matters if you are matching bright brass openings that would otherwise lacquer-fail in a high traffic lobby.
11) How is this different from a Grade 2 passage lever like the Falcon B101 or Hager 2510?
Grade is the difference. The 5428LN is ANSI/BHMA Grade 1 with a heavy-gauge steel, zinc-plated and dichromated mechanism, built for high traffic openings. The Falcon B101 and the Hager 2510 are both Grade 2 passage levers, medium duty in the Falcon's case, and the Hager fits 1-3/8 inch to 2 inch doors. For schools, hospitals and heavily used corridors, spec Grade 1; for light interior traffic in an office suite, Grade 2 is usually accepted.
12) What other Grade 1 passage levers could I use if the 5428LN does not suit my opening?
Two straight alternatives at the same grade: the Corbin Russwin CL3110 passage/closet lever, Grade 1, fire rated, for 1-3/4 inch to 2 inch doors, and the Dexter C1000 Series Grade 1 passage lever with a clutching handle for 1-3/8 inch to 1-3/4 inch doors. The Dexter is the one to look at if your doors are under 1-3/4 inches, since the 5428LN starts at 1-3/4 inches.
13) Do I need a cylinder or keys with a 5428LN, and what does the guardbolt do on it?
No cylinder and no keys are required, because passage function has no locking. The brass 6-pin keyed-random cylinder with two keys, the 7-pin option and the guardbolt that deadlocks the latchbolt all belong to the locking functions in the 5400LN family, not to the non-keyed 5428LN. What you do get to decide on the order is finish, backset extension, latch throw, strike lip length, a flat front in place of the 2-1/4 x 1-1/8 inch beveled front, and lead shielding for X-ray rooms.
14) Is the 5428LN a mortise lock or a bored cylindrical lock?
It is a cylindrical (bored) lockset, part of the Accentra 5400 Series, so it installs in a standard cross-bore and edge-bore door prep rather than a routed mortise pocket. If your existing doors are prepped for a mortise case, this lock will not drop in without a new prep or a filler plate.
15) Is there a lighter-duty passage lever I can use instead of the Accentra 5428LN on low-traffic interior doors?
Yes. The Falcon B101 is a Grade 2 medium duty cylindrical passage lever with a non-handed design, and the Hager 2510 is a Grade 2 passage cylindrical lever with the Withnell design for 1-3/8 inch to 2 inch doors. Arrow GL01 is a Grade 2 non-keyed passage cylindrical lock with the Sierra lever for 1-3/4 inch to 2 inch doors. The Accentra 5428LN is Grade 1 and carries a UL/cUL fire rating up to 3 hours, so where a fire-rated opening or heavy traffic is in play, stay with the Grade 1 unit.
16) Can I use a dummy lever in place of the Accentra 5428LN passage lockset?
No. The 5428LN is a passage cylindrical lockset with an operating latch, while dummy trim is fixed and has no latch at all. BEST 9K Series 1DT is Grade 1 heavy duty single dummy trim and BEST 7KC 1DT is the Grade 2 medium duty single dummy version; Callan Bentley BN5051 is a Grade 2 dummy lever. Those are for inactive leaves and closet faces where nothing needs to latch. If the door must latch closed, the 5428LN or another passage function lock is the correct item.
17) What is a keyless pushbutton alternative to the Accentra 5428LN for a passage opening?
Lockey offers mechanical keypad lever sets with passage function: the 2835 single combination and 2835DC double combination fit doors from 1-3/16 inch to 2 inch, and the Lockey 1150 heavy duty keypad lever set with double combination covers 1-1/8 inch to 2 inch. Delaney LP250 is a Grade 2 electronic keypad leverlock. These add code entry, where the Accentra 5428LN is a non-keyed passage function that latches only and takes no credential.
18) I want to match dummy levers on inactive leaves to my 5428LN openings. What should I look at?
The 5428LN is a working passage latch, not a trim-only dummy, so for an inactive leaf you need a separate dummy. Grade 1 dummy trim options include the BEST 9K Series 1DT single dummy cylindrical lever, and for a medium duty run the BEST 7KC Series 1DT single dummy at Grade 2. Lever design and finish will not match the Pacific Beach lever across brands, so keep the dummies on doors where a visual difference is acceptable.
19) I need a decorative passage lever for a hospitality corridor instead of the Accentra 5428LN. What are the options?
For a decorative look, the Baldwin Estate 5103 passage lever with the 5048 rose is a passage function leverset, and Bravura offers passage leversets in several styles: Miramar and Atlanta and Orlando with round trim, and Tampa with square trim, all Grade 2. The Accentra 5428LN Pacific Beach lever is the commercial Grade 1 choice, and it comes in 13 finishes including PVD lifetime finishes, so on a job that mixes public and back-of-house doors you can run the decorative levers up front and the 5428LN on the rated and high-traffic openings.
20) How does the Accentra 5428LN compare to a knob lockset for the same opening?
The 5428LN uses a lever handle, which is what ADA-conscious specifications generally call for on commercial doors. Knob-style comparables include the Arrow MK02-TA Grade 2 privacy with a Tudor knob, the Arrow HK11 pushbutton entrance with a ball knob for 1-3/8 inch to 1-3/4 inch doors, and the Arrow MK33 asylum function with a ball knob. Those are different functions as well as different trim, so they are not drop-in replacements for a Grade 1 passage leverset.
