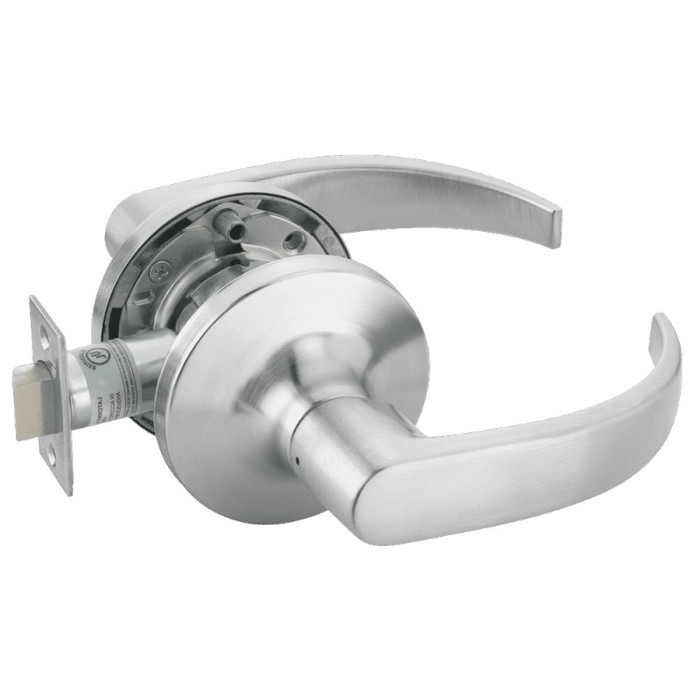

Accentra 5401LN Pacific Beach Heavy Duty Grade 1 Passage Cylindrical Lever Lock

Accentra 5401LN Pacific Beach Heavy Duty Grade 1 Passage Cylindrical Lever Lock

Professional Grade 1 Commercial Lever Lock Solution

The Accentra 5401LN Pacific Beach lever lock delivers heavy-duty Grade 1 performance for demanding commercial applications. This cylindrical lockset features adjustable door thickness from 1-3/4" to 2-1/4", 2-3/4" standard backset, and 1/2" stainless steel latchbolt throw. ANSI/BHMA Grade 1 certified with UL/cUL fire rating up to 3 hours, this passage function lock provides reliable non-keyed access control for high-traffic environments.

Professional Features & Benefits

• ANSI/BHMA: A156.2, Series 4000 Grade 1
• UL/cUL: UL/cUL fire-rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Heavy-gauge steel, zinc-plated, dichromated
• Backset: 2-3/4" standard; 3-3/4" or 5" extension link available to order
• Latchbolt: 1/2" stainless steel throw standard; 3/4" throw available to order
• Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
• Door Thickness: Adjustable from 1-3/4" to 2-1/4"
• Fronts: 2-1/4" x 1-1/8" beveled standard; flat fronts available to order
• Lead Shielding: Available to order
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order. For other cylinder and keying options, see page 31.
• Reversibility: Non-handed
• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
• Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
• Warranty: 7-year mechanical

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2-1/4", 2-3/4" backset, and non-handed installation compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for cylindrical lockset installation.
3. Prepare door by drilling required holes per manufacturer specifications for the cylindrical mechanism and latchbolt assembly.
4. Install all mounting hardware and secure the lockset to door per manufacturer torque specifications, ensuring proper alignment of internal components.
5. Adjust lever operation and latchbolt throw for proper alignment, smooth operation, and secure latching throughout the full range of motion.
6. Test device operation to verify proper passage function, guardbolt engagement, and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra lever lock products deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. The 7-year mechanical warranty and UL/cUL fire rating up to 3 hours demonstrate the manufacturer's commitment to quality and safety. Engineered for high-traffic environments where dependable access control and long-term performance are essential.
