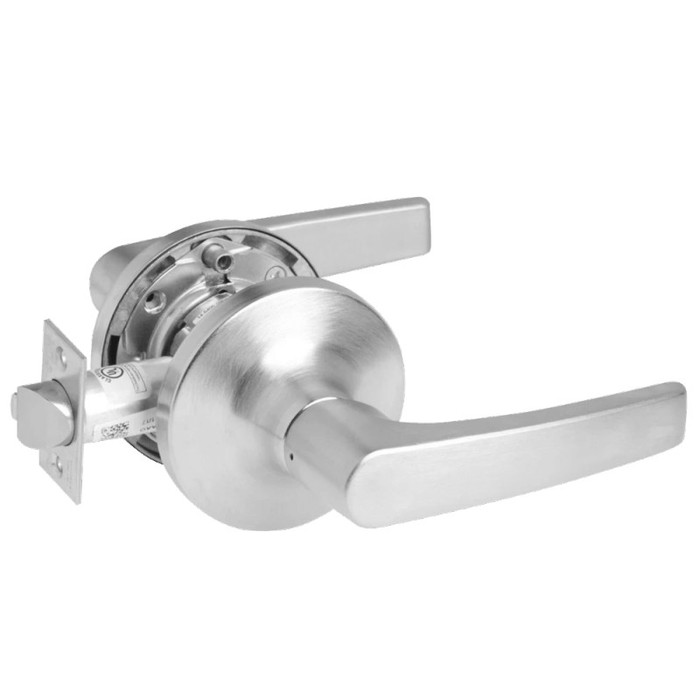

Yale Commercial Yale 5301LN Monroe Grade 2 Passage or Closet Latch Non-Keyed Cylindrical Lever Lock YAL-MO-5301LN

Accentra 5301LN Monroe Grade 2 Cylindrical Lever Lock - Passage/Closet Function

(No reviews yet) Write a Review

Model: YAL-MO-5301LN-626
From the 5300 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$367.87
$216.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5301LN Monroe Grade 2 Cylindrical Lever Lock - Passage/Closet Function

Commercial-Grade Non-Keyed Lever Lock for Professional Applications

The Accentra 5301LN Monroe lever lock delivers Grade 2 commercial performance with heavy-gauge steel construction and 1/2" stainless steel latchbolt throw. Designed for passage and closet applications, this cylindrical lever lock accommodates door thickness from 1-3/4" to 2" with standard 2-3/4" backset. ANSI/BHMA A156.2 Series 4000 Grade 2 certified and UL/cUL fire-rated up to 3 hours for demanding commercial installations.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2", standard 2-3/4" backset, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra lever lock products deliver professional-grade reliability with heavy-gauge steel construction and Grade 2 certification for demanding commercial applications. UL/cUL fire-rated up to 3 hours with 5-year mechanical warranty for added confidence. Engineered for institutional and commercial markets where dependable performance and code compliance are essential.

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Passage/Hall/Closet
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5301LN
Collection:
5300 Series
Product Function:
Passage/Hall/Closet
Lever Design Name:
Monroe Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-MO-5301LN-626 – Frequently Asked Questions

1) Does the Accentra 5301LN lock, or does it just latch the door?
No locking at all. The 5301LN Monroe is a passage/hall/closet function, non-keyed, so both levers always retract the latch and there is no button, thumbturn or cylinder. Use it on corridor, closet and stairwell doors where the door only needs to stay latched shut. For a bathroom or bedroom you need a privacy function, and for anything requiring a key you need an entrance, office or storeroom lock instead.
2) Can I use the 5301LN Monroe lever on a fire rated door?
Yes. The 5301LN carries UL/cUL fire ratings up to 3 hours and is ANSI/BHMA A156.2 Series 4000 Grade 2 certified. It is also windstorm certified, though local code governs that application. For a passage opening on a rated door the latch is what matters, and the 1/2 inch stainless steel latchbolt throw is what keeps the door held in the frame.
3) Do I have to specify handing when I order the Accentra 5301LN?
No handing to call out. The 5301LN Monroe is non-handed and reversible in the field, so one part number covers left and right hand doors. The front is universal for both flat and beveled door edges, which is the other detail that usually forces a second SKU on cheaper locks. Order the finish and go.
4) Will the Accentra 5301LN latch into the strike that is already in my frame?
The latchbolt throws 1/2 inch in stainless steel, which is the standard cylindrical lockset throw, so an existing ANSI cylindrical strike normally catches it. The lock ships with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door, and other lip lengths can be ordered when the frame is set back further than usual. All strikes are reversible, so the lip does not change with the swing.
5) My doors are 1-3/8 inch. What passage lever works instead of the Accentra 5301LN?
The stock 5301LN starts at 1-3/4 inches, so a 1-3/8 inch door needs either the special-order 1-3/8 version or a different lock. Off the shelf, the Hager 2510 Grade 2 passage lever covers 1-3/8 to 2 inches, and the Falcon K101 Grade 1 passage covers 1-3/8 to 2-1/4 inches. On light residential-grade interior doors the Kwikset 200BRNL Breton passage lever handles 1-3/8 to 1-3/4 inches. Older interior doors are commonly 1-3/8 inch, so check before ordering the Accentra.
6) The Accentra 5301LN will not fit a 1-3/8 inch door. What passage lever will?
The Accentra 5301LN Monroe is built for 1-3/4 inch to 2 inch doors. For a thinner leaf, the Hager 2510 passage lever with the Withnell design covers 1-3/8 inch to 2 inch, and the Falcon K101 Grade 1 passage lock covers 1-3/8 inch to 2-1/4 inch. Both stay in commercial passage territory. On light residential interior doors, the Kwikset 200BRNL Breton passage lever is Grade 3 and covers 1-3/8 inch to 1-3/4 inch.
7) What should I use instead of the Accentra 5301LN on a high-traffic corridor door?
Step up to a Grade 1 passage lever. The Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers, fire rated, and covers 1-3/8 inch to 2-1/4 inch doors. The Corbin Russwin CL3110 is another Grade 1 passage/closet lever, vandal resistant and fire rated, on a 1-3/4 inch to 2 inch door. The Accentra 5301LN Monroe is Grade 2 with a 1/2 inch stainless latchbolt and UL/cUL fire rating up to 3 hours, which suits offices, classrooms and closets; the Grade 1 options are built for the cycle counts a main corridor or a school entry hallway sees.
8) Is a dummy lever the same thing as the Accentra 5301LN passage lock?
No, and this is the substitution that gets returned. The Accentra 5301LN Monroe is a working passage lock with a 1/2 inch stainless steel latchbolt that actually latches the door. A dummy trim is a fixed pull with no latch at all. The BEST 7KC single dummy trim is a Grade 2 non-keyed medium duty cylindrical lever trim, the BEST 9K 1DT is the Grade 1 heavy duty version, and the Callan Bentley is a Grade 2 dummy lever. Use a dummy only on an inactive leaf or a door held by a ball catch; a closet door that needs to stay shut takes the 5301LN.
9) What is the closest Grade 2 passage lever equivalent to the Accentra 5301LN Monroe?
The Arrow GL01 is the nearest straight equivalent. Like the Accentra 5301LN Monroe, it is a non-keyed Grade 2 cylindrical lock with a passage/hall/closet function and a 1-3/4 inch to 2 inch door thickness range, so it fits the same prepped opening. The difference is the lever style: the GL01 carries the Sierra lever where the 5301LN carries the Monroe lever. If a facility is standardizing on one lever shape across a floor, that is the point to check before mixing the two.
10) Can I use the Accentra 5301LN on a bathroom or bedroom door that needs to lock?
No. The Accentra 5301LN Monroe is a non-keyed passage/hall/closet lock, meaning the lever always retracts the latch and nothing locks. For a door that has to secure from the inside, move to a privacy function: the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever on 1-3/8 inch to 2 inch doors, and the Arrow MK02-TA is a non-keyed privacy cylindrical lock, fire rated, for 1-3/4 inch to 2 inch doors with a Tudor knob rather than a lever.
11) I need a keyed lock on the same door prep as the Accentra 5301LN. What are my options?
The Accentra 5301LN Monroe is non-keyed. Staying at Grade 2 in a cylindrical lever, the Hager 2525 is a commercial entry lock with a lever handle for 1-3/8 inch to 2 inch doors, the Hager 2580 is a Grade 2 storeroom lock with the Withnell lever, and the Falcon B511CP6D is a Grade 2 entry/office cylindrical lever. If the door needs a specific keyway, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt and the Cal-Royal AG03 is a classroom lever with a 6-pin Schlage C keyway on a 2-3/4 inch backset, which is the same backset the 5301LN uses as standard.
12) Does the Accentra 5301LN work as a substitute for a classroom or storeroom lever?
No. The Accentra 5301LN Monroe is a passage/hall/closet function with no cylinder, so it cannot be keyed or secured. For a classroom door, the Dexter C1000 is a Grade 1 clutching classroom cylindrical lever for 1-3/8 inch to 1-3/4 inch doors, with a classroom security version in the same series. For a storeroom, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors. Where a facility runs the 5301LN on closets and corridors, those keyed functions cover the rooms that have to lock.
13) What finishes does the Accentra 5301LN Monroe lever come in?
Ten orderable finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, BSP black suede powder coat and WSP white suede powder coat. PVD is standard on 605 and 606, which is what keeps a bright brass lever from going patchy in a high-traffic corridor. 626 satin chrome is the usual commercial default if you are matching existing openings.
14) Can I standardize a whole floor on the 5300 Series with different functions on different doors?
That is what the 5300LN series is built for. The 5301LN Monroe is the passage function within it, so corridor and closet doors get the 5301LN while entrance, storeroom, classroom or privacy openings take the matching function in the same series and the same Monroe lever. Every door reads the same to a tenant, and your finish stays consistent since all functions draw on the same finish range. Trim and lever style match across the floor without stocking two brands.
15) Is the Accentra 5301LN chassis strong enough for a school corridor?
The mechanism is heavy-gauge steel, zinc-plated and dichromated, certified to ANSI/BHMA A156.2 Series 4000 Grade 2. That is the commercial medium-duty tier and it holds up in offices, retail and multi-tenant residential. On a school or hospital corridor taking constant abuse, a Grade 1 passage lever such as the Corbin Russwin CL3110 vandal resistant is the heavier answer.
16) Does the Accentra 5301LN come with a cylinder and keys?
No cylinder, and none is needed. The 5301LN is the non-keyed passage function, so there is no keyway to pin and nothing to key into your existing system. Cylinders come into play on the keyed functions in the 5300LN series, which take a brass 6-pin keyed-random cylinder with two keys furnished; 7-pin is not offered in this series. If your master key system is 7-pin, that rules out the keyed siblings, not this passage lock.
17) What is a lighter duty alternative to the Accentra 5301LN Monroe passage lever?
The Falcon B101 is a medium duty Grade 2 cylindrical passage lever with a non-handed design, matching the 5301LN Monroe on both grade and passage function. The Bravura Atlanta, Orlando and Tampa passage leversets are also Grade 2 passage locks with round trim on the Atlanta and Orlando and square trim on the Tampa. For interior residential or light commercial doors, the Callan Asheville is a Grade 3 passage leverset in satin nickel and the Kwikset 200DL Delta is a passage lever for interior hall and closet doors with an adjustable latch and round corner strike.
18) How does the Accentra 5301LN compare to the Design Hardware J75 and X75 passage levers?
All three are cylindrical passage/hall/closet lever locks. The Design Hardware J75 is Grade 2 with a flat lever for a 1-3/4 inch door, and the X75 is the Grade 1 flat lever passage lockset, also for a 1-3/4 inch door. The Accentra 5301LN Monroe is Grade 2 and adjusts across 1-3/4 inch to 2 inch, so on a door that measures over 1-3/4 inch, the adjustment range on the 5301LN is the deciding spec.
19) Is there a keypad lever that would replace the Accentra 5301LN where the closet needs code access?
Yes, though it is a different class of hardware. The Lockey 2835 is a mechanical pushbutton keyless lever lock with a passage function and ADA compliance for 1-3/16 inch to 2 inch doors, and the 2835DC is the double combination version. The Lockey 1150 is a heavy duty mechanical keypad lever set with a passage function for 1-1/8 inch to 2 inch doors, and the 1150S adds an adjustable backset. The Delaney LP250 is a Grade 2 electronic keypad leverlock. The Accentra 5301LN Monroe is purely mechanical and non-keyed, so it gives free passage with no code and no key.
20) I want a decorative passage lever instead of the Accentra 5301LN Monroe. What matches on function?
The Baldwin Estate 5103 passage lever with the 5048 rose carries the same passage/hall/closet function in a decorative Estate line, and it is offered as a privacy lever and as left hand and right hand half dummies if other doors in the same run need those functions. The Bravura Miramar passage leverset with round trim is Grade 2 in a US4 satin brass finish. The Accentra 5301LN Monroe is a commercial Grade 2 cylindrical lock offered in 13 finishes including 605 bright brass, 606 satin brass, 626 satin chrome and BSP black suede powder coat, so it can also match a brass or black scheme while staying commercial.
21) Is lead shielding available on the Accentra 5300LN locks for an X-ray room?
Lead shielding is not offered on the 5300LN series, so the 5301LN Monroe should not be specified for a radiology or imaging suite door that requires a shielded lock body. For those openings you need a lock line that offers a lead-lined option. Everywhere else in a healthcare facility, the 3-hour UL/cUL fire rating and Grade 2 certification cover the requirement.
