Accentra 5329LN Monroe Grade 2...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$398.00
$308.93

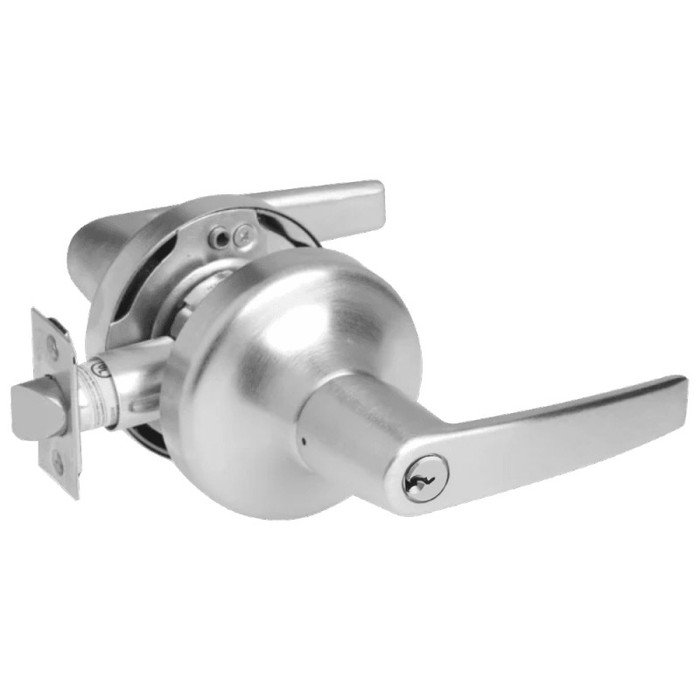

Yale Commercial Yale 5329LN Monroe Grade 2 Communicating Classroom Cylindrical Lever Lock YAL-MO-5329LN

Accentra 5329LN Monroe Grade 2 Communicating Classroom Cylindrical Lever Lock

(No reviews yet) Write a Review

Model: YAL-MO-5329LN-626
From the 5300 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$398.00
$308.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 5329LN Monroe Grade 2 Communicating Classroom Cylindrical Lever Lock

Professional Grade 2 Cylindrical Lever Lock for Commercial Applications

The Accentra 5329LN Monroe lever lock delivers Grade 2 security and reliability for commercial, institutional, and industrial applications. This communicating classroom function cylindrical lock features a 2-3/4" standard backset with adjustable door thickness from 1-3/4" to 2", and includes a 1/2" stainless steel latchbolt with guardbolt for enhanced security. ANSI/BHMA A156.2 Series 4000 Grade 2 certified and UL/cUL fire-rated up to 3 hours for code compliance.

Professional Features & Benefits

  • ANSI/BHMA: A156.2, Series 4000 Grade 2
  • UL/cUL: UL/cUL fire-rated up to 3 hours
  • Windstorm: Certified (refer to local codes)
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4" standard; 2-3/8", 3-3/4" or 5" extension links available to order
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: Adjustable from 1-3/4" to 2". Available for 1-3/" or 2-1/4" doors to order.
  • Fronts: Universal for both flat and beveled door edges
  • Lead Shielding: Not available
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin not available.
  • Reversibility: Non-handed
  • Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths available to order; all reversible
  • Finishes: Available in 13 finishes, including PVD lifetime finish options for 613. PVD is standard for 605 and 606
  • Warranty: 5-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2", 2-3/4" backset, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Classroom Security
  • Commercial Office Buildings
  • Healthcare Institutions
  • Industrial and Warehouse Facilities
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Institutional Buildings

Why Choose Accentra Quality?

Accentra cylindrical lever locks deliver professional-grade reliability with heavy-gauge steel construction and zinc-plated, dichromated mechanisms rated for demanding commercial applications. Grade 2 ANSI/BHMA certification and UL/cUL fire rating up to 3 hours ensure code compliance and dependable performance. Backed by a 5-year mechanical warranty, this lock is engineered for institutional and commercial environments where security and durability are essential.

Product Specs

Series:
5300 Series
Subcategory:
Lever Locksets
Grade:
Grade 2
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Communicating
Product Attribute:
Cylindrical Locks
Product Model:
YAL-5329LN
Collection:
5300 Series
Product Function:
Communicating
Lever Design Name:
Monroe Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-MO-5329LN-626 – Frequently Asked Questions

1) Will the Accentra 5329LN lever lock fit a 1-3/8 inch door?
No. The 5329LN is adjustable from 1-3/4 inches to 2 inches as furnished, so a 1-3/8 inch door is outside its range. If you need something thinner, the Dexter C1000 classroom lever covers 1-3/8 to 1-3/4 inches, and the Falcon K101 passage version spans 1-3/8 to 2-1/4 inches. Accentra does offer the 5329LN for 2-1/4 inch doors to order if you are going thicker instead.
2) What does the communicating function on the Accentra 5329LN actually do?
Communicating function means the lock is keyed on the outside and used where two spaces share a door, with key control from the corridor side and the latch retracted by lever. It is a keyed single-cylinder lock with a 6-pin brass cylinder and two keys supplied. If what you really need is a standard classroom lock (key outside, free egress inside, no inside locking), the Cal-Royal AG03 classroom lever or the Dexter C1000 classroom lever are the straight classroom-function options.
3) Is the Accentra 5329LN handed? Do I have to order left or right?
No handing to specify. The 5329LN is non-handed and reversible, and the front is universal for both flat and beveled door edges, so one part covers either swing. The strike is reversible as well.
4) My existing doors are drilled for a 2-3/8 inch backset. Can I use this Accentra lever there?
Yes, with the right extension link. The 5329LN ships with a 2-3/4 inch backset as standard, and 2-3/8 inch, 3-3/4 inch and 5 inch extension links are available to order. Specify the backset when you place the order so you get the correct link rather than reworking the door.
5) Can the Accentra 5329LN go on a fire-rated classroom or corridor door?
Yes. The 5329LN is UL/cUL fire rated up to 3 hours and certified to ANSI/BHMA A156.2 Series 4000 Grade 2. It is also windstorm certified, subject to your local code. Note that lead shielding is not available on this lock, so it is not the part for an X-ray room door.
6) Will this Accentra lock latch into the strike already in my frame?
The 5329LN uses a 1/2 inch stainless steel latchbolt throw with a guardbolt that deadlocks the latch once the door closes. It comes with a 1-1/4 inch curved lip strike sized for a 1-3/4 inch door. If your frame has a deeper or shallower lip, other lip lengths are available to order, and all strikes are reversible.
7) What is the closest Grade 2 classroom-function lever lock to the Accentra 5329LN Monroe?
The Cal-Royal AG03 is a Grade 2 classroom lever with a 2-3/4 inch backset and a 6-pin Schlage C keyway keyed different, matching the 5329LN Monroe's 2-3/4 inch standard backset. The 5329LN is a communicating classroom function in the 5300 Series with a brass 6-pin keyed-random cylinder, so the two differ in keyway family and in how the inside lever is controlled; confirm which keyway the building is already keyed to before substituting.
8) What Grade 2 lever should I use on a storeroom door instead of the Accentra 5329LN classroom lock?
The Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, and the Hager 2580 is a Grade 2 storeroom cylindrical lock with the Withnell lever for 1-3/8 inch to 2 inch doors. Storeroom keeps the outside lever locked at all times, where the Accentra 5329LN Monroe is a communicating classroom function.
9) We need the classroom door lockable from the inside as well - is the Accentra 5329LN the right lock?
For an opening where the occupant must secure the door from inside, the Dexter C1000 Series classroom security lever is a Grade 1 classroom security function with a clutching lever for 1-3/8 inch to 1-3/4 inch doors. The Accentra 5329LN Monroe is a communicating classroom function, a different arrangement of the two key cylinders, so verify the function letter against the hardware schedule.
10) Can a Kwikset or Callan lever be used in place of the Accentra 5329LN on a school corridor door?
Those are lighter-duty products: the Kwikset 200BRNL Breton passage lever is Grade 3 for 1-3/8 inch to 1-3/4 inch doors, and the Callan Artino entrance leverset is Grade 3. The Accentra 5329LN Monroe is ANSI/BHMA A156.2 Series 4000 Grade 2 with a heavy-gauge steel, zinc-plated and dichromated mechanism and UL/cUL fire rating up to 3 hours, which is what a fire-rated institutional corridor opening is typically specified to.
11) What finishes does the Accentra Monroe 5329LN come in, and which ones are PVD?
Ten finishes are orderable: 605 bright brass, 606 satin brass, 612 satin bronze, 613E dark oxidized satin bronze equivalent, 619 satin nickel, 625 bright chrome, 626 satin chrome, 693 black painted, BSP black suede powder coat and WSP white suede powder coat. PVD is standard on 605 and 606, and a PVD lifetime option exists for 613. For matching a building standard of satin chrome hardware, 626 is the one to specify.
12) Can I key the Accentra 5329LN into an existing master key system?
As furnished, the 5329LN comes with a brass 6-pin keyed-random cylinder and two keys, so out of the box it is not keyed to an existing system. It is a 6-pin lock only, 7-pin is not available, which matters if your facility standard runs 7-pin large format cores. For a jobsite standardized on Schlage C, the Cal-Royal AG03 classroom lever is a 6-pin Schlage C keyway lock we carry.
13) Is Grade 2 enough for a school or hospital corridor, or should I step up to Grade 1?
The 5329LN is a Grade 2 commercial cylindrical lock with a heavy-gauge steel, zinc-plated and dichromated mechanism, which suits normal commercial and institutional traffic. On very high abuse openings, a Grade 1 cylindrical lever is the step up: the Corbin Russwin CL3100 Series vandal resistant lever and the Falcon T101 heavy duty lever are Grade 1 options, both cylindrical so the door prep concept is the same.
14) I need matching non-keyed levers for closets and restrooms on the same job. What pairs with this Accentra lever?
The 5329LN itself is a keyed communicating lock, so for passage and privacy openings you need different functions. Within comparable Grade 2 cylindrical lines we carry, the Hager 2510 covers passage and the Hager 2540 privacy, both across 1-3/8 to 2 inch doors; the Falcon B101 is a non-handed Grade 2 passage lever. Levers will not look identical to the Monroe design, so if visual match across the floor matters, keep all openings in one series.
15) What is a simpler non-keyed lever if the door does not need to lock at all?
For a non-locking opening, the Falcon B101 is a Grade 2 medium duty cylindrical passage lever with a non-handed design, and the Arrow GL01 is a Grade 2 Sierra-lever passage lock rated for 1-3/4 inch to 2 inch doors, the same door thickness range the Accentra 5329LN Monroe adjusts to. The 5329LN is keyed with a brass 6-pin cylinder and two keys furnished, which a passage lock does not include.
16) What looks like a substitute for the Accentra 5329LN but will not actually lock the door?
Dummy trim is the common mix-up. The BEST 7KC Series 1DT is a Grade 2 medium duty single dummy cylindrical lever trim and the BEST 9K Series 1DT is the Grade 1 non-keyed heavy duty equivalent; both are surface trim with no latch and no cylinder. The Accentra 5329LN Monroe is a keyed cylindrical lock with a 1/2 inch stainless steel latchbolt and guardbolt.
17) Is there a keyless option for a classroom or office door instead of the keyed Accentra 5329LN?
The Lockey 2835 mechanical pushbutton keyless lever lock is a passage-function ADA compliant lever for 1 3/16 inch to 2 inch doors, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. The Accentra 5329LN Monroe uses a brass 6-pin keyed-random cylinder with two keys furnished, so keypad units remove the key system rather than joining it.
18) What Grade 2 lever matches the Accentra 5329LN for an office or entrance door in the same building?
The Hager 2525 is a Grade 2 commercial cylindrical entry lock with a lever handle for 1-3/8 inch to 2 inch doors, and the Falcon B511CP6D is a Grade 2 medium duty entry/office cylindrical lever. Both sit at the same ANSI/BHMA Grade 2 level as the Accentra 5329LN Monroe, which is the classroom-side function in the 5300 Series.
19) For a patient room or detention-type opening, what should be used instead of the Accentra 5329LN?
Asylum function is the usual call there. The Dexter C1000 Series asylum (F87) is Grade 1 for 1-3/8 inch to 2 inch doors, and the Arrow MK33-BD-CS is a Grade 2 heavy duty asylum lock with a ball knob and conventional Schlage C keyway cylinder. The Accentra 5329LN Monroe is a communicating classroom function with a lever handle, keyed on a single cylinder arrangement.
20) Is there a Grade 1 cylindrical lever line to standardize on if some doors in the facility exceed what the Accentra 5329LN covers?
The Corbin Russwin CL3100 Series CL3110 is a Grade 1 vandal resistant fire-rated cylindrical passage lever for 1-3/4 inch to 2 inch doors, and the Falcon K101 is a Grade 1 heavy duty fire-rated passage lock covering 1-3/8 inch to 2-1/4 inch. The Accentra 5329LN Monroe is Grade 2, UL/cUL fire-rated to 3 hours, and adjusts 1-3/4 inch to 2 inch with 2-1/4 inch doors available to order.
21) What should I use if the classroom door needs to be released by an access control system rather than a key?
The Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock operating on 12VAC/DC for 1-3/4 inch to 2 inch doors. The Accentra 5329LN Monroe is a mechanical cylindrical lock with no electrification, so an electrified lever also requires a power transfer at the hinge or frame that the 5329LN does not.
22) Can the Accentra 5329LN be used on a restroom door, or is a privacy lock the right choice?
A restroom normally takes privacy function: the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever for 1-3/8 inch to 2 inch doors, and the Kwikset 300BRNL Breton privacy lever is Grade 3 for 1-3/8 inch to 1-3/4 inch doors. The Accentra 5329LN Monroe is keyed on a communicating classroom function, which is not a thumbturn-operated privacy set.
23) Is the Accentra 5329LN the same lock as the Yale 5329LN?
Yes, same part. Accentra is the current name for the Yale Commercial line, and the 5300LN Series cylindrical lever locks carry over. The model is catalogued as 5329LN in the Monroe lever design.
