Accentra 6406LN Pacific Beach ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,676.00
$1,300.92

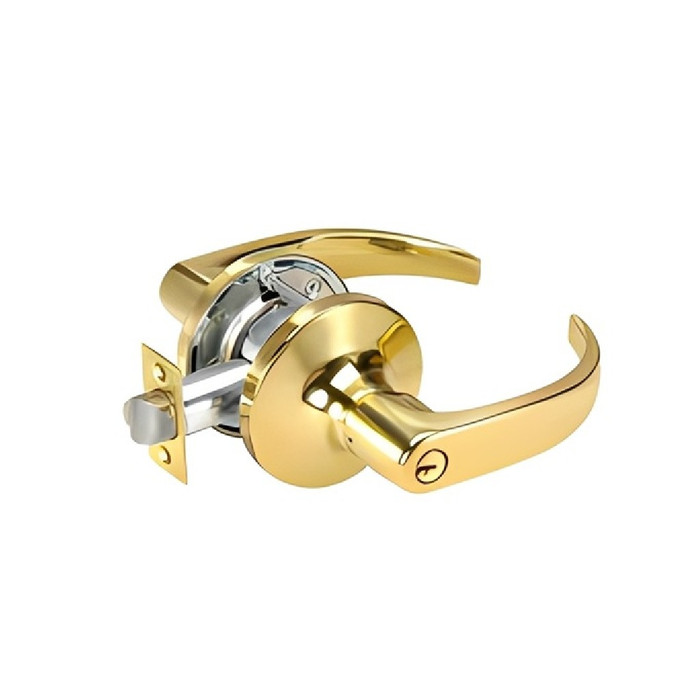

Yale Commercial Yale 6406LN Pacific Beach Heavy Duty Service Station Lever Lock YAL-PB6406LN

Accentra 6406LN Pacific Beach Heavy Duty Service Station Lever Lock with Monroe Lever Design

(No reviews yet) Write a Review

Model: YAL-PB-6406LN-626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,676.00
$1,300.92
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra 6406LN Pacific Beach Heavy Duty Service Station Lever Lock with Monroe Lever Design

Professional Grade 1 Cylindrical Lever Lock Solution

The Accentra 6406LN Pacific Beach lever lock delivers heavy-duty performance with Grade 1 certification for demanding commercial applications. This service station function lock features a robust 2-3/4" backset design with 1/2" stainless steel latchbolt throw and integrated guardbolt that deadlocks the latchbolt when the door is closed. Built on Yale's proven cylindrical lockset platform, this preassembled lock provides reliable security with UL-cUL fire rating up to 1-1/2 hours and ADA compliant operation.

Professional Features & Benefits

  • UL-cUL: UL-cUL fire-rated up to 1-1/2 hours
  • Mechanism: Heavy-gauge steel, zinc-plated, dichromated
  • Backset: 2-3/4"
  • Latchbolt: 1/2" stainless steel throw
  • Guardbolt: Deadlocks latchbolt when door is closed; standard on all locking functions
  • Door Thickness: 1-3/4" only
  • Lead Shielding: Available to order
  • Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order.
  • Reversibility: Handing must be specified for all functions and designs
  • Strikes: 1-1/4" lip ANSI strike supplied; other lip lengths and strikes available to order; all reversible
  • Finishes: Available in 626 finish only
  • Warranty: 7-year mechanical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Accentra Quality?

Accentra lever lock products deliver professional-grade reliability with heavy-gauge steel construction and Grade 1 certification for demanding commercial applications. The 7-year mechanical warranty and UL-cUL fire rating up to 1-1/2 hours demonstrate the manufacturer's commitment to quality and safety. Engineered for demanding commercial applications where dependable performance and code compliance are essential.

Product Specs

Series:
6400 Series
Subcategory:
Cylindrical
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Commercial/Residential:
Commercial
Handle Type:
Lever
Lock Function:
Service Station
Product Attribute:
Cylindrical Locks
Product Model:
YAL-6406LN
Product Function:
Service Station
Lever Design Name:
Monroe Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra YAL-PB-6406LN-626 – Frequently Asked Questions

1) What does the service station function on the Accentra 6406LN actually do?
Service station is a keyed function on a cylindrical lever lock, and the 6406LN is built as a single-cylinder keyed lockset with a guardbolt that deadlocks the latchbolt once the door is closed. The lever design is Monroe, and handing has to be specified when you order, so it is not a lock you can flip in the field.
2) Will the Accentra 6406LN fit a 1-3/8 inch door?
No. The 6406LN is a 1-3/4 inch door lock only, with no thickness range above or below that. For a thinner interior door you need a lockset that lists 1-3/8 inch, like the Dexter C1000 cylindrical locks at 1-3/8 to 1-3/4 inches, or the Falcon K101 at 1-3/8 to 2-1/4 inches.
3) What backset does the 6406LN Pacific Beach lever lock use, and will it work in a 2-3/8 inch prep?
It is a 2-3/4 inch backset lock. A door already bored on a 2-3/8 inch backset will not take it without re-prepping the cross bore, since 2-3/8 and 2-3/4 are the two standard commercial backsets and they are not interchangeable. If your prep is 2-3/8, the Cal-Royal AG00 entrance lever is built on that backset.
4) Will the 6406LN latch into an existing ANSI strike?
The latchbolt is stainless steel with a 1/2 inch throw, and a 1-1/4 inch lip ANSI strike ships with the lock. If your frame has a different lip length, other lips and strike styles can be ordered, and all of them are reversible.
5) Is the Accentra 6406LN fire rated for a labeled opening?
Yes, it carries a UL-cUL fire rating up to 1-1/2 hours and is Grade 1 certified, which is why it shows up on corridor and stair doors in schools, hospitals, and office buildings. Operation is ADA compliant.
6) What do I have to specify when ordering the 6406LN besides the finish?
Handing is the big one, since every function and design in this line is handed and there is no field reversal. Finish is not a decision here, 626 satin chrome is the only one offered. The cylinder comes as brass 6-pin keyed random with two keys; a 7-pin cylinder and lead shielding are both order options, as are alternate strike lips.
7) What Grade 1 lever lock should I use if the opening needs a storeroom function instead of service station?
The Accentra 6406LN Pacific Beach is a service station function lock, so the key stays retracted-latch behavior of a storeroom opening is a different spec. For a storeroom opening, the Hager 2580 with the Withnell lever is a Grade 2 cylindrical storeroom lock covering 1-3/8 inch to 2 inch doors, and the Cal-Royal AG05 is a Grade 2 storeroom leverset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors. Both are lever-operated cylindrical locks like the 6406LN but carry a Grade 2 rating rather than the 6406LN's Grade 1.
8) Is there a Grade 1 cylindrical lever lock that stays in the same duty class as the Accentra 6406LN but does not need a key?
Yes. The 6406LN Pacific Beach is a keyed, single-cylinder lock. If the door only needs latching with no keying, the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers, fire rated, for doors 1-3/8 inch to 2-1/4 inch, and the Falcon T101 is a Grade 1 heavy duty passage lever lock. Dexter's C1000 passage is also Grade 1, with clutching non-keyed levers for 1-3/8 inch to 1-3/4 inch doors. All three stay at Grade 1 like the 6406LN but drop the cylinder.
9) The Accentra 6406LN only fits 1-3/4 inch doors. What Grade 1 lever lock covers thicker doors?
The 6406LN Pacific Beach is built for 1-3/4 inch doors only. For openings above that, the Corbin Russwin CL3110 passage lock is Grade 1, fire rated, and rated for 1-3/4 inch to 2 inch doors, and the Corbin Russwin CL33903 electrified lever is Grade 1 across the same 1-3/4 inch to 2 inch range. The Falcon K101 Grade 1 passage lock goes from 1-3/8 inch to 2-1/4 inch. Note that these are passage or electrified functions rather than service station.
10) I need a classroom or classroom security lock instead of the Accentra 6406LN service station function. What should I order?
The 6406LN Pacific Beach is service station function only. For classroom openings, the Dexter C1000 classroom is a Grade 1 clutching keyed cylindrical lever lock for 1-3/8 inch to 1-3/4 inch doors, and the Dexter C1000 classroom security is the same Grade 1 platform in classroom security function. The Cal-Royal AG03 classroom lever is a Grade 2 lock with a 6-pin Schlage C keyway on a 2-3/4 inch backset, which matches the 6406LN's 2-3/4 inch backset prep.
11) Can I key the 6406LN into my building master system?
As shipped it is a brass 6-pin keyed-random cylinder with two keys, so out of the box it is not part of any existing system. A 7-pin cylinder is available to order if your facility standard runs 7-pin.
12) Is the 6406LN heavy duty enough for a high traffic commercial corridor?
It is a Grade 1 cylindrical lockset with a heavy-gauge steel mechanism, zinc plated and dichromated, and it comes preassembled. That is the top commercial grade under ANSI/BHMA, so it is spec'd for the kind of traffic you get in schools, healthcare, retail, and multi-tenant residential.
13) I need matching non-keyed levers for the closet and restroom doors on the same job. What pairs with a Grade 1 cylindrical lever lock?
The 6406LN itself is keyed single cylinder, so for the non-keyed openings you need separate functions. Grade 1 cylindrical options include the Falcon K101 passage, the Corbin Russwin CL3110 passage/closet, and the BEST 9K Series 1DT single dummy trim. Lever style and finish will not match the Monroe design, so if a uniform look matters across the openings, confirm the trim before you mix lines.
14) Can I use the 6406LN on an X-ray or radiology room door?
Lead shielding is available to order on this lockset, which is what a radiology or imaging room opening requires. It is not included on a standard order, so it has to be called out when the lock is specified.
15) What is a lighter-duty alternative to the Accentra 6406LN for lower-traffic commercial doors?
The 6406LN Pacific Beach is a Grade 1 commercial cylindrical leverset. Where the traffic does not call for Grade 1, the Falcon B511CP6D is a Grade 2 medium duty cylindrical lever with entry/office function, the Hager 2525 is a Grade 2 commercial cylindrical entry lock with a lever for 1-3/8 inch to 2 inch doors, and the Cal-Royal AG00 entrance lever uses a 6-pin Schlage C keyway with a 2-3/8 inch backset. The 6406LN itself uses a 2-3/4 inch backset, so a backset change on the door prep is the deciding detail against the AG00.
16) Which cylindrical levers look like substitutes for the Accentra 6406LN but will not work on a keyed opening?
Several lever locks resemble the 6406LN Pacific Beach but carry no cylinder at all. The BEST 9K Series 1DT and BEST 7KC Series 1DT are single dummy trims - fixed levers with no latch - as are the Baldwin Estate 5103 half dummy pairs and the Emtek Arts and Crafts and Cortina dummy pairs. The Arrow GL01 with the Sierra lever and the Bravura Atlanta, Orlando and Tampa leversets are non-keyed passage function. None of these will replace the 6406LN, which is a keyed single-cylinder service station lock.
17) Is there a keyless or electrified alternative to the Accentra 6406LN for a door I do not want to key?
The 6406LN Pacific Beach ships with a brass 6-pin keyed-random cylinder and two keys. If you want to move off mechanical keying, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for doors 1-3/16 inch to 2 inch, and the Lockey 1150 is a heavy duty mechanical keypad lever set for 1-1/8 inch to 2 inch doors. For access control, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever running 12VAC/DC on 1-3/4 inch to 2 inch doors.
18) The Accentra 6406LN has to be ordered handed. Which comparable levers are non-handed or reversible?
Handing must be specified for the 6406LN Pacific Beach in every function and design. If you would rather stock a non-handed lever, the Falcon K101 Grade 1 passage lock and the Falcon B101 Grade 2 passage lock both use non-handed levers, and the Kwikset 200DL Delta passage lever is reversible with an adjustable 6AL latch and RCS strike. Those are passage functions, so they apply where the opening does not need keying.
19) For a healthcare or institutional door, is the Accentra 6406LN the right pick or is there a better function?
The 6406LN Pacific Beach is a Grade 1 commercial service station lever lock with a guardbolt that deadlocks the latchbolt when the door is closed, suited to healthcare and institutional buildings. Where the opening calls for an asylum or utility function instead, the Dexter C1000 asylum (F87) is a Grade 1 cylindrical lock for 1-3/8 inch to 2 inch doors, and the Arrow MK33-BD-CS is a Grade 2 heavy duty asylum lock with a ball knob and a conventional Schlage C keyway cylinder. The Arrow uses a knob rather than a lever, which matters for ADA operation.
20) What finish does the 6406LN come in?
626 satin chrome, and that is the only finish this lock is built in. If the rest of your openings are in a brass or bronze tone, this one will not match, and you would be looking at a different line entirely.
