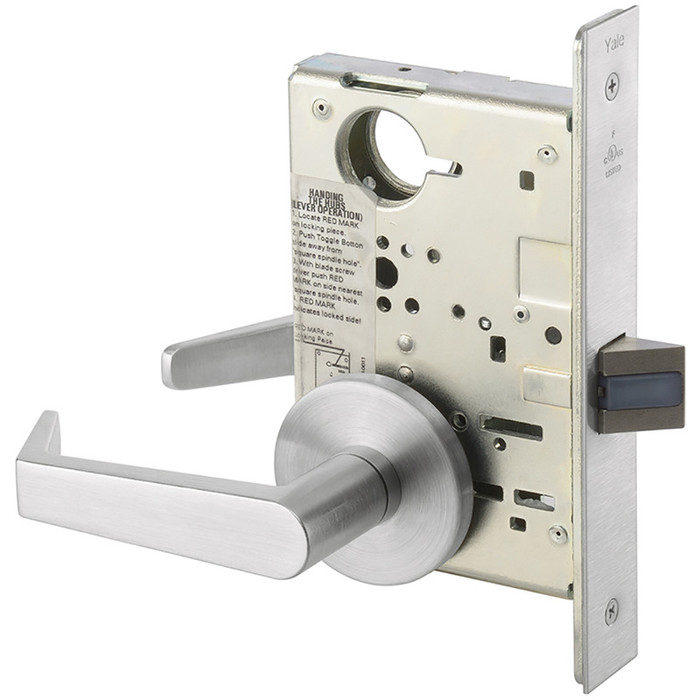

Yale 8800FL Series Mortise Locks
ASSA ABLOY ACCENTRA™ 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
FEATURES & BENEFITS
- Functions available for any industrial or commercial application
- Field adjustable handing
- Available in a variety of attractive trims and finishes
- Status indicator options available to provide peace of mind on the locked/unlocked status of a door
- Lever attached directly to escutcheon trim for added security (Specific to 8800 SL version)
- Thrubolted security head screws offer added protection (Specific to 8800 SL version)
- UL/cUL listed for 3-hour fire rated doors
- Heavy-duty escutcheon trim for resistance against damage and vandalism
- 10-year mechanical warranty
- Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1 (8800FL with CN escutcheon & SL8800 meet Security Grade 1).
SPECIFICATIONS
- Function Description: For doors that do not require locking, Latchbolt retracted by knob/lever either side at all times;
-
ANSI/BHMA Code: A156.13
-
ANSI/BHMA Series: Series 1000
-
Backset Depth (Standard): 2-3/4"
-
Cylinder Format: Conventional, Large Format, Small Format
-
Door Thickness (Standard): 1-3/4"
-
Handing: Field Reversible
-
Latchbolt Throw: 3/4"
-
Maximum Backset: 2-3/4"
-
Minimum Backset: 2-3/4"
-
Maximum Door Thickness: 3-1/4"
-
Minimum Door Thickness: 1-3/4"
-
Number of Keys: 2
-
Strike Type: Curved Lip
-
UL Listed: Yes
-
ULC Listed: Yes
-
Warranty: 10-year (Mechanical) / 2-year (Electrified) limited warranty
DOWNLOAD & RESOURCES
- Brand:
- Yale Commercial
- Series:
- 8779 Series
- Category:
- Mechanical Locks
- Subcategory:
- Lever Locksets
- Keyed Function:
- Non-Keyed
- Grade:
- Grade 1
- ANSI/BHMA:
- F75
- Model:
- 8801
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Mortise Locks and Trim
- Product Type:
- Leversets
- Keyed:
- No
- Commercial/Residential:
- Commercial
- Function:
- Passage/Hall/Closet
- Handle Type:
- Lever
- Lock Function:
- Passage
- Lever Design:
- Augusta Lever
