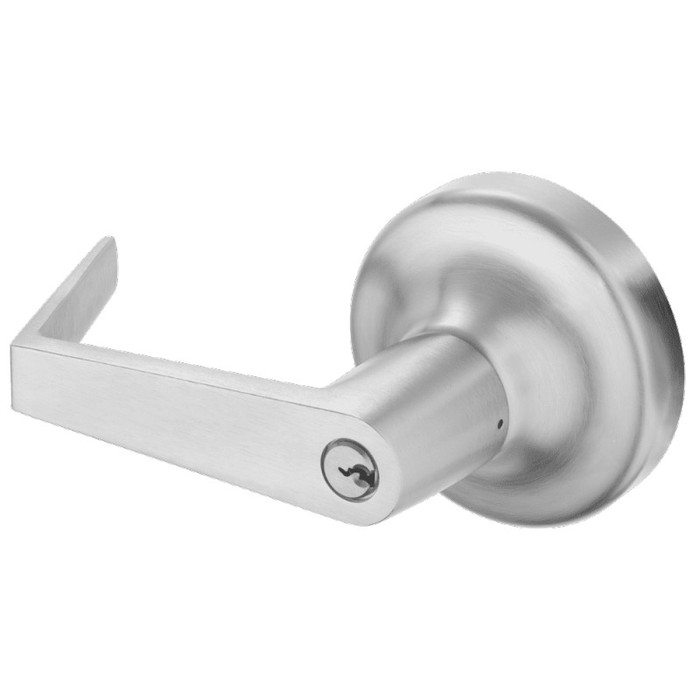

Yale AU546F Rose x Lever Trim, Classroom (08), Augusta Lever

Accentra AU546F Augusta Lever Rose Trim with Classroom Function for Exit Devices

(No reviews yet) Write a Review

Model: AU546F 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$733.59
$402.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Accentra AU546F Augusta Lever Rose Trim with Classroom Function for Exit Devices

Professional Grade 1 Lever Trim for Commercial Exit Device Applications

The Accentra AU546F features the Augusta lever design with classroom function (08) for use with 6100 and 7100 Series exit devices. This Grade 1 certified trim accommodates standard 1-3/4" doors and includes cylindrical type cylinders for immediate installation. The 540F rose design provides secure thru-bolt connection to exit devices for enhanced strength and reliability.

Professional Features & Benefits

  • Door Compatibility: Standard 1-3/4" (44mm) door thickness for typical commercial applications.
  • ANSI/BHMA Grade 1 Certification: Meets A156.3 standards for heavy-duty commercial use and durability.
  • Secure Thru-Bolt Connection: Trim thrubolts directly to exit device for maximum strength and tamper resistance.
  • Series Compatibility: Designed for use with 6100 and 7100 Series exit devices for versatile installation options.
  • Complete Cylinder Package: Accepts cylindrical type cylinders with cylinders included for ready installation.
  • Classroom Function Control: Cylinder controls lever operation for educational facility security requirements.
  • Augusta Lever Design: Professional lever styling appropriate for commercial and institutional environments.
  • Stock Door Application: 540F rose trim specifically designed for standard stock door preparations.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Handle Type: Lever
  • Keyed: Yes
  • Lever Design Name: Augusta Lever
  • Product Category: Mechanical Locks
  • Product Group: Mechanical Locks
  • Product Subgroup: Bored Locksets
  • Product Type: Leversets
  • Subcategory: Cylindrical

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Classrooms
  • Commercial Office Buildings
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities
  • Retail Establishments

Why Choose Accentra Quality?

Accentra lever trim products deliver professional-grade reliability with ANSI/BHMA Grade 1 certification for demanding commercial applications. The thru-bolt connection design and included cylindrical cylinders ensure secure, dependable performance where classroom security control is essential. Engineered for compatibility with 6100 and 7100 Series exit devices for versatile institutional and commercial installations.

Product Specs

Subcategory:
Cylindrical
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leverset
Keyed:
Yes
Commercial/Residential:
Commercial
Handle Type:
Lever
Lever Design Name:
Augusta Lever
Product Category:
Mechanical Locks
Department:
Door Hardware

Accentra AU546F 626 – Frequently Asked Questions

1) What does classroom function (08) lever trim actually do on the door?
Classroom function means the key controls the lever, not a pushbutton. The teacher keys the outside cylinder to lock or unlock the lever from the corridor side; there is no inside locking, so nobody can lock the room from within. Push the pad and you always get out. That is why the 08 function is the standard on corridor classroom doors.
2) Do I need to buy a cylinder separately for the AU546F classroom trim?
No. The Augusta lever trim takes a cylindrical type cylinder and ships with the cylinder included, so it is ready to install out of the box. What you still have to settle is keying, since the classroom function is only as useful as the key that runs it.
3) Is the Augusta lever trim rated for heavy traffic in a school?
It carries ANSI/BHMA Grade 1 certification to A156.3, the heavy duty commercial tier. That is the grade a school corridor or a hospital wing should be specified at, and it is a step above the Grade 2 leversets common in light commercial work.
4) Is there an equivalent lever trim from another brand for a pushpad exit device?
Corbin Russwin's 585F715 is the closest peer we carry: a Grade 1 lock lever trim for the ED8000 pushpad exit device, rated for 1-3/4 inch to 2 inch doors. Imperial USA's ED-EL500HD is a heavy duty escutcheon lever trim in the ED-500 Series, but that one is entry function rather than classroom. None of these cross-mount, so match the trim to the device family already on the door.
5) Rose trim or escutcheon trim on an exit device, which should I order?
The AU546F uses the 540F rose, a compact round trim sized for standard stock door preparation, so it drops onto the prep the device already needs. An escutcheon plate covers more of the door face and is the choice when you are hiding an older, larger prep or scarred paint from previous hardware. On a clean stock door, the rose is the simpler order.
6) Is the AU546F trim handed?
Order by finish alone. The Augusta lever rose trim is offered as a single classroom-function part in four finishes, and the mounting is a thru-bolt to the exit device chassis rather than a handed lock case. Get the device series and the finish right and the order is complete.
7) Is a dummy lever trim the same thing as the Accentra AU546F exit device trim?
No. Both are non-latching in the sense that neither carries the latch, but the AU546F operates the exit device it is thru-bolted to and is keyed with classroom function. A dummy trim operates nothing at all - it is a pull. The BEST 9K Series 1DT is a Grade 1 heavy duty non-keyed single dummy trim cylindrical lever, and the BEST 7KC Series 1DT is the Grade 2 medium duty equivalent. The Callan Bentley is a Grade 2 dummy lever. Specify a dummy only on an inactive leaf, never on a door that must latch or lock.
8) We need classroom security instead of standard classroom function on a bored door - what changes?
The Accentra AU546F carries classroom function (08), where the cylinder controls the lever and the outside is locked or unlocked from the key on the outside. On a bored opening with no exit device, the Dexter C1000 Series classroom security lever is a Grade 1 clutching keyed cylindrical lock with classroom security function for 1-3/8 inch to 1-3/4 inch doors, which puts key control on both sides of the door. The Dexter C1000 in standard classroom function is the same Grade 1 clutching platform and the same door range with the plain classroom function.
9) What is a Grade 1 lever option for a classroom door that does not need to be keyed?
The Accentra AU546F is keyed and carries classroom function, so the lever is controlled by a cylinder. Where a Grade 1 lever is wanted without keying, the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock with non-handed levers, fire rated, listed for 1-3/8 inch to 2-1/4 inch doors. The Falcon T101 is a Grade 1 heavy duty passage lever with pressure release technology in the T Series. The Corbin Russwin CL3110 is a Grade 1 vandal resistant passage/closet lever, fire rated, for 1-3/4 inch to 2 inch doors. None of these lock, so they suit the corridor or closet leaves rather than the secured classroom leaf.
10) Can a Grade 2 lever lock be used in place of the Accentra AU546F on a school corridor door?
The AU546F is ANSI/BHMA Grade 1 to A156.3 and is trim for an exit device, so a bored Grade 2 lockset is a different class of hardware and a different install. Grade 2 keyed cylindrical levers in the set include the Cal-Royal AG05, a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, the Hager 2580 Grade 2 storeroom lever with the Withnell lever for 1-3/8 inch to 2 inch doors, and the Falcon B511CP6D Grade 2 medium duty entry/office lever. These fit doors without exit devices and sit at Grade 2 rather than Grade 1, which matters where the specification calls out A156.3 Grade 1.
11) The door needs to release on a fire alarm or access control signal rather than a key - what lever handles that?
The Accentra AU546F is a mechanical trim whose cylinder controls the lever, with no electrical connection. For electrically controlled release, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever lock at 12VAC/DC for 1-3/4 inch to 2 inch doors, offered with the NZ lever and D rose in the CL33903 Series and in a keyed 12VAC/DC version in the CL33900 Series. Fail safe means the lever unlocks when power is removed, which is the behavior a fire alarm interface or card reader release relies on.
12) We are standardizing lever hardware across a campus - which options match the Accentra AU546F on grade for the bored openings?
The AU546F holds ANSI/BHMA Grade 1 certification to A156.3 for heavy duty commercial use. Grade 1 bored levers in the same range include the Dexter C1000 Series in classroom, classroom security, entry/office and asylum functions, with the asylum version listed for 1-3/8 inch to 2 inch doors and the keyed classroom and entry versions for 1-3/8 inch to 1-3/4 inch. Design Hardware X75 is a Grade 1 passage lever for 1-3/4 inch doors in the X Series. Corbin Russwin CL3110 is a Grade 1 fire rated passage/closet lever for 1-3/4 inch to 2 inch doors. That keeps a campus at one grade across exit device openings and bored openings alike.
13) What finishes does the Accentra AU546F Augusta lever come in?
Four: 626 satin chrome, 606 satin brass, 613E dark oxidized satin bronze equivalent, and 689 aluminum painted. 626 is the usual institutional match; 689 is the painted option most often used to blend with aluminum storefront and existing painted hardware.
14) Will the Augusta lever match the other levers in my building?
Augusta is the lever style, a commercial return lever profile carried across Accentra trim, so the same lever design can be repeated on other openings in the same finish. For fleet standardization the practical move is picking one finish, most often 626 satin chrome, and holding it across both exit device trim and the cylindrical locks on the interior doors.
15) Which lever is right for a door that must lock without a key at all, such as a keypad entry?
The Accentra AU546F is keyed, with the cylinder controlling the Augusta lever. Where credentials rather than keys are wanted, the Lockey 2835 is a mechanical pushbutton keyless lever lock with passage function and ADA compliance for 1 3/16 inch to 2 inch doors, and the 2835DC adds a double combination on the same door range. The Lockey 1150 is a heavy duty mechanical keypad lever set with double combination and passage function for 1-1/8 inch to 2 inch doors, with the 1150S offering an adjustable backset. The Delaney LP250 is a Grade 2 electronic keypad leverlock. These are complete locksets for a bored door, not exit device trim.
16) The Accentra AU546F comes in 626 satin chrome - what other levers offer a comparable commercial finish?
The Accentra AU546F Augusta lever trim is offered in 606 satin brass, 613E dark oxidized satin bronze equivalent, 626 satin chrome and 689 aluminum painted. Among the bored levers, the Hager 2580 with the Withnell lever is a Grade 2 storeroom lock in 26D, the satin chrome equivalent, and the Cal-Royal AG05 Grade 2 storeroom lever is likewise offered in 26D. The Bravura Miramar passage leverset is a Grade 2 lever in US4 satin brass. Matching a 626 or 26D across an existing opening keeps a corridor visually consistent.
