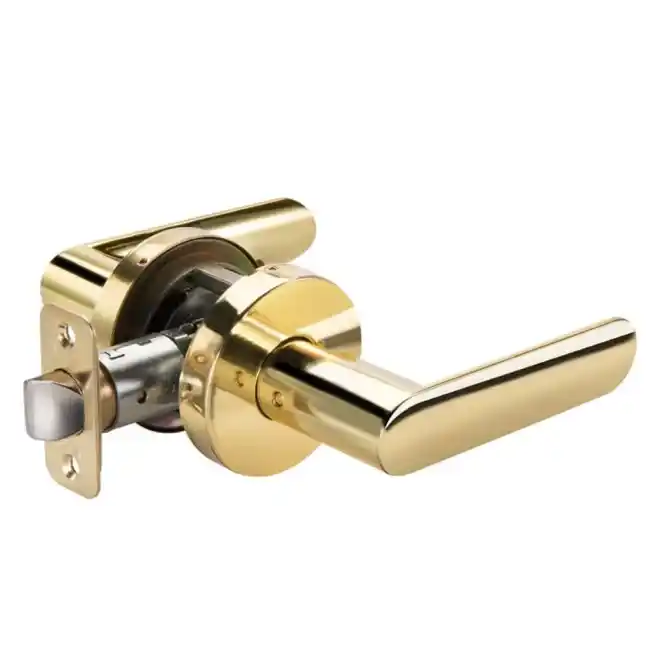

Yale YH Collection Kincaid Passage Door Lever

Yale YH Collection Kincaid Passage Door Lever

(No reviews yet) Write a Review

Model: YR11KC-626
From the Kincaid Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$78.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

YALE YH COLLECTION YR11KC KINCAID PASSAGE DOOR LEVER SET WITH FLAT ROUND ROSE OVERVIEW

Meet the Kincaid Lever from Yale's YH Collection. Solid, stylish hardware with concealed screws install with just one tool.

YH Collection levers offer a range of designs with sculptured roses and delicately crafted curves. The “non-handed” design and strength of the interior sub-assemblies allow for quick and easy installation and years of secure operation. All YH Collection products are ANSI Grade 2 superior light commercial quality.

PASSAGE FUNCTIONS

  • Ideal for closets, hallways or rooms where no locking mechanism is needed
  • Box Contents: 2x levers, 2x rose, interior chasis, strike plate, 4x screws, latch, exterior chasis

FEATURES & BENEFITS

  • Exceeds criteria for ANSI/BHMA A156.2 Grade 2 certification
  • Constructed from quality materials with a focus on durability
  • Easy Install Mounting System — Square Spindle Simplifies Installation - Knobs, Levers
  • Pre-Installed Mounting Screws
  • scratch free installation, easy re-keying
  • Concealed screws on double cylinder deadbolt – enhances style
  • Square spindle – easy alignment of lockset during installation, easier to operate
  • Concealed Mounting Screws — Clean Upgraded Look
  • Provide easy re-keying
  • Reduces wear and provides smooth operation
  • Limited Lifetime Mechanical and Finish Warranty

DOWNLOADS

Manufacturer Resources

Product Specs

Series:
YH Collection
Collection:
Kincaid
Features:
Concealed Screws
Edge Bore:
1"
Warranty:
Limited Lifetime Mechanical
Keyed Function:
Non-Keyed
Subcategory:
Residential Door Levers
Cross Bore:
2-1/8"
Keyed:
No
Commercial/Residential:
Residential
Product Type:
Residential Door Levers
Handle Type:
Lever
Lock Function:
Passage
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Grade:
Grade 2
Product Attribute:
Cylindrical Locks
Product Function:
Passage/Hall/Closet
Door Thickness Range:
1-3/8" to 1-3/4"
Product Design:
Flat Round
Mounting Method:
Surface
Product Category:
Mechanical Locks
Product Substrate:
Metal
Department:
Door Hardware

Yale Residential YR11KC-626 – Frequently Asked Questions

1) Will the Yale Kincaid passage lever fit a 1-3/8 inch interior door?
Yes. The Kincaid lever from Yale's YH Collection covers a door thickness range of 1-3/8 to 1-3/4 inches, so it works on both older 1-3/8 inch interior doors and standard 1-3/4 inch doors without any extra kit. That range covers most residential passage openings, closets and hall doors.
2) Does the Kincaid passage lever drop into an existing 2-1/8 inch bore?
It does. The Kincaid passage set uses a 2-1/8 inch cross bore and a 1 inch edge bore, which is the standard residential bored-lockset prep. If you are pulling an old knob or lever off a door already drilled that way, no new drilling is needed.
3) Does the Yale Kincaid lever need to be ordered left hand or right hand?
No handing to specify. The YH Collection levers are non-handed, so one part number works on a door swinging either way. Order by finish only.
4) Does the Kincaid passage lever lock?
It doesn't, and that is the point of it. Passage function means both levers always turn and the latch just holds the door closed. There is no key and no thumbturn. Use it on closets, hallways and rooms that never need to be secured; if you need privacy on a bath or bedroom, or a keyed entry, you need a different function in the same Kincaid style.
5) Is the Yale YH Collection Kincaid lever rated for light commercial use?
It carries ANSI/BHMA A156.2 Grade 2. Yale catalogs the YH Collection as residential hardware, and Grade 2 is the light commercial tier, which is why it holds up in apartment interiors, offices and hospitality corridors rather than just single-family homes. For a high-traffic commercial entrance you would step up to Grade 1.
6) Are the screws visible on the Kincaid lever once it's installed?
No. The Kincaid uses concealed screws behind a flat round rose, so the finished face is clean with no exposed fasteners. It installs with one tool, and a square spindle keeps the two halves aligned while you set it.
7) Can I standardize a whole building on Kincaid levers across passage, privacy and entry doors?
The Kincaid trim style runs across the YH Collection, so the passage set here matches the look of other Kincaid functions on the same floor. What this particular set gives you is the non-keyed passage function with a flat round rose. Match on finish code (605, 619, 626, 10BP or BSP) to keep every opening consistent.
