Yale YRM276 Assure Lock for An...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$935.00
$598.71
Yale Residential Yale Residential YRM276 Assure Lock for Andersen Patio Doors - Key Free Touchscreen Deadbolt YRM276

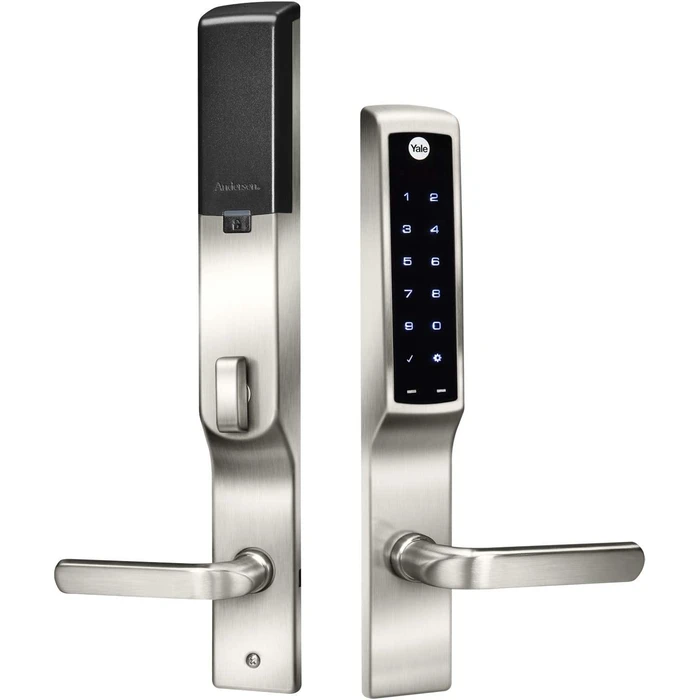

Yale YRM276 Assure Lock for Andersen Patio Doors - Key Free Touchscreen Deadbolt

(No reviews yet) Write a Review

Model: YRM276NR-619
From the Lock for Andersen Patio Doors Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$935.00
$598.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Yale Assure Lock for Anderson Patio Doors

The Yale Lock for Andersen doors features a sleek design and allows you to monitor, lock and unlock your door from anywhere so you never have to worry about carrying or losing keys again. This lock is compatible with the A-Series Hinged Patio Doors, E-Series Patio Doors (March 2018 and newer), Entry Doors and Folding Patio Doors.

The Yale Assure Lock for Andersen Patio Doors is designed with built-in Wi-Fi and Bluetooth technology, allowing integration into your smart home network. Included is the Yale Connect Bridge, which enables voice assistant and "Works with" ability, integrating into home automation and security systems including Alarm.com (coming soon), Airbnb, Amazon Alexa, Apple HomeKit, Google Assistant, Honeywell, IFTTT, Nexia, and more.

FEATURES & BENEFITS

  • One Touch Locking - Lock up without the hassle of keys by simply tapping the keypad
  • Key Free - No cylinder means no lost keys and no pick and bump break ins
  • Battery Back-Up - Never lose power, this lock can be energized with a 9V battery
  • Sleek, modern design available in a variety of finishes
  • Remote Access - monitor, lock and unlock from anywhere with Wi-Fi and Bluetooth via the Yale Access App or via your Z-wave compatible app
  • Advanced DIY Installation - Contact a local professional for questions with lock installation
  • Passive Right Yale® Assure Lock® lever sold separately
  • Sleek key-free, smart patio door lock eliminates risk of lock picking/bumping
  • Lock/unlock via Wi-Fi/Bluetooth (Yale Access App) or numbered access code (lock with a tap)
  • Illuminated touchscreen keypad for nighttime code entry
  • Give unique codes to friends and family
  • Remove individual codes whenever you need to
  • Easy to install, battery-powered with optional backup
  • Voice assistance guides you through programming
  • Weather-resistant keypad numbers won't wear off
  • ANSI/BHMA Grade 2 for strong, reliable security

DOWNLOADS

Unlock with Yale Access Mobile App

The Yale Access mobile app transforms your smartphone into a key, allowing you to unlock your door as you approach it just by having your phone in your pocket. You'll also be able to program your door to lock automatically when someone closes the door (after a set period of time).

The Yale Access mobile app lets you check your lock's status any time and it will send you alerts whenever the status of your smart lock changes.

Traditional Operation Ensures Backup Access

Besides using the Yale Access mobile app, you can lock/unlock the door in other ways. Simply input your 4-8 digit code into the keypad or turn the indoor thumbturn.

Open Doors with Autoslide AutoSwing After Unlocking

Through the Yale Access app, this Yale Smart Lock is designed to work in conjunction with Autoslide’s AutoSwing Automatic Door Operator, allowing users to easily unlock and enter or exit and secure their homes. Once the Yale Lock and Autoslide AutoSwing are connected to your Internet network and paired together, the AutoSwing will automatically open the door when the Yale lock is unlocked to enable hands free operation of your front door. You can control both devices from either the Yale Access app or Autoslide app from anywhere, plus share access with others, and check on device status and usage history.

Installation Details

This lock is specifically designed for use with Anderson products including A-Series Hinged Patio Doors, E-Series Patio Doors (March 2018 and newer), Entry Doors and Folding Patio Doors. All the necessary hardware (latch, strike, screws, etc.) is included, along with a template for door preparation and detailed instructions.

The lock is primarily powered by four (4) AA batteries, which are included and should last for about one year. You may additionally install a 9-volt battery (not included) for backup power.

Programming is accomplished either at the lock via the touchscreen, or through the Yale Access App. This touchscreen model provides voice-assisted programming to help you through the setup process. Voice assistance is available in three languages (English, Spanish, French) and has adjustable volume.

Manufacturer Resources

Product Specs

Collection:
Lock for Andersen Patio Doors
Warranty:
Limited Lifetime Finish and Mechanical
Subcategory:
Electronic Keypad Lock
Commercial/Residential:
Residential
Electronic:
Yes
Product Group:
Mechanical Locks
Product Subgroup:
Electronic Keypad Locks
Product Type:
Deadbolts
Reader Type:
Touchscreen
Product Attribute:
Electronic Locks
Tags:
andersen yale lock, andersen yale assure lock
Product Function:
Wi-Fi and Bluetooth
Product Category:
Electronic Locks
Product Substrate:
Metal
Department:
Door Hardware

Yale Residential YRM276NR-619 – Frequently Asked Questions

1) Will the Yale YRM276 Assure Lock fit my Andersen patio door?
The YRM276 is built specifically for Andersen openings: A-Series Hinged Patio Doors, E-Series Patio Doors made March 2018 or newer, Entry Doors, and Folding Patio Doors. An older E-Series door built before March 2018 is outside that list. It is not a general-purpose deadbolt for a standard wood or steel door, so if the opening is anything other than one of those Andersen products, look at a conventional tubular deadbolt instead.
2) Does the Yale Andersen patio lock come with a handle, or do I need to buy the lever separately?
The lever is a separate purchase. The YRM276 ships as the key-free touchscreen deadbolt with its latch, strike, screws, and a door prep template; the Passive Right Yale Assure Lock lever that pairs with it is sold on its own. Order both if the door needs a pull as well as the deadbolt.
3) What's the difference between the Wi-Fi, Z-Wave, and standalone versions of the Yale YRM276?
Three technology builds are offered. CBA is Wi-Fi and Bluetooth, and includes the Yale Connect Bridge for remote lock, unlock, and status from the Yale Access app plus voice and "Works with" integrations. ZW2 is Z-Wave, which talks to a Z-Wave hub or panel rather than direct to your router. NR has no module at all: keypad and thumbturn only, no app, no remote access. Pick NR if the door just needs codes, ZW2 if you already run a Z-Wave system, CBA if you want the phone and voice control out of the box.
4) Is there a key override on the Yale Assure Lock for Andersen doors if the batteries die?
No key, and no keyway at all. The YRM276 is a key-free deadbolt, which is the point of it, since there is no cylinder to pick or bump. Backup access is covered a different way: four AA batteries run it for roughly a year, and you can add a 9-volt battery (not included) as backup power. Inside, the thumbturn always works. If your tenants or crew need a mechanical key override on an electronic deadbolt, the Codelocks CL200 surface deadbolt is a key-override design instead.
5) What is the closest keypad deadbolt to the Yale YRM276 for a standard entry door that is not an Andersen patio door?
The YRM276 Assure Lock is built specifically for Andersen A-Series hinged patio doors, E-Series patio doors from March 2018 and newer, entry doors and folding patio doors, so it is not the part to order for a generic bored-door opening. For a keypad deadbolt on an ordinary door, the Delaney KP400 is a Grade 2 electronic deadbolt with a programmable remote. It covers the same job of code entry without a key while fitting a conventional deadbolt prep rather than the Andersen door prep.
6) What electronic deadbolt should a property manager use instead of the Yale Assure when the door is metal or the prep will not take a bored deadbolt?
The Yale Assure YRM276 is a touchscreen keypad deadbolt that installs into the Andersen door prep with the included latch, strike, screws and template. Where that prep does not exist, the Codelocks CL2200 is an electronic surface deadbolt in the CL2000 series, rated medium duty and finished in brushed steel, and it mounts to the face of the door instead. The Codelocks CL2210 is the mortise electronic deadbolt in the same family for doors that carry a mortise pocket.
7) Is there a keypad lock with a key override to use in place of the key free Yale YRM276?
The YRM276 is key free with no cylinder, so there is no mechanical key to fall back on; backup access is by code, thumbturn or the app. If a mechanical override is required, the Codelocks CL200 is a surface deadbolt with key override, light duty, in the CL200 series. That gives a code-entry deadbolt where a master key or a lockout key is part of the operating plan.
8) What is the equivalent of the Yale Assure YRM276 for a hotel or multifamily property running credentials instead of codes?
The YRM276 unlocks by touchscreen code, thumbturn, or the Yale Access app over Wi-Fi and Bluetooth. For RFID credentials, the Dormakaba Saffire LX-D is an RFID electronic deadbolt in the Saffire series with BLE and electronic lock override, and the Dormakaba Nova-D is an RFID multihousing smart electronic deadbolt in the Nova series. Both read a card or fob at the door rather than relying on a keypad code per user.
9) What deadbolt should be used instead of the Yale YRM276 on a fire rated door?
The YRM276 is a residential electronic deadbolt for Andersen doors. Where a fire rating is required at the opening, the Hager 3115 is a Grade 2 cylinder x thumbturn deadbolt with a Schlage C keyway, fire rated, for 1-3/8 inch to 1-3/4 inch doors, and the Hager 3118 is the Grade 1 classroom deadbolt with a Schlage C keyway and 6-pin cylinder, also fire rated over the same door thickness range. The Cal-Royal CRB800 is a Grade 1 heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch.
10) For a facility standardizing on keyed hardware, what deadbolt takes an interchangeable core in place of the key free Yale YRM276?
The YRM276 has no cylinder at all, so it does not enter a keying schedule. Where the deadbolt has to accept the facility core, the Arrow E61 is a Grade 2 single cylinder deadlock with SFIC prep less core for 1-3/8 inch to 1-3/4 inch doors, the Deltana CL200LAIC is a Grade 2 single deadbolt with interchangeable core and a 2-3/4 inch backset, and the Delaney LM Series 301702 is a Grade 1 single cylinder less core deadbolt in dull chrome US26D.
11) What ANSI/BHMA grade is the Yale YRM276 Assure Lock?
ANSI/BHMA Grade 2. On the residential scale that is the mid tier, above the Grade 3 builder-level bolts and below Grade 1 heavy commercial. It matches the grade on common commercial-residential deadbolts like the Arrow DBX61 and the Bravura 310B Elite. For an entrance that has to hold up to institutional traffic, a Grade 1 unit such as the Dexter DB1000 single cylinder is the step up, though it is a keyed mechanical bolt rather than a keypad lock.
12) Can I use the Yale Andersen lock in a rental or short-term rental where guests change often?
Codes are the whole access model here, and they are managed individually. Each guest or contractor gets their own 4 to 8 digit code, and you delete a single code without touching the others. With the CBA Wi-Fi build the Yale Access app lets you do that remotely and sends an alert whenever lock status changes, and the Connect Bridge covers Airbnb, Amazon Alexa, Apple HomeKit, Google Assistant, Honeywell, IFTTT, and Nexia. Auto-lock after a set delay once the door closes means a guest who leaves it unlatched doesn't leave the unit open.
13) Can an electronic keypad deadbolt be installed on a patio door without a smart hub?
Yes, if you order the right build. The NR standalone version of the Yale YRM276 runs entirely at the door: enter a 4 to 8 digit code on the illuminated touchscreen or use the interior thumbturn, with voice-guided programming at the keypad in English, Spanish, or French. No hub, no network, no app account. If you later want remote control, that means moving to the CBA Wi-Fi build or the ZW2 Z-Wave build rather than adding a module to the NR.
14) The Yale YRM276 is ANSI/BHMA Grade 2 - what Grade 1 deadbolt should be specified where the job calls for a higher grade?
The YRM276 carries ANSI/BHMA Grade 2. Where the drawing calls for Grade 1, the Dexter DB1000 single cylinder is Grade 1 for 1-3/8 inch to 1-7/8 inch doors, and the Design Hardware D1 Series double cylinder is Grade 1, extra heavy duty, for 1-3/4 inch doors. Both are keyed mechanical deadbolts, so the code entry and remote operation of the Yale do not carry over.
15) What is the mechanical deadbolt to order alongside or in place of the Yale YRM276 on the rest of the doors at a property?
The YRM276 is an electronic touchscreen deadbolt for Andersen doors. On the remaining conventional doors, a Grade 2 keyed deadbolt covers the same function without electronics: the Dexter DB2000 single cylinder is Grade 2 cylinder x thumbturn for 1-3/8 inch to 1-3/4 inch doors, and the Cal-Royal CB160 is a Grade 2 single cylinder deadbolt with a tamper-resistant cylinder guard. These match the Yale on ANSI grade while operating by key and turn.
16) Which deadbolts look like alternatives to the Yale Assure YRM276 but will not do the same job?
Several deadbolts sit next to the YRM276 without substituting for it. The DynaLock 1300 Series is a heavy duty mortise electric deadbolt - it is electrically released by an access control system, not by a code at the door, so there is no keypad or app. The Codelocks CL160 is a mortise latch with QuickCode function, light duty, which is a latch rather than a deadbolt throw. The Baldwin Reserve 8BR0618001 is a deadbolt spacer, a fitting part and not a lock. And the Arrow 460 is a mortise lock strike with latchbolt and deadbolt functions for 1-3/4 inch doors, the strike side only.
17) What is a simpler alternative to the Yale YRM276 for a patio or exit door that only needs to lock from the inside?
The YRM276 is a key free deadbolt operated by touchscreen code, thumbturn or app. If the opening only needs to be secured from the inside, the Arrow E60 is a Grade 2 exit deadlock, non-keyed, blank plate by thumbturn, for 1-3/8 inch to 1-3/4 inch doors. The Callan 205S is a Grade 3 one-sided half-bore deadbolt, which takes a shallower prep. Neither offers code entry or remote operation.
18) What takes the place of the Yale YRM276 on a glass or narrow stile door where a bored deadbolt will not fit?
The YRM276 needs the Andersen door prep with its included latch and strike. On an opening that will not take that prep, the Emtek 2050 is a European mortise deadbolt with an integrated roller latch in square trim, and the Emtek 2051 is the same lock in round trim - both cylinder x thumbturn, mortised into the stile. The Detex DX Series is a hinge side locking deadbolt with multi-point security for openings secured away from the lock edge.
19) What deadbolt handles a thicker door than the Yale YRM276 and the common residential range?
Most residential deadbolts stop around 1-3/4 inch. Where the door is heavier, the Corbin Russwin DL3011 is a Grade 1 cylindrical deadlock, cylinder x blank, covering 1-3/4 inch to 2-1/4 inch, and the Deltana 7312KA2 is a Grade 3 double cylinder deadbolt covering 1-3/8 inch to 2 inch. Both are keyed mechanical locks rather than keypad entry.
20) Will the Yale YRM276 work with an automatic door opener?
It pairs with Autoslide's AutoSwing Automatic Door Operator through the Yale Access app. Once both are on the same network and paired, the AutoSwing opens the door automatically when the Yale lock unlocks, and either app can drive both devices, share access, and show usage history. This is the setup for hands-free entry on an accessible opening.
21) How does the touchscreen hold up outdoors on a patio door?
The keypad is weather-resistant and the numbers won't wear off, which matters on a patio door where the exterior face takes sun and rain year round. The touchscreen is illuminated for entering a code after dark, and the lock body is metal.
22) The Yale YRM276 comes in satin nickel, black and white - what deadbolt matches a decorative or traditional door instead?
The YRM276 is offered in 619 satin nickel, BLK black and WHT white with a flat touchscreen face. Where the door calls for decorative trim, the Emtek #11 Tuscany is a lost wax cast bronze deadbolt, cylinder x thumbturn, and the Baldwin Estates 8011 is a contemporary 1-5/8 inch double cylinder deadbolt in the Estate series. The Bravura 310B Elite is a Grade 2 traditional round deadbolt, cylinder x thumbturn.
