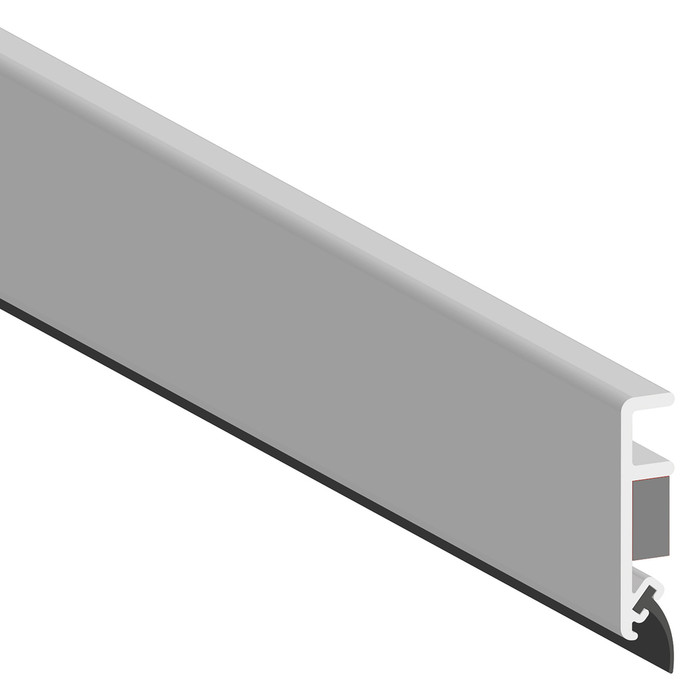

Zero 383FS Perimeter Seal with Intumet and Neoprene

Zero International 383FS Meeting Stile Door Gasket Astragal, 83" Fire-Rated with Smoke Seal

(No reviews yet) Write a Review

Model: 383FS-AA 83
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$185.02
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Zero International 383FS Meeting Stile Door Gasket Astragal, 83" Fire-Rated

The Zero International 383FS Meeting Stile Door Gasket is a surface-mount astragal engineered to deliver superior perimeter sealing performance for commercial door openings measuring 83". Featuring an Intumet and self-extinguishing solid neoprene insert, this adjustable sealing system is designed for sound control applications while meeting fire-rated UL10c and smoke seal standards. This meeting stile solution is ideal for facilities requiring both acoustic control and life-safety compliance at paired door openings.

Key Features

  • Length: Manufactured for 83" door openings, providing a precise fit for meeting stile applications.
  • Astragal Design: Surface-mount astragal construction allows for straightforward application at the meeting stile of paired door openings.
  • Intumescent Core: Incorporates an Intumet insert that expands under heat exposure to help block the passage of smoke and flame at the door opening.
  • Self-Extinguishing Neoprene: Solid neoprene insert is self-extinguishing, adding an additional layer of fire safety performance to the seal.
  • Sound Control Performance: Adjustable sealing system is ideal for sound control solutions, helping to reduce noise transfer through door assemblies.
  • Surface Mount Installation: Designed for surface mounting, simplifying installation onto existing door and frame assemblies.
  • Fire-Rated Construction: Fire-rated to UL10c standards for use in applications requiring fire-rated door assemblies.
  • Smoke Seal Rated: Certified as smoke seal rated to help restrict smoke migration through door perimeters.

Certifications & Compliance

  • Fire-Rated UL10c
  • Smoke Seal Rated

Technical Specifications

  • PDF:Zero Full Line Catalog: https://zensupply.com/content/pdf/zero-international/zero-full-line-catalog.pdf

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Zero International 383FS?

Zero International perimeter seals combine fire-rated UL10c construction with smoke seal certification for demanding commercial door assemblies. The self-extinguishing neoprene insert and Intumet core deliver dependable life-safety performance, while the adjustable sealing system ensures effective sound control across diverse commercial applications. Facility managers and specifiers can rely on this meeting stile astragal for consistent, code-compliant perimeter sealing performance at 83" door openings.

Manufacturer Resources

Zero Full Line Catalog

Product Specs

Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Meeting Stiles
Department:
Door Hardware

Zero International 383FS-AA 83 – Frequently Asked Questions

1) What is an astragal like the Zero 383FS actually for on a pair of doors?
It seals the vertical gap where two doors meet. The 383FS is a surface-mounted meeting stile seal for paired openings, so it mounts on the face of one leaf and closes the crack against the other. That gap is the one a door sweep and head/jamb gasketing never touch, and on a fire-rated pair it is where smoke moves first. Use it where you have a pair with no center mullion and need the meeting edge sealed for smoke and for sound.
2) Is the Zero 383FS astragal fire rated, and is it smoke rated too?
Both. The 383FS is fire rated to UL10c and is smoke seal rated. That combination is what a healthcare or education facility needs at a rated pair: the UL10c rating covers it for use in fire-rated door assemblies, and the smoke seal rating covers smoke migration through the door perimeter.
3) Will the Zero 383FS fit my doors, or do I need to cut it?
It comes in one length, 83 inches, for 83 inch door openings. Standard commercial door leaves are 84 inches, so an 83 inch seal is the normal stock length for a full-height opening. If your doors are taller than that, this piece will not cover the full meeting edge and you want a longer meeting stile instead.
4) Can the Zero 383FS be added to doors that are already hung?
Yes. It is a surface mount astragal, so it screws to the face of the existing door leaf. No mortising, no routing, and no removing the door from the frame. That is the practical difference between this and a mortised or overlapping-edge astragal, which needs door prep and usually a shop.
5) What makes the 383FS work in a fire assembly and not just a plain weatherstrip?
Two things in the seal itself. There is an Intumet insert that expands under heat to block smoke and flame at the opening, and the solid neoprene insert is self-extinguishing rather than ordinary rubber. A standard neoprene or vinyl meeting stile has neither, which is why it cannot go on a rated pair.
6) Will the Zero 383FS help with noise between rooms?
That is one of its jobs. The solid neoprene insert and the adjustable seal are meant for sound control, closing the meeting-stile gap that leaks the most noise on a pair of doors. Worth knowing that a meeting stile alone does not make an acoustic opening, you still need the head, jambs and bottom sealed to get a real reduction.
7) What finish does the Zero 383FS meeting stile come in?
Clear anodized aluminum, one finish. It reads as a plain silver strip down the meeting edge, which sits fine against aluminum storefront and most painted hollow metal. If you need it to disappear against a dark or bronze door, this is not the piece.
8) Is the Zero 383FS suitable for a commercial building or is it a residential product?
Commercial. It is specified for commercial door openings, and the applications it is built for are offices, schools, hospitals, retail, warehouse, multi-tenant residential and government buildings. In a multi-family building it belongs on the rated corridor and stair pairs, not on unit entry doors, which are single leaves and take perimeter gasketing instead.
