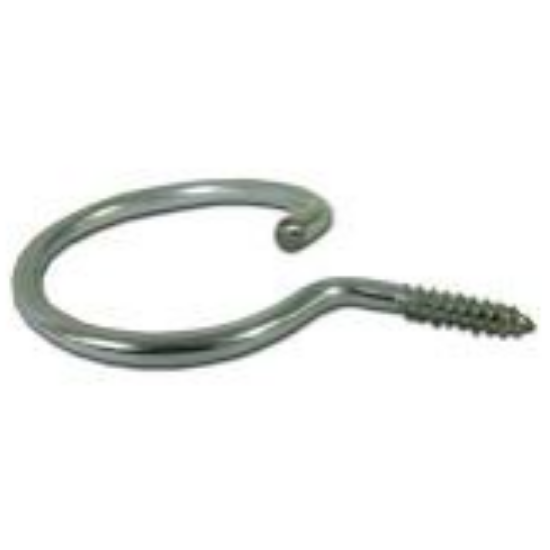

Minerallac 1-1/2" Diameter Steel Bridle Ring with 1/4" Lag Thread - Zinc Plated Wire Cable Support
Professional Low-Voltage Cable Support Solution
The Minerallac 1-1/2" diameter steel bridle ring delivers reliable support for low-voltage datacom cable installations with professional-grade construction. Featuring zinc plated steel construction with wire formed design and 1/4" lag thread mounting, this bridle ring provides secure cable management for wood mounting applications with 50-load capacity and 0.162" thickness for dependable performance.
Professional Features & Benefits
- 1-1/2" Ring Diameter: Provides optimal cable clearance and support for low-voltage datacom applications
- Steel Construction with Zinc Plating: Delivers corrosion resistance and long-lasting durability in various environmental conditions
- Wire Formed Design: Ensures consistent strength and reliable cable support through professional manufacturing process
- 1/4" Lag Thread: Provides secure wood mounting with professional-grade thread impression for reliable installation
- 50-Load Capacity: Supports substantial cable loads while maintaining structural integrity and performance
- 0.162" Thickness: Engineered thickness provides optimal strength-to-weight ratio for professional installations
Technical Specifications
- Construction: Wire Formed
- Country Of Origin: United States
- Load: 50
- Product Finish: Zinc Plated
- Product Material: Steel
- Product Size: (Ring Diameter) 1-1/2
- Product Type: Bridle Ring
- Thickness: 0.162
- Thread Impression: (Wood Screw) 1/4" Lag Thread
Professional Applications
- Low-Voltage Datacom Cable Support Systems
- Commercial Building Cable Management
- Residential Network Infrastructure
- Professional Office Cable Routing
- Telecommunications Equipment Installations
- Data Center Cable Organization
- Industrial Communication Systems
Why Choose Minerallac Quality?
Minerallac delivers professional-grade cable support solutions with zinc plated steel construction and wire formed manufacturing for reliable performance. Made in the United States with engineered specifications including 50-load capacity and precise 0.162" thickness, this bridle ring provides the durability and dependability professionals demand for critical low-voltage cable installations.
Manufacturer Resources
Product Specs
- Construction:
- Wire Formed
- Country Of Origin:
- United States
- Load:
- 50
- Product Finish:
- Zinc Plated
- Product Material:
- Steel
- Product Size:
- (Ring Diameter) 1-1/2
- Product Type:
- Bridle Ring
- Thickness:
- 0.162
- Thread Impression:
- (Wood Screw) 1/4" Lag Thread
- Department:
- Electrical
- Product Subgroup:
- Conduit Hangers & Straps
Minerallac 646RW – Frequently Asked Questions
1) Will the Minerallac 646RW bridle ring mount into a wood stud or joist without an anchor?
Yes. The 646RW is the wood-mount version: it has a 1/4 inch lag thread on the stem, so it drives straight into a wood stud, joist, or blocking with no anchor or insert. Pre-drill a pilot hole sized for a 1/4 inch lag and drive it in with a nut driver or wrench on the stem. If you are fastening into steel, concrete, or into threaded rod, this is the wrong version - you want a bridle ring with a machine-thread or self-drilling stem instead.
2) How many data cables fit through a 1-1/2 inch bridle ring?
The ring opening on the 646RW measures 1-1/2 inches in diameter, which is the mid-size choice for low-voltage datacom runs. Use it for a modest bundle of Cat5e/Cat6 or coax on a branch run. Keep the bundle loose in the ring rather than packed tight so the jackets are not deformed, and step up to a larger ring diameter on backbone runs where the bundle grows.
3) Is a zinc plated steel bridle ring OK for a damp or unconditioned space?
The 646RW is steel with a zinc plated finish, which gives corrosion resistance for normal indoor and unconditioned interior spaces such as ceiling plenums, attics, and back-of-house areas. Zinc plating is a light protective coating, not a marine or exterior-grade treatment, so for wet, washdown, or coastal exterior work choose a stainless or hot-dip galvanized support instead.
4) What is the load rating on the Minerallac 646RW bridle ring?
It carries a 50 load rating, with wire formed steel construction at 0.162 inch material thickness. That is sized for low-voltage communications bundles. Bridle rings are cable supports, not structural hangers, so do not use one to carry conduit, strut, or anything the ring was not intended to hold, and spread supports along the run rather than concentrating weight on a single ring.
5) Can I use bridle rings instead of J-hooks for a data cable run?
A bridle ring like the 646RW is a closed loop, so cable has to be pulled through it - good for a finished run you want fully captured, and for light branch drops off a main pathway. A J-hook is open on top, which lets you lay cable in from above and add to the bundle later without re-pulling. Choose the ring where the bundle is set and you want it contained, and the hook where the run will grow. The 646RW's 1-1/2 inch ring and 1/4 inch lag stem make it a wood-structure solution specifically.
6) Is the Minerallac 646RW made in the USA?
Yes, the 646RW bridle ring is manufactured in the United States. That matters on public and institutional work where domestic-sourcing language shows up in the specification, so it is worth noting on the submittal.
