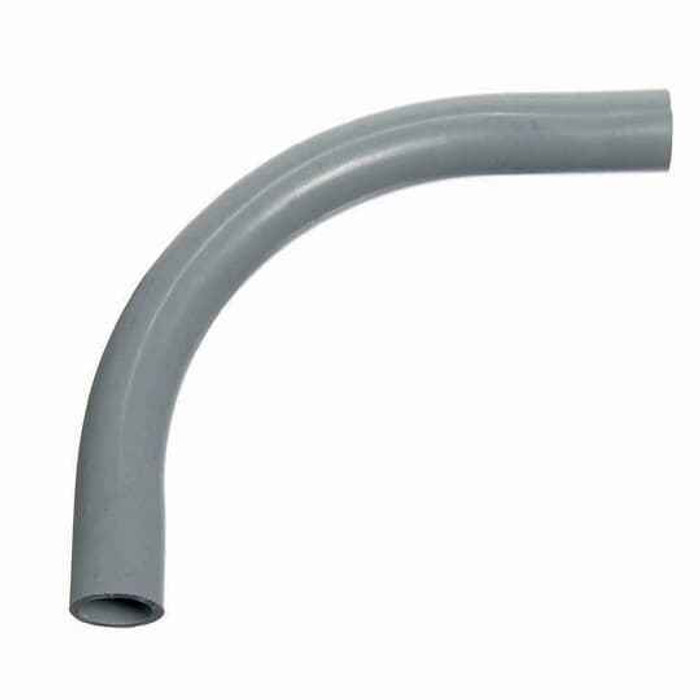

Carlon 1-1/2 Inch Gray PVC Schedule 40 Standard 90 Degree Elbow
Professional-Grade Non-Metallic Conduit Fitting
The Carlon 1-1/2 Inch Gray PVC Schedule 40 Standard 90 Degree Elbow delivers professional-grade conduit fitting performance for rigid non-metallic electrical installations. This PVC Schedule 40 elbow features precision-molded construction with 1.9 inch outside diameter designed for electrical contractors and installers, providing the reliable performance and UL Listed safety that electrical professionals demand.
Professional Features & Benefits
Superior Construction Quality
- Schedule 40 PVC Construction - Heavy-duty wall thickness provides maximum protection for electrical wiring systems
- Precision 90 Degree Angle - Accurate bend radius ensures proper conduit alignment and professional installations
- 1.9 Inch Outside Diameter - Standard sizing for seamless integration with 1-1/2 inch conduit systems
- Gray Color Coding - Industry standard color identification for PVC electrical conduit systems
Safety & Code Compliance
- UL Listed Certification - Meets UL E323335 standards for electrical safety and code compliance
- Non-Metallic Design - Eliminates corrosion concerns and provides superior moisture resistance
- Fire-Resistant PVC Material - Self-extinguishing properties enhance electrical system safety
Technical Specifications
Nominal Size: 1-1/2 inch, Outside Diameter: 1.9 inches, Material: Schedule 40 PVC, Color: Gray, Standards: UL E323335 Listed, Product Type: Rigid Non-Metallic Conduit Elbow, Selling Unit: Each, Temperature Rating: Standard electrical application range
Installation Process
- Measure and cut conduit runs to proper length ensuring square, clean cuts for optimal fitting connection
- Test fit the elbow with conduit sections to verify proper alignment and 90-degree directional change
- Apply appropriate PVC primer to both conduit end and elbow socket for reliable bonding
- Apply PVC cement evenly to primed surfaces and immediately insert conduit into elbow socket
- Hold connection firmly for 30 seconds ensuring complete seating and proper joint formation
- Allow cement to cure according to manufacturer specifications before wire pulling operations
Professional Applications
Ideal for:
- Commercial Electrical Systems - Office buildings, retail spaces, and industrial facility conduit installations
- Residential Wiring Projects - Home electrical systems, basement wiring, and garage electrical installations
- Underground Conduit Runs - Below-grade electrical distribution systems and outdoor wiring protection
- Concrete Pour Applications - Embedded conduit systems in foundations, slabs, and structural concrete
- Wet Location Installations - Areas subject to moisture where corrosion resistance is critical
- Industrial Electrical Distribution - Manufacturing facilities, warehouses, and processing plant wiring systems
- Municipal Infrastructure - Street lighting, traffic control systems, and public facility electrical installations
- Agricultural Electrical Systems - Barn wiring, irrigation control systems, and farm building electrical distribution
PVC Schedule 40 Advantage
Carlon PVC Schedule 40 elbows provide superior performance in electrical conduit systems through corrosion-resistant construction, lightweight installation benefits, and long-term durability. The non-metallic design eliminates galvanic corrosion concerns while providing excellent chemical resistance and dimensional stability across temperature variations, making it ideal for both indoor and outdoor electrical applications.
Why Choose Carlon Quality?
Carlon demonstrates unwavering commitment to UL Listed safety standards, reliable performance engineering, and comprehensive code compliance solutions for electrical professionals. Every Schedule 40 PVC elbow undergoes rigorous quality testing to ensure consistent dimensional accuracy, superior joint integrity, and long-term system reliability that electrical contractors trust for critical installations.
Manufacturer Resources
Product Specs
- Color:
- Gray
- Material:
- PVC
- Nominal Size:
- 1-1/2 in
- Outside Diameter:
- 1.9 in
- Product Name:
- FITTINGS OF PLASTIC FOR TUBES, ETC.
- Product Type:
- Rigid Non-Metallic Conduit-Schedule 40 Elbows
- Selling Unit Of Measure:
- each
- Size:
- 15.11 Inches
- Standards:
- UL E323335
- Product Group:
- Conduit Systems
- Department:
- Electrical
- Product Sub group:
- Elbows
- Product Type2:
- Pvc Schedule 40 Elbows
