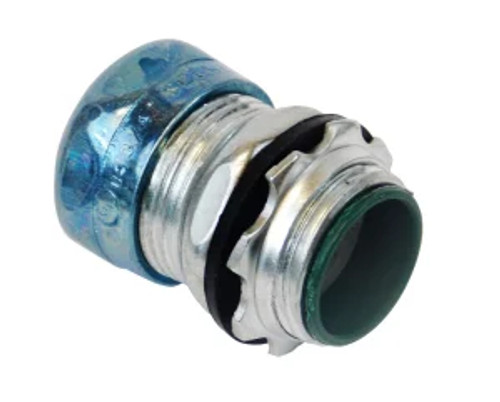

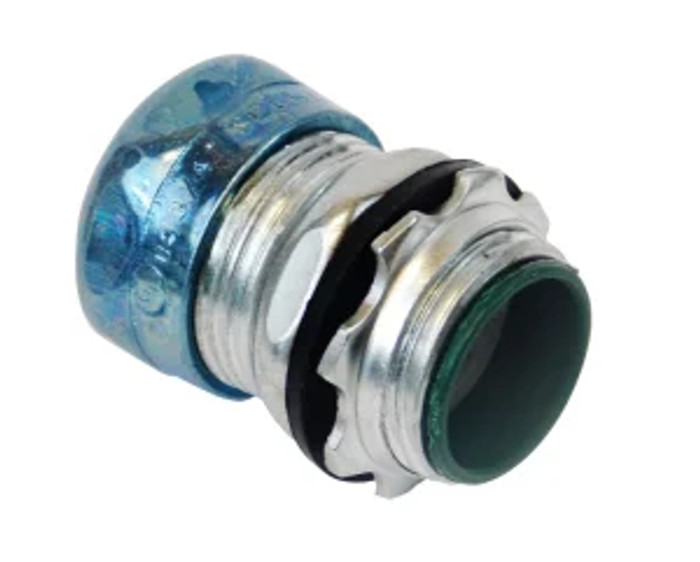

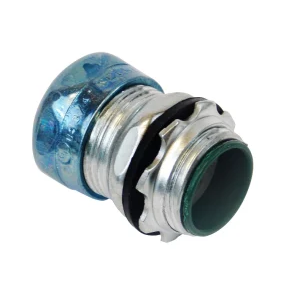

1-1/4" Raintight Compression Connector
Features
- Zinc plated to avoid corrosion
- Raintight for outdoor and wet location usage
- Blue nut eases identification
Manufacturer Resources
Product Specs
- Department:
- Electrical
Allied Tube & Conduit CCR-125KON – Frequently Asked Questions
1) Can the CCR-125KON compression connector be used outdoors or in a wet location?
Yes. The Allied Tube & Conduit CCR-125KON is a raintight compression connector, rated for outdoor and wet location use. The compression ring and gland nut seal the EMT where it enters the box, so it holds up in exterior runs, rooftop work, and damp equipment rooms rather than dry interior only.
2) What size conduit does the CCR-125KON connector take?
It is a 1-1/4 inch compression connector, so it terminates 1-1/4 inch EMT. Smaller or larger trade sizes need the matching connector; the compression ring will not seal on a different diameter tubing.
3) Do I need to thread or glue the conduit to use this connector?
No. This is a compression type fitting for EMT, which is unthreaded. You cut the tube square, ream it, slide it into the connector body, and tighten the gland nut down on the compression ring to grip and seal. No threading, no cement, no set screw.
4) Is the CCR-125KON corrosion resistant?
The body is zinc plated, which is what protects it from corrosion in the wet and outdoor locations it is rated for. That plating is the standard finish for steel EMT fittings on exterior and damp-location work.
5) Should I use a compression connector or a set screw connector for EMT?
Use compression, like the CCR-125KON, anywhere the run is outdoors, on a roof, or in a damp or wet location, because it is the type that is raintight. Set screw connectors are the cheaper choice and are fine for dry interior work only. If the conduit ever sees weather, the compression fitting is the one that keeps water out of the enclosure.
6) Why does this Allied connector have a blue nut?
The blue gland nut is an identification feature. On a job where raintight compression fittings and standard set screw or non-raintight fittings are in the same bin or the same wall, the blue nut lets an inspector or electrician tell at a glance that the wet-location fitting was used. Handy for property maintenance crews standardizing on one fitting across a building.
7) How do I order the exact Allied raintight connector in 1-1/4 inch?
Order by manufacturer part number CCR-125KON from Allied Tube & Conduit (Atkore). That number covers the 1-1/4 inch raintight compression connector with the zinc plated body and blue nut.
