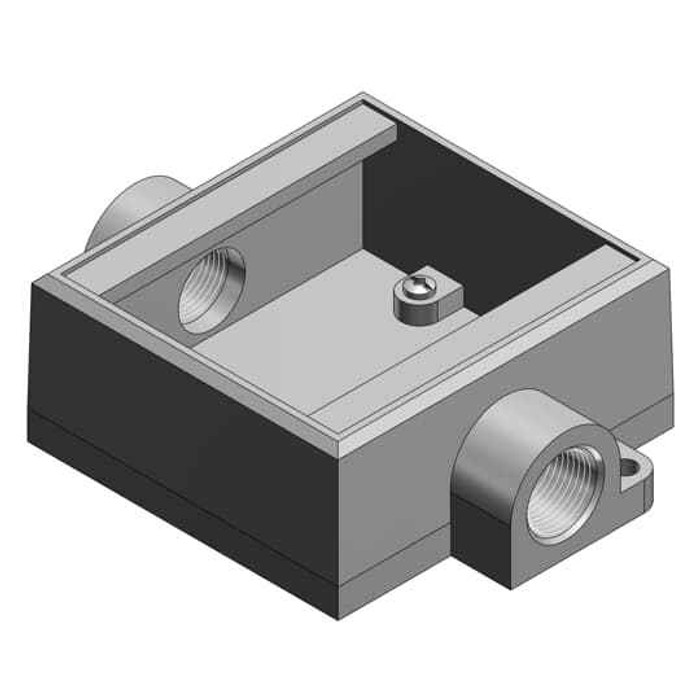

1 , 2G-SHALLOW BOX, IRON, THRU-FEED
Manufacturer Resources
Product Specs
- Number Of Batteries:
- 0
- Product Group:
- Electrical Boxes
- Product Type:
- 2 Gang, Shallow Device Box, Thru-Feed
- Department:
- Electrical
- Product Subgroup:
- Electrical Boxes
- Product Material:
- Iron
Thomas & Betts FSC32-TB – Frequently Asked Questions
1) Is the Thomas & Betts FSC32-TB box a thru-feed or dead-end box?
The FSC32-TB is a thru-feed box, meaning it has hubs on opposite ends so conduit can pass straight through and continue on to the next device. If your run terminates at the box, you want a dead-end (FS-type) body instead. Thru-feed bodies (the FSC designation) are what you use mid-run when the circuit keeps going.
2) Is the FSC32-TB a shallow or deep box?
Shallow. The FSC32-TB is the shallow-depth body (FS style) rather than the deeper FD style. Shallow bodies are the usual pick where the box sits against a wall, column, or machine frame and projection matters; if you are stacking several conductors or large devices and need more wiring room, step up to a deep body.
3) How many devices will the FSC32-TB hold?
Two. It is a 2-gang device box, so it will take a pair of standard wiring devices such as two switches, two receptacles, or one of each, with the appropriate weatherproof or blank FS/FD cover.
4) What is the Thomas & Betts FSC32-TB made of, and can it go outdoors?
The body is iron, which is the standard cast material for FS/FSC conduit outlet bodies used in exposed and damp industrial locations. Pair it with a gasketed weatherproof cover to keep the enclosure sealed; the box alone is only half the assembly.
5) Does the FSC32-TB come with a cover?
No cover is included with the FSC32-TB body. You order the 2-gang FS-style cover separately to match the devices going in, whether that is a duplex receptacle cover, a switch cover, or a blank.
6) What part number should I give my supplier for the Thomas & Betts 2-gang shallow thru-feed box?
Ask for Thomas & Betts FSC32-TB. That designation covers the 2-gang shallow iron thru-feed device box; the FSC prefix is the thru-feed body and the 32 identifies the two-gang shallow configuration.
