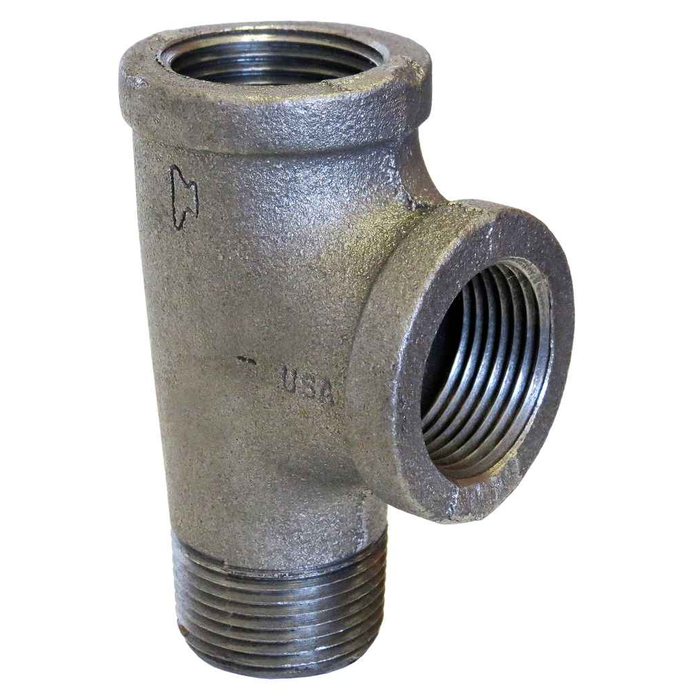

1 BLK MI STREET TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- MPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 1
- Size 2:
- 1
- Size 3:
- 1
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.96 lbs
ASC Engineered Solutions 310062401 – Frequently Asked Questions
1) Will a black malleable iron street tee work on a natural gas line?
Black malleable iron with NPT threads is the standard fitting for black iron gas piping, and this 1 inch street tee is black finish malleable iron to ASTM A-197 with threads cut to ASME B1.20.1 (NPT). It is not galvanized, so keep it off potable water. Always pipe gas to your local code and inspector's requirements.
2) Is this ASC street tee 1 inch on all three openings?
All three ports are 1 inch, so it is a straight run tee with no reducing branch. Two of them take 1 inch male pipe thread coming in, and the male end threads into a 1 inch female port.
3) Will this tee interchange with another brand's 1 inch black malleable street tee?
It should. The fitting is built to ASME B16.3 for dimensions and to ASME B1.20.1 for threads, which are the same standards other malleable iron fitting makers build to, so center-to-end and thread engagement match a conforming 1 inch Class 150 black street tee from any source.
4) Do I need thread sealant with this street tee, or is it included?
The tee ships as the fitting only. NPT threads on it are tapered per ASME B1.20.1 and seal on the thread flanks, so you still need pipe dope or PTFE tape rated for the service, gas rated sealant on fuel gas lines. Nothing is supplied with the fitting.
