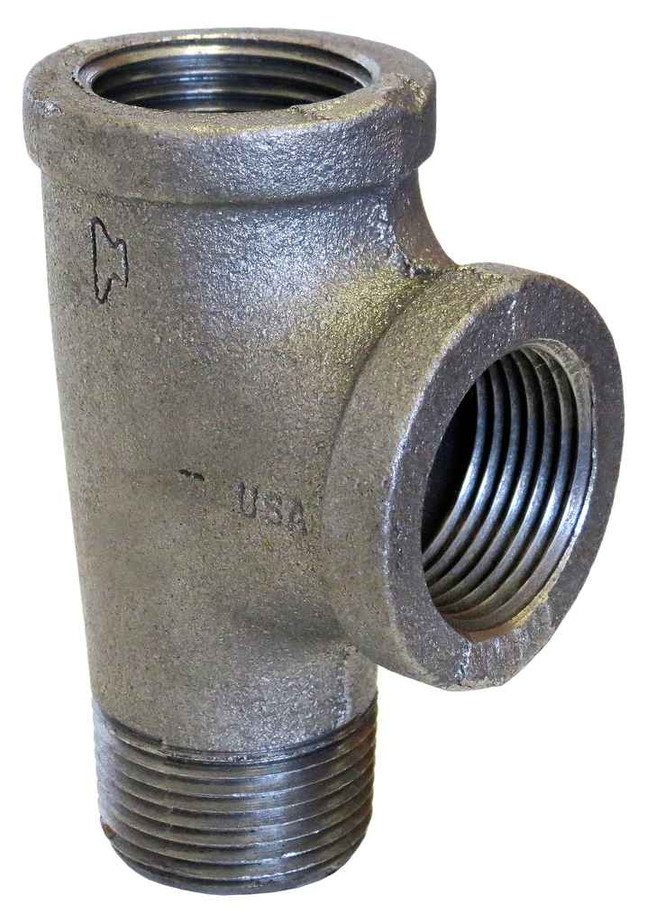

2 BLK MI STREET TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- MPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 2
- Size 3:
- 2
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 3.16 lbs
ASC Engineered Solutions 310063003 – Frequently Asked Questions
1) Is this a 2 inch tee on all three openings?
Yes, all three openings are 2 inch, so it is a straight (non-reducing) tee. Two of them take 2 inch male pipe thread coming in, and the third is a 2 inch male thread that screws into a female port.
2) Can I use a black malleable iron street tee on a fire sprinkler line?
It is UL/FM listed, which is the approval fire protection inspectors look for on threaded fittings in sprinkler piping. It is standard weight malleable iron to ASTM A-197 with pressure ratings per ASME B16.3. Confirm the pressure class on your drawing matches standard weight before you use it.
3) Is black iron the right choice, or do I need galvanized for this job?
Black finish malleable iron is for dry service: natural gas, fuel oil, air, and fire sprinkler piping that is not wet-exposed. For potable water or anywhere the pipe sees moisture or outdoor exposure, use the galvanized version instead. Black fittings will rust in wet service.
4) Is this standard weight or extra heavy?
Standard weight (Class 150). It is rated per ASME B16.3 and made to ASTM A-197 malleable iron. If your spec calls for Class 300 extra heavy, this is not the fitting for it.
5) Does this 2 inch street tee meet ASME B16.3 dimensions for spec work?
Yes. Dimensions are to ASME B16.3, which is the dimensional standard for threaded malleable iron fittings, so center-to-end lengths match any other B16.3 Class 150 fitting and it drops into a layout built to that standard. Material is ASTM A-197 and threads are ASME B1.20.1.
6) How much does a 2 inch black malleable iron street tee weigh for freight estimating?
3.16 lbs each. Worth knowing if you are pricing out a pallet of fittings or checking hanger loading on a run with several of them.
