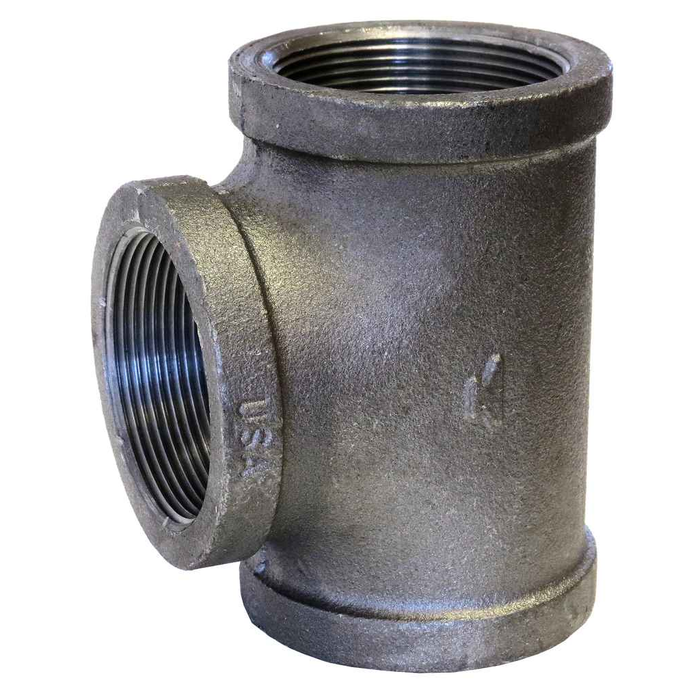

2 BLK MI TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 2
- Size 3:
- 2
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 2.52 lbs
ASC Engineered Solutions 310030804 – Frequently Asked Questions
1) Are all three openings on the ASC 2 inch black malleable iron tee the same size?
Yes, it's a straight 2 inch tee. All three outlets are 2 inch female pipe thread (FPT), so run and branch are the same size. If you need to step the branch down, you'd want a reducing tee or a 2 inch tee plus a bushing in the branch.
2) Can I use this black malleable iron tee on a fire sprinkler line?
It's UL/FM recognized, which is what an AHJ looks for on threaded fittings in a wet sprinkler system. It's standard weight (STD) malleable iron to ASTM A-197, dimensioned and pressure rated to ASME B16.3. Match the pressure class on your sprinkler drawings before you commit.
3) Is a black malleable iron tee OK for potable water?
No. Black malleable iron is for gas, fire protection, air, and closed-loop hydronic service. The black finish here has no protective coating against wet potable conditions, and black iron is not the material you run drinking water through. For potable water use copper, CPVC, PEX, or galvanized as your local code allows.
4) Do I need thread sealant with this fitting?
Yes, plan on it. The ends are tapered NPT per ASME B1.20.1, and tapered pipe thread relies on a sealant or PTFE tape to seal the joint. On gas service use a sealant rated for the fuel. Nothing is supplied with the fitting.
5) How heavy is a 2 inch black malleable iron tee for shipping and hanger sizing?
2.52 lbs each. Worth knowing if you're stacking several on a run between hangers or figuring pallet weight on a large fitting order.
6) What is the ASC part number for the 2 inch black malleable iron tee?
MPN 310030804 from ASC Engineered Solutions. It's the 2 x 2 x 2 straight tee, black finish, standard weight malleable iron.
