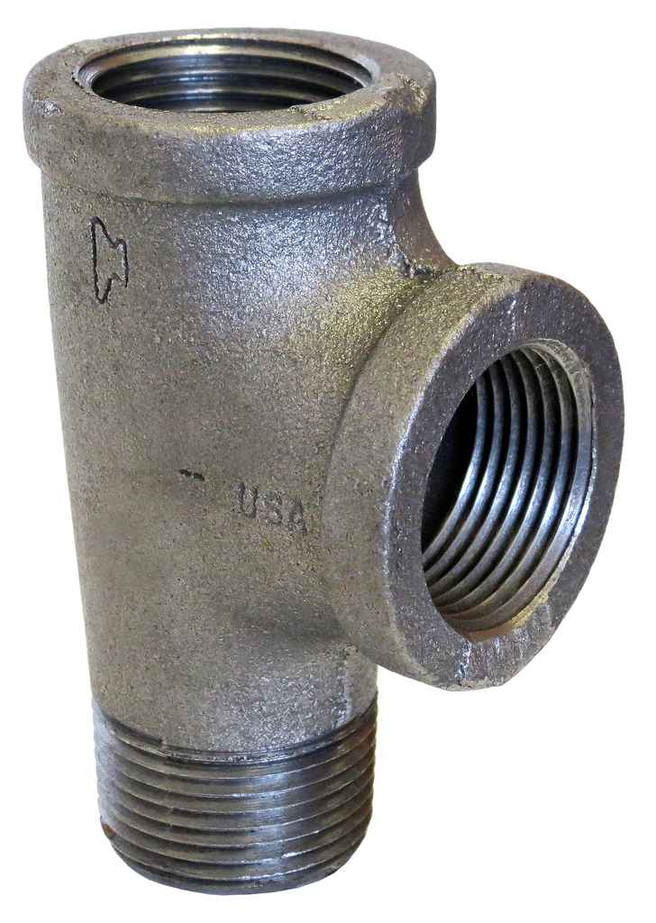

3/8 BLK MI STREET TEE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- MPT
- End Conn Size 3:
- FPT
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 0.375
- Size 2:
- 0.375
- Size 3:
- 0.375
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Pipe Fittings
- Product Subgroup:
- Tees
- Product Type:
- Tee
- Product Finish:
- Black
- Product Material:
- Malleable Iron
- Product Weight:
- 0.24 lbs
ASC Engineered Solutions 310061809 – Frequently Asked Questions
1) Will a 3/8 black street tee thread onto standard 3/8 inch black pipe?
Yes. All three outlets are 3/8 inch and the threads are cut to ASME B1.20.1, which is standard NPT taper pipe thread. Any 3/8 inch NPT black pipe nipple or fitting will mate with it. Use pipe dope or PTFE tape on the taper threads as usual.
2) Can I use a black malleable iron tee on a potable water line?
No. Black malleable iron is for gas, fire protection, air, and non-potable service. The black finish is a mill coating, not a corrosion barrier for water, and it will rust in a wet potable line. For potable water use brass, copper, or galvanized fittings instead.
3) Does this fitting meet the spec if my drawing calls out ASME B16.3 and ASTM A197?
It does. The tee is dimensioned and pressure rated to ASME B16.3 and the iron is ASTM A-197 malleable iron, with threads to ASME B1.20.1. That is the standard callout set an MRO or institutional spec uses for black malleable threaded fittings, so it drops straight into that specification.
4) Which outlet on a street tee is the male one, the run or the branch?
On this ASC tee the end connections read FPT, MPT, FPT in sequence, so the male thread sits on one end of the run and the remaining run outlet and the branch are both female. Plan the assembly so the male end goes into the existing female fitting and both pipe legs land on the female outlets.
5) What is the ASC part number and weight for the 3/8 black street tee?
Order it as ASC Engineered Solutions model 310061809. Each fitting weighs 0.24 lbs, which is worth knowing if you are pricing freight on a bulk order of small fittings for a maintenance stock room.
